Basic Description:

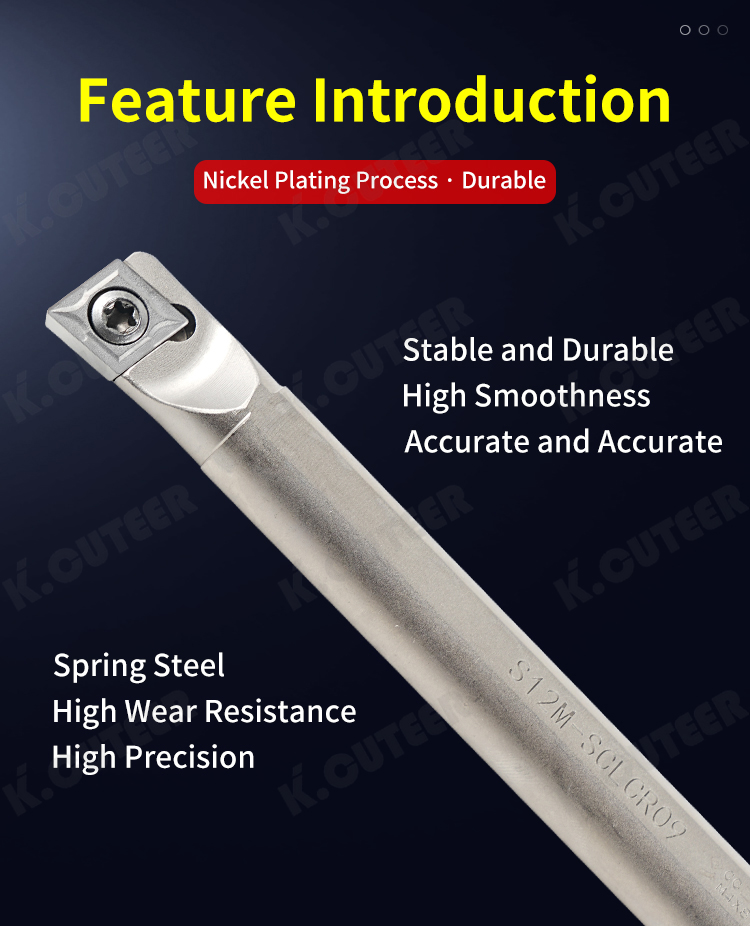

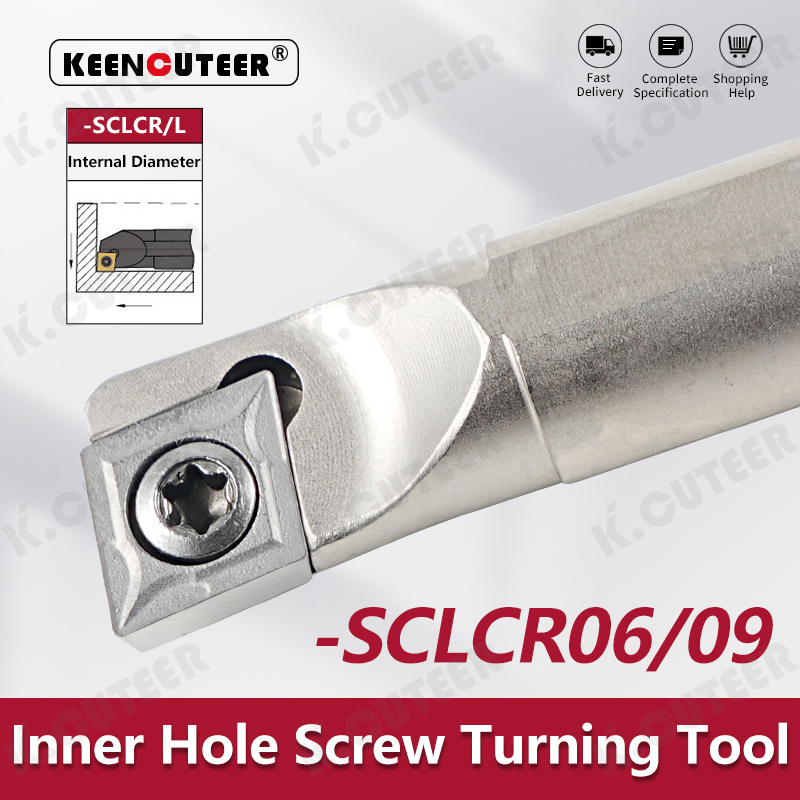

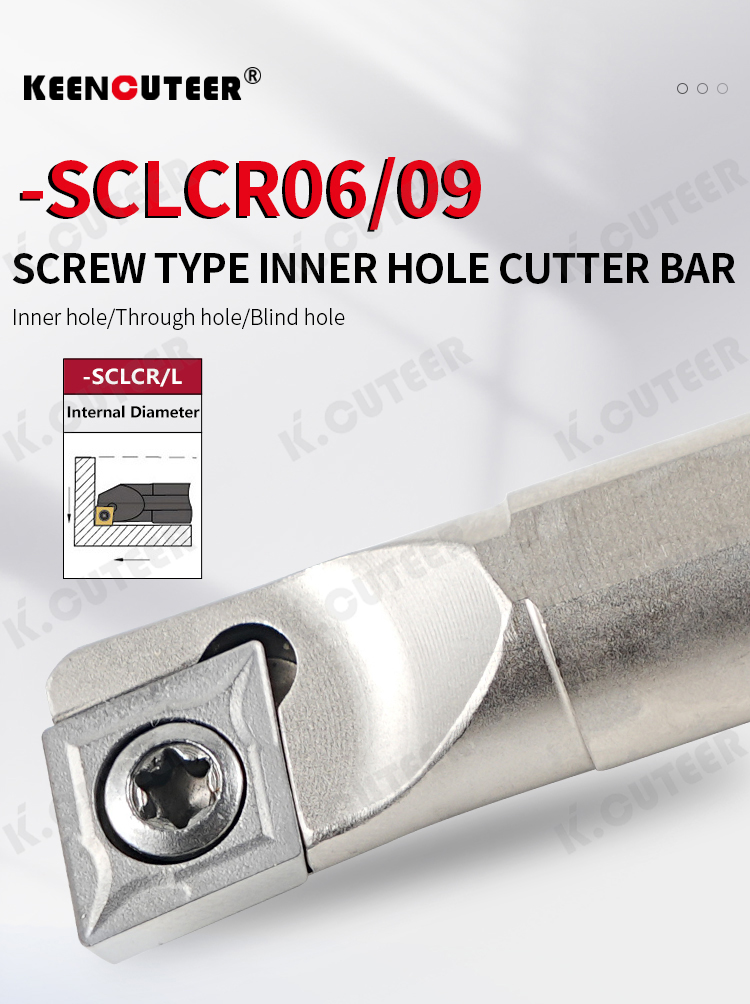

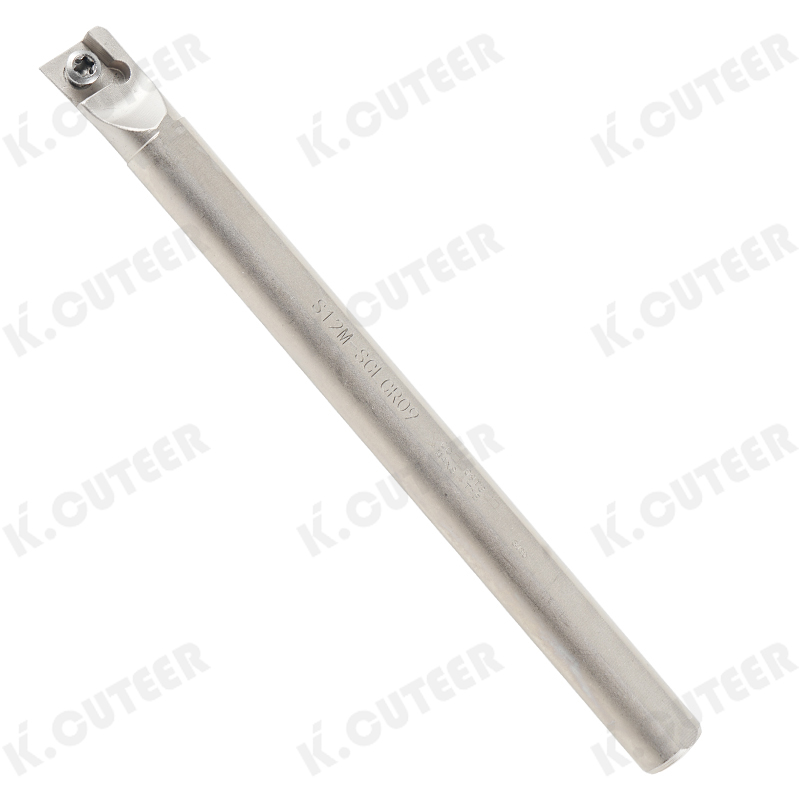

Function: This tool is an internal boring bar designed for precision machining operations inside holes or cylinders.

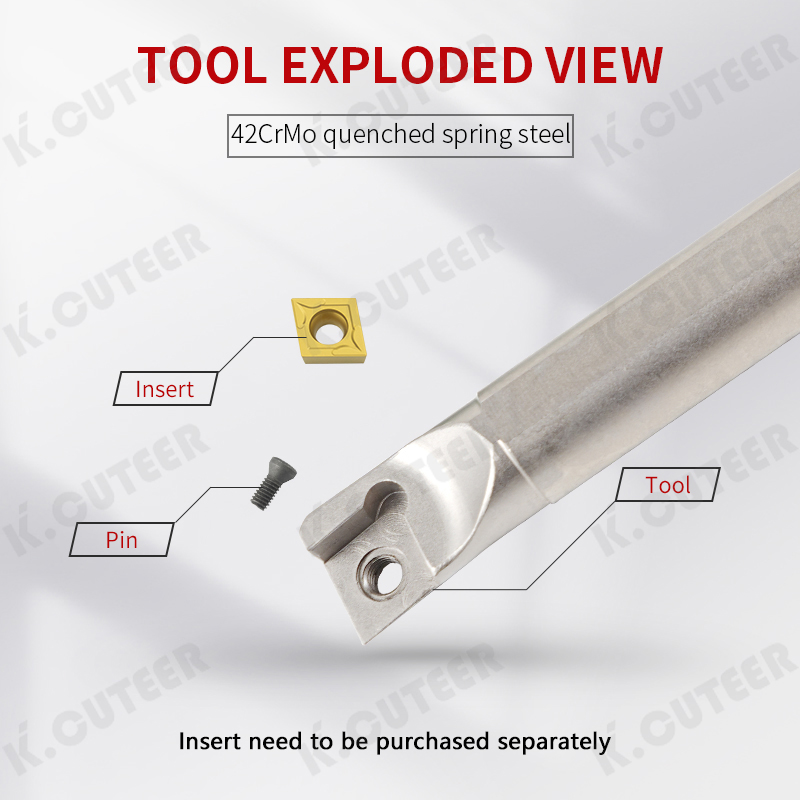

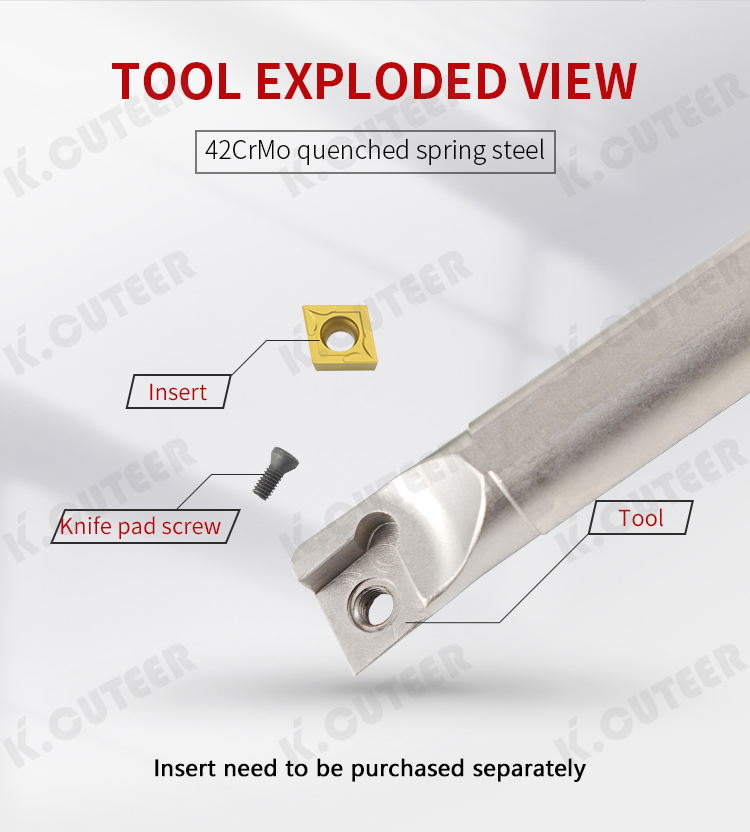

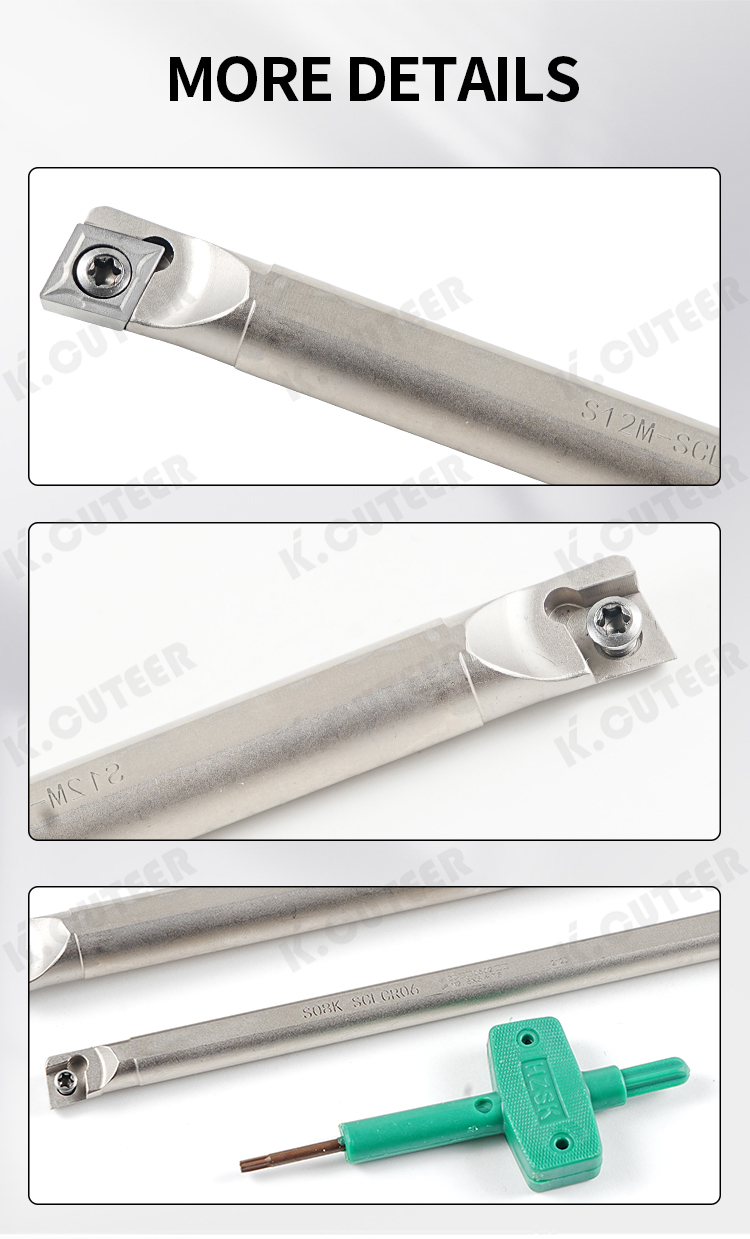

Clamping Mechanism: It features a screw clamping system to securely hold the cutting insert in place.

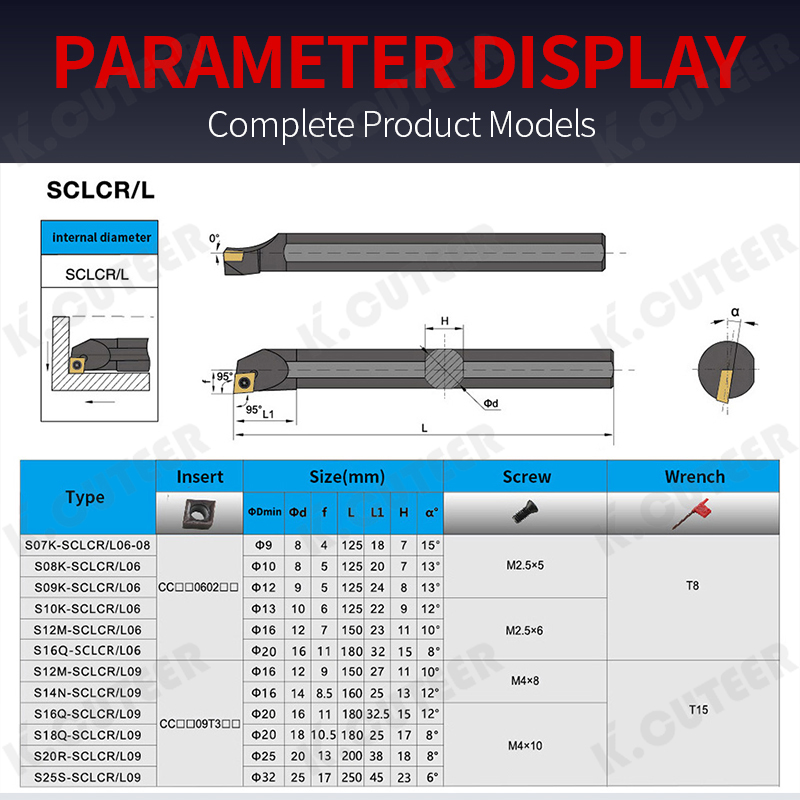

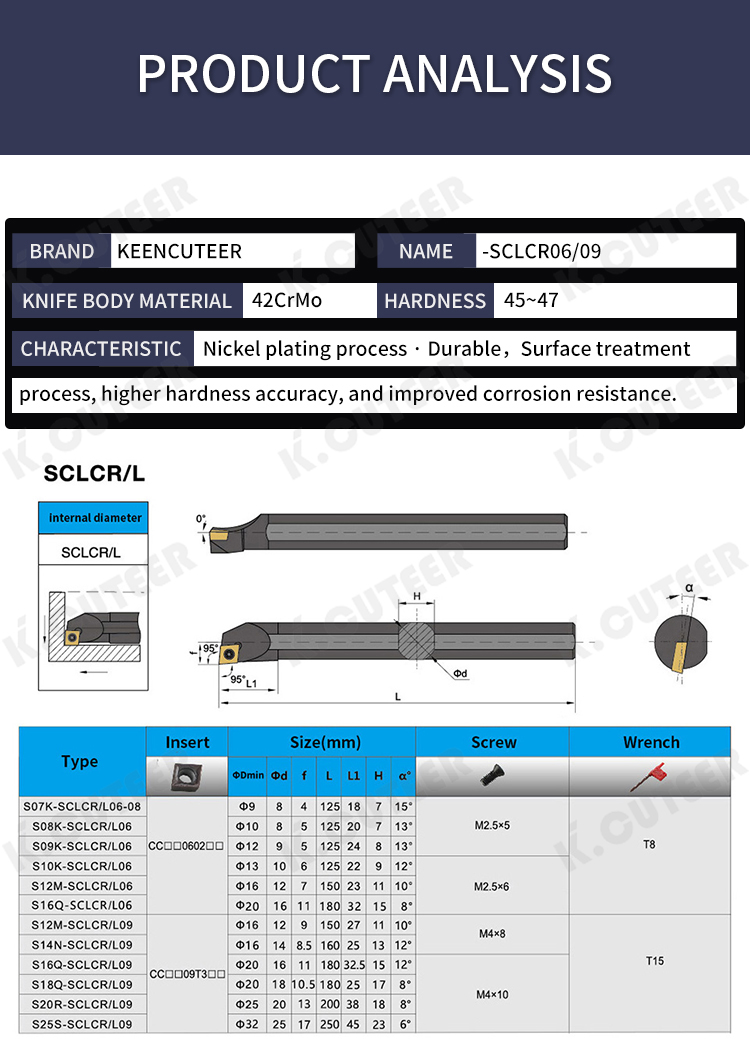

Cutting Insert: This holder is designed to use indexable inserts with a rhombic 80-degree shape and a 6.35mm inscribed circle diameter, corresponding to the CCxx0602 style (e.g., CCMT0602, CCGT0602).
Application: Suitable for internal turning operations where precise dimensional control and good surface finish are required.

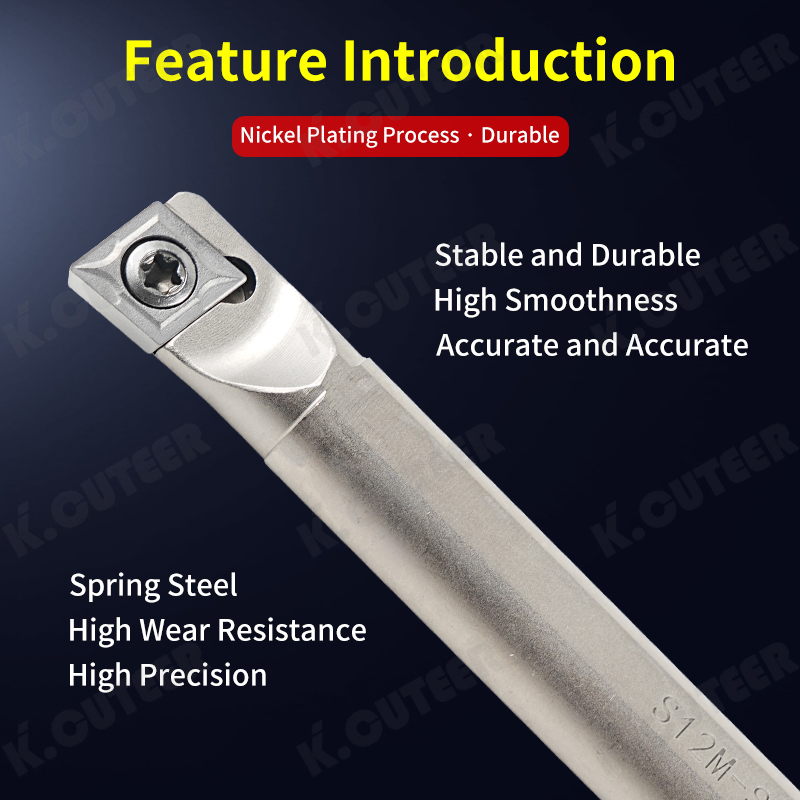

Free Forging ProcessUtilizing impact force, the metal freely deforms in all directions between the upper and lower anvil surfaces, eliminating defects such as shrinkage cavities, looseness, and gas holes, which results in a tool blank with improved mechanical properties.
1060 Degree High-Temperature QuenchingA high-temperature heat treatment process that uses materials such as water and oil for low-temperature rapid cooling, greatly enhancing the strength, hardness, wear resistance, fatigue strength, and toughness of the tools through high-temperature tempering, while providing a bright surface.
