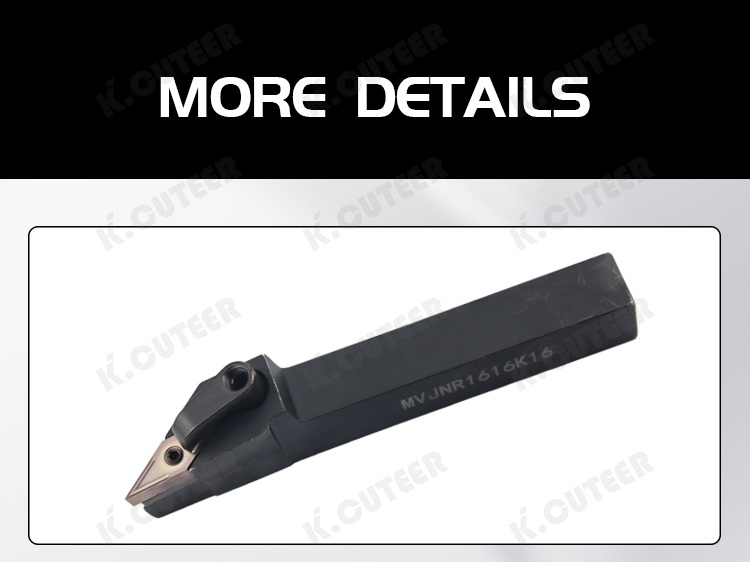

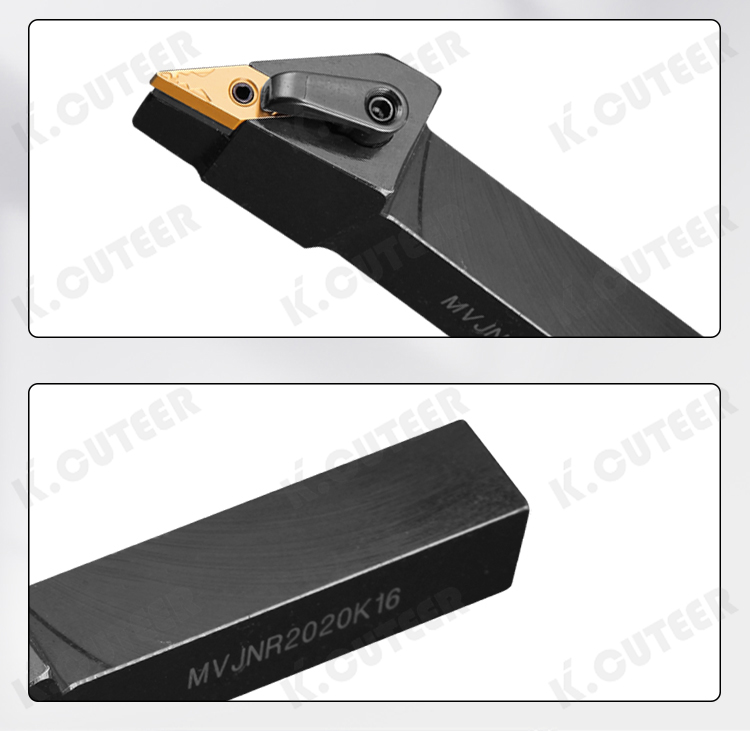

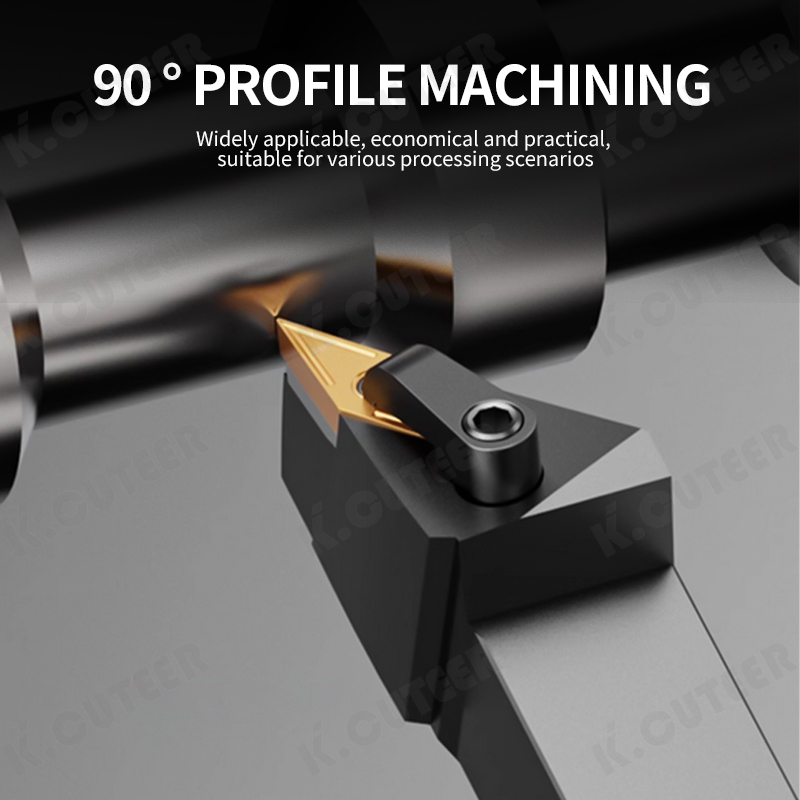

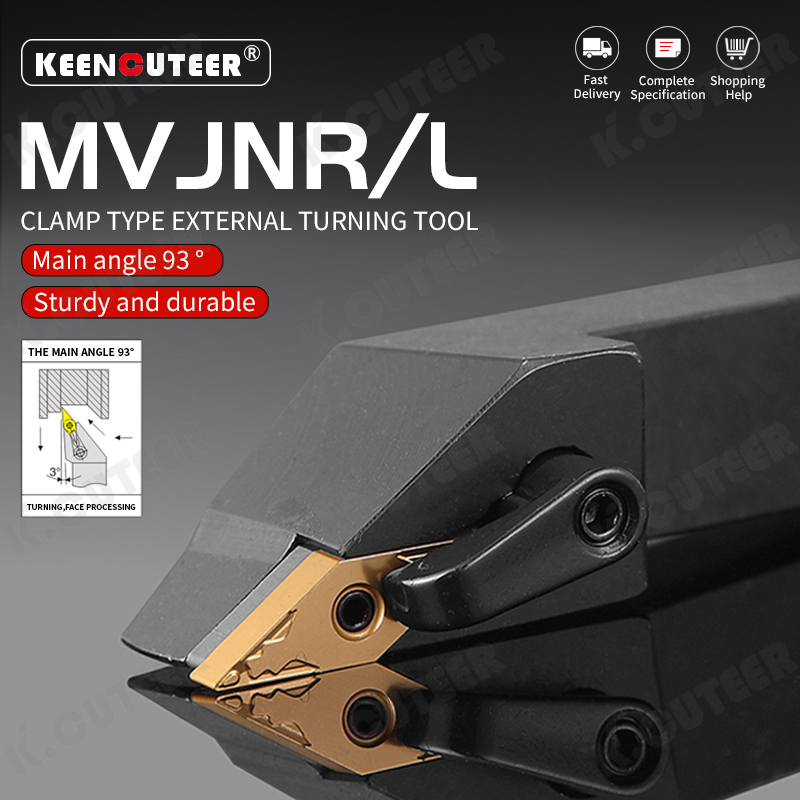

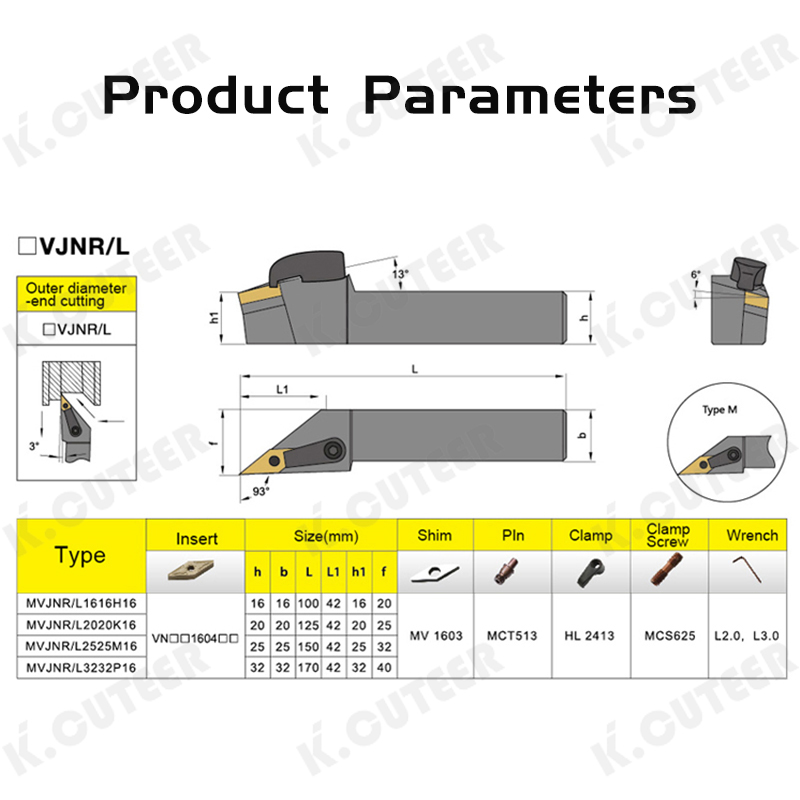

The MVJNR is a metric, clamp-style indexable tool holder that complies with international standards such as DIN ISO 5610. Its primary application is for external turning, facing, and profiling.
Key Features:

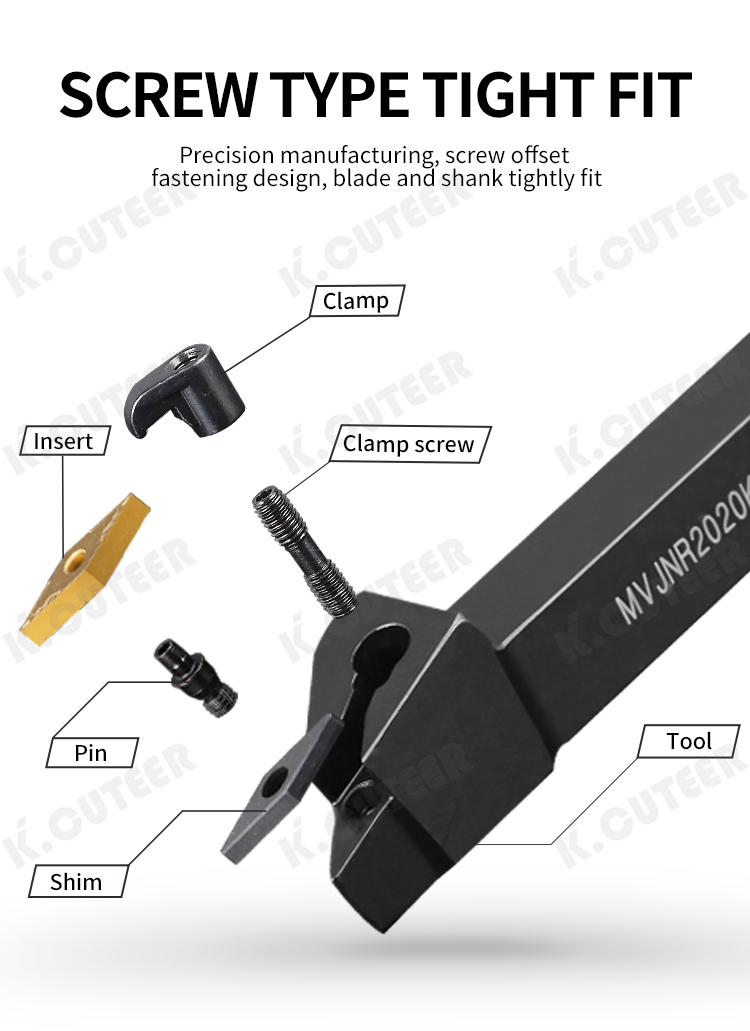

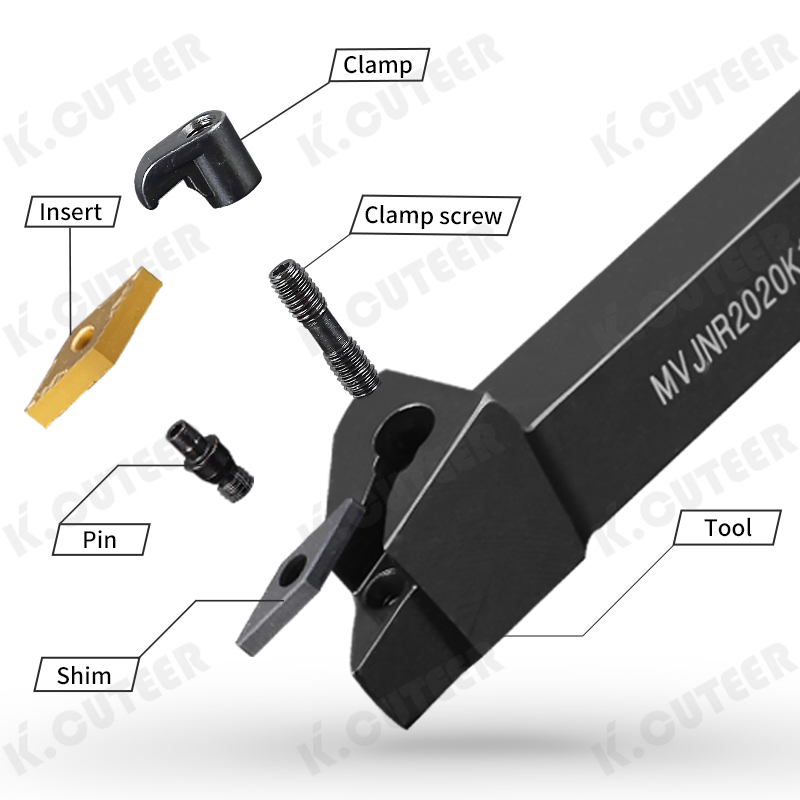

Clamping System: Utilizes a clamp and lock pin mechanism for secure insert retention and easy indexing.

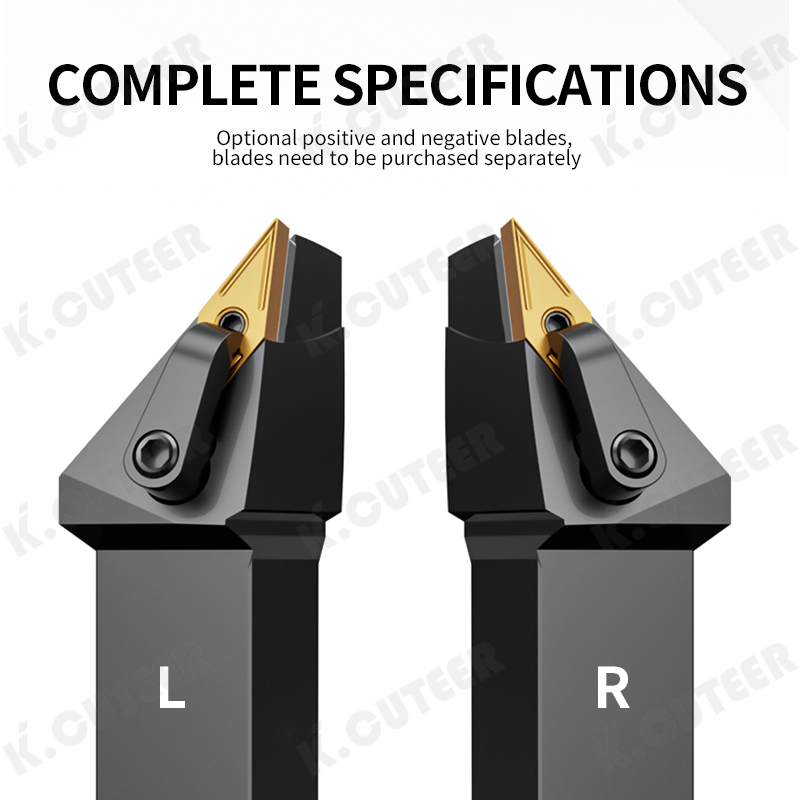

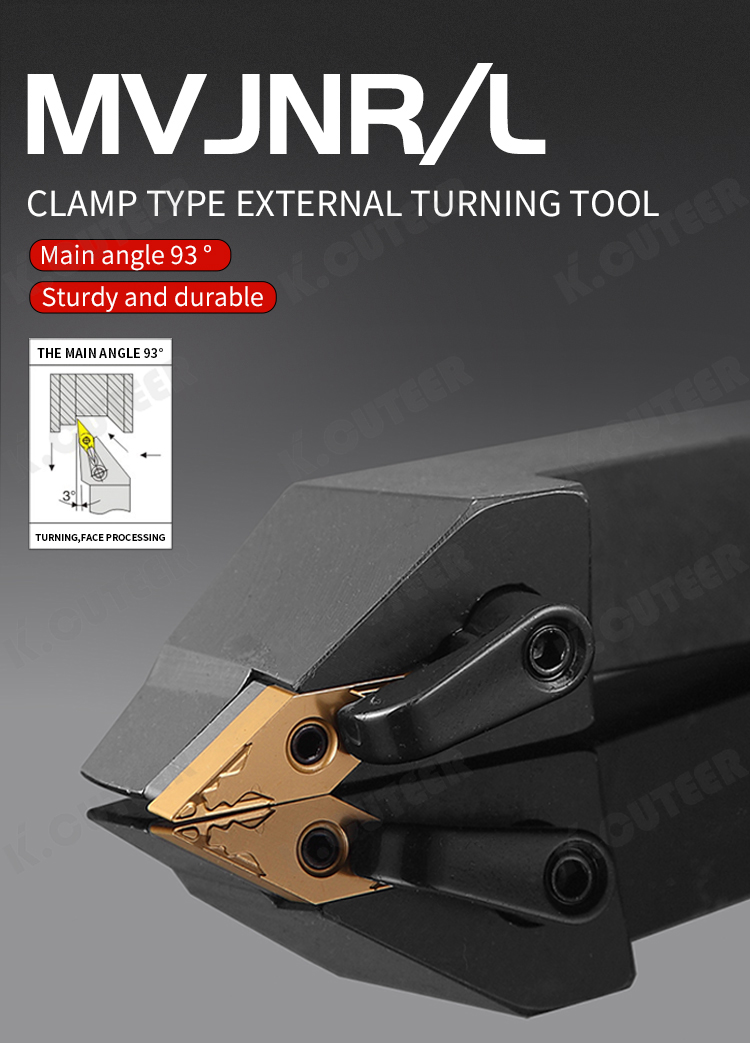

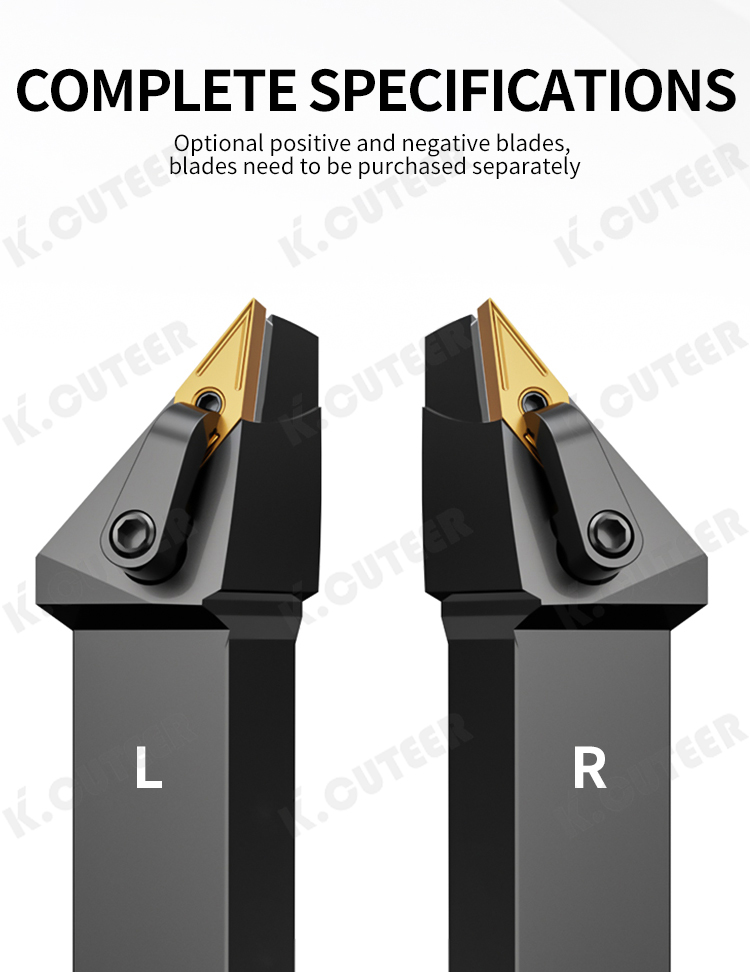

Geometry: Features a 93° lead angle and is configured for right-hand cutting.

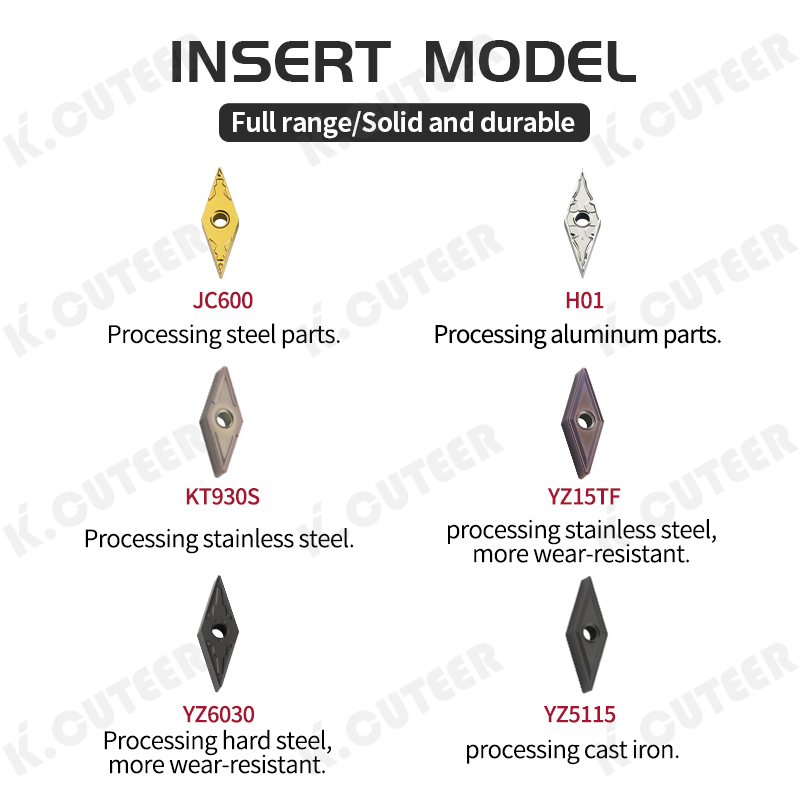

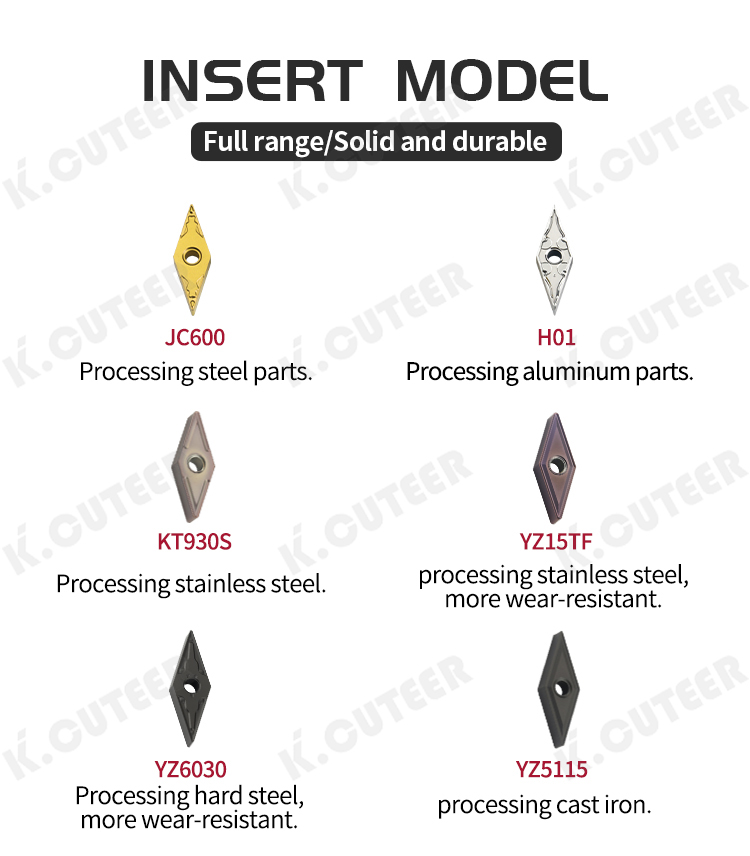

Insert Compatibility: Designed to hold VNMG 35° diamond-shaped inserts. Common insert sizes are denoted by codes like VNMG332 or VNMG432, with the last digit indicating the nose radius.
Design Standardization: As an ISO standard tool holder, it ensures compatibility and repeatability across different manufacturing environments.
