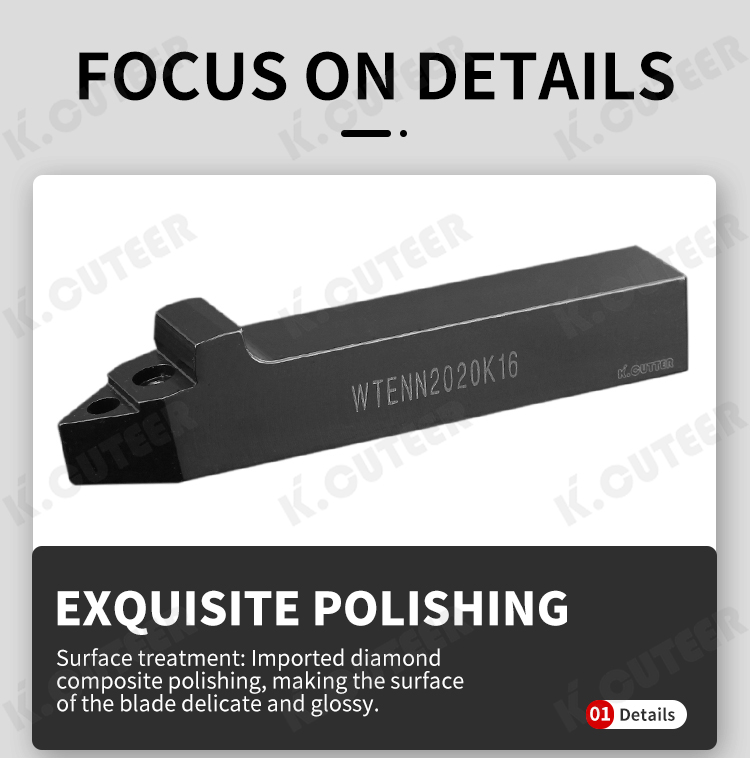

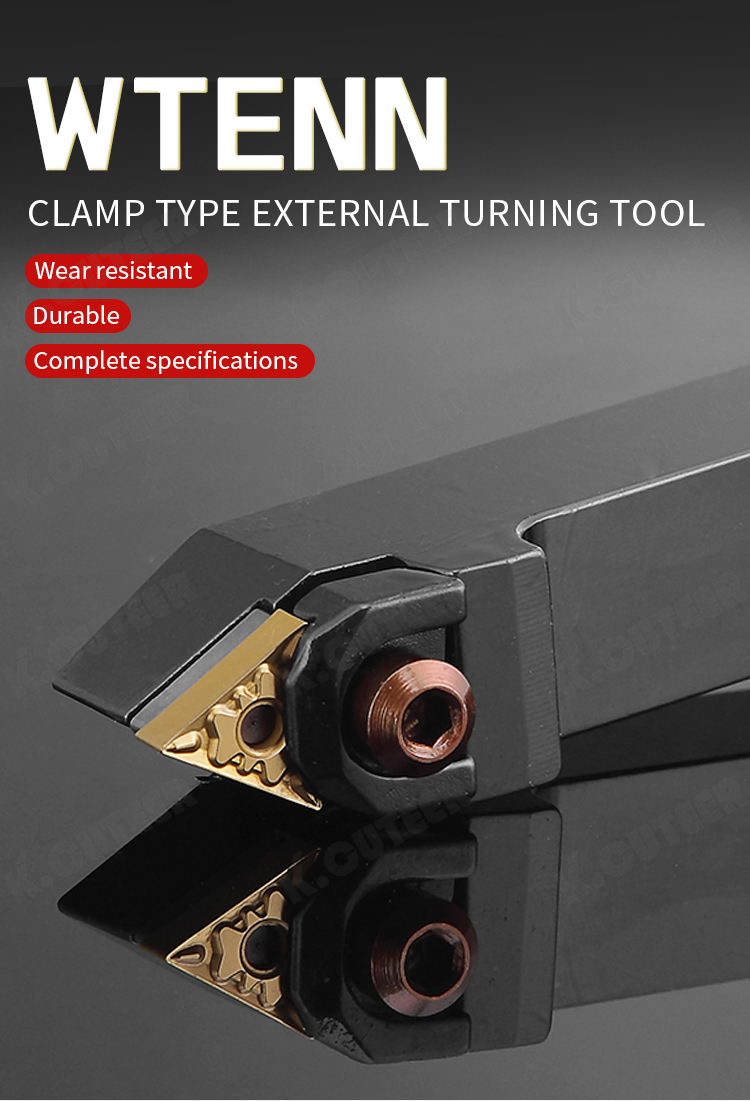

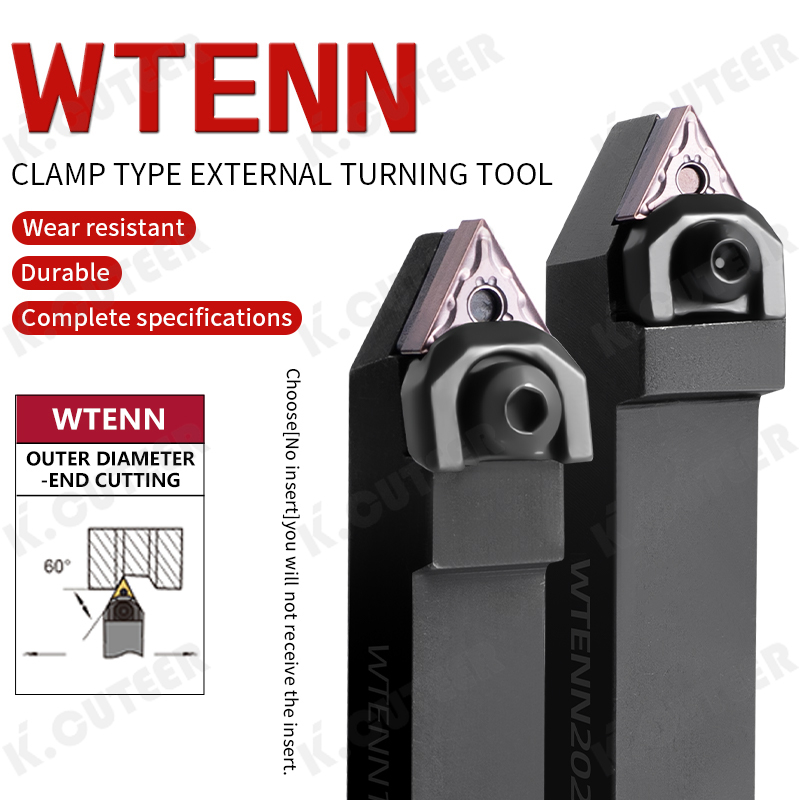

WTENN Versatile CNC Tool Holder for Efficient External Turning Operations

The WTENN series is a standard clamp-style tool holder designed for external turning applications. Its defining feature is a 60° included angle, which provides a good balance for both facing and longitudinal turning.

This tool holder utilizes a clamp mechanism to secure indexable inserts, facilitating quick and easy indexing for efficient machining. It is commonly paired with negative rake inserts (as indicated by its classification under Negative Insert type).

Availability:

Quantity:



Inquire Add to Basket

Tool Holder Clamp turning tools CNC Turning Tool Holder CNC TOOLS cnc tool holder tool holder cnc cnc lathe tool holder lathe tool holder sets Milling Tools Carbide

Product Description

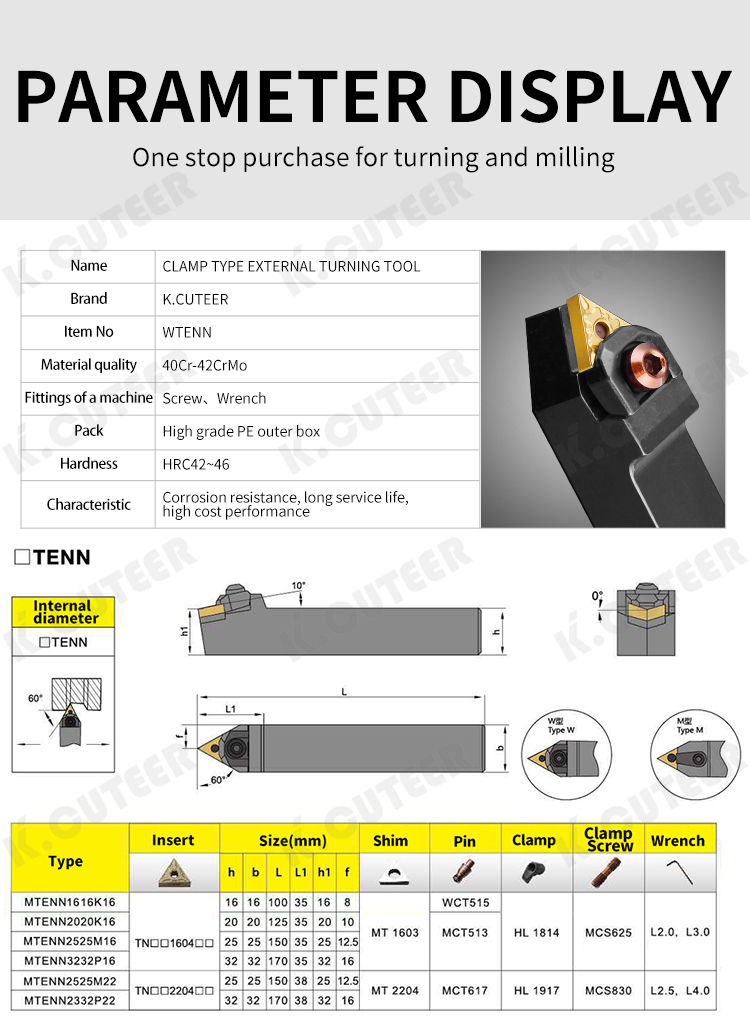

The WTENN is a metric, clamp-style indexable tool holder. The "60°" in its name refers to the included angle of the tool tip, which results in a 60° approach angle at the workpiece. This geometry is particularly effective for machining shoulders and performing facing cuts.

Key Features & Compatibility:

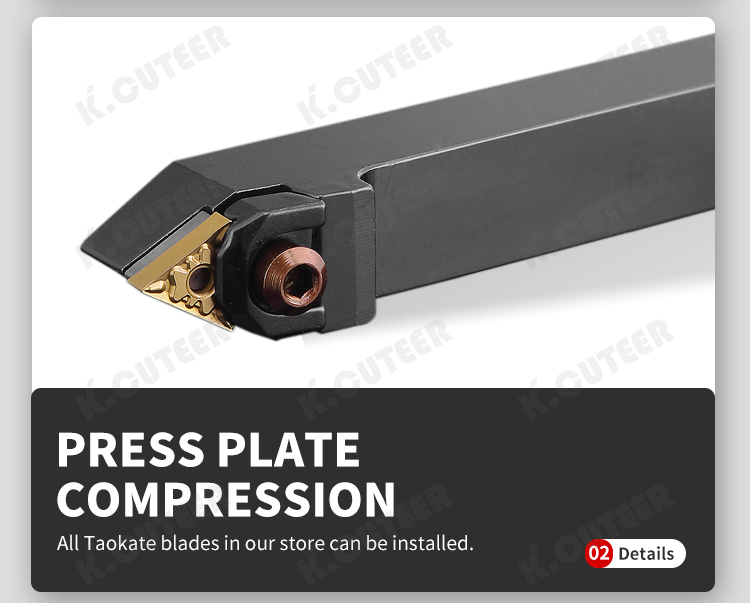

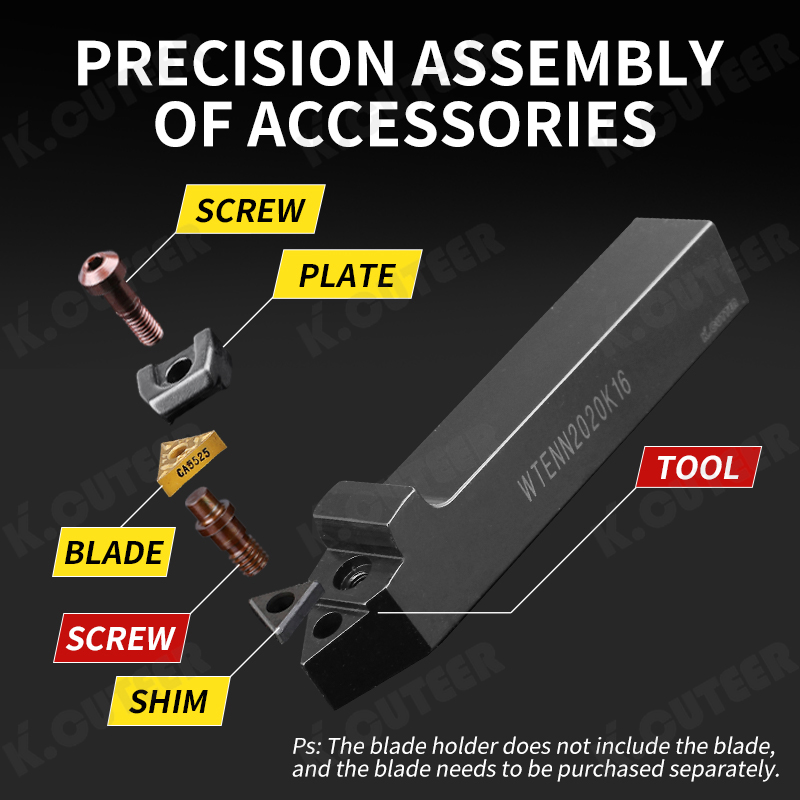

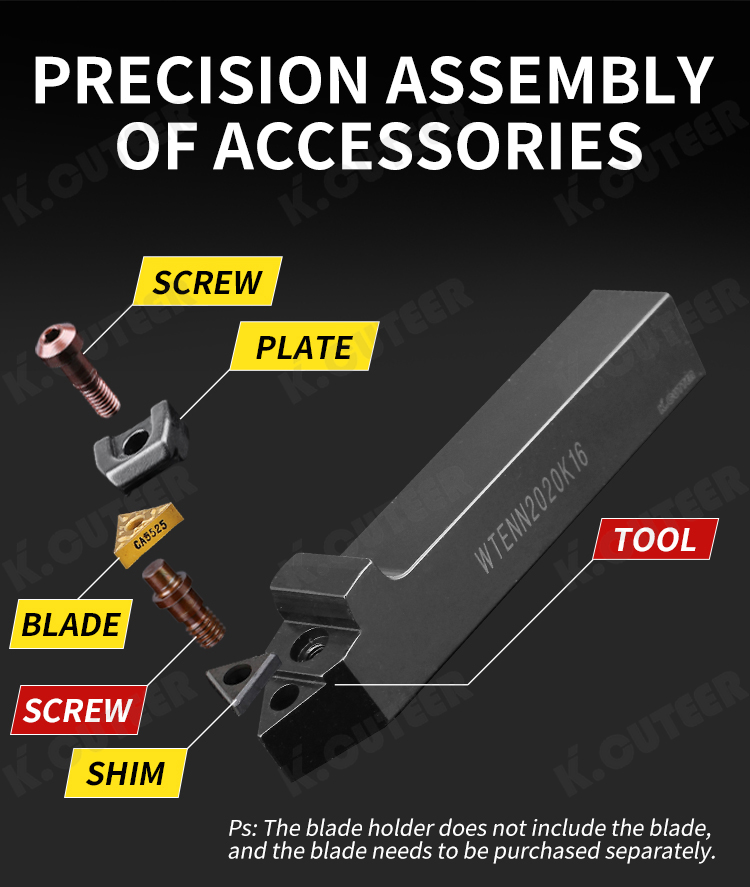

Clamping System: Employs a robust clamp (e.g., models like CS-LSP3) and lock pin system for secure insert retention and easy indexing.
Insert Compatibility: It is commonly configured to use WNMG 06/08 series indexable inserts (e.g., WNMG0604, WNMG0804). These are 6-sided, negative rake inserts known for their economy and versatility.
Design Standardization: As a standardized tool holder, it ensures compatibility and repeatability across different manufacturing environments.
