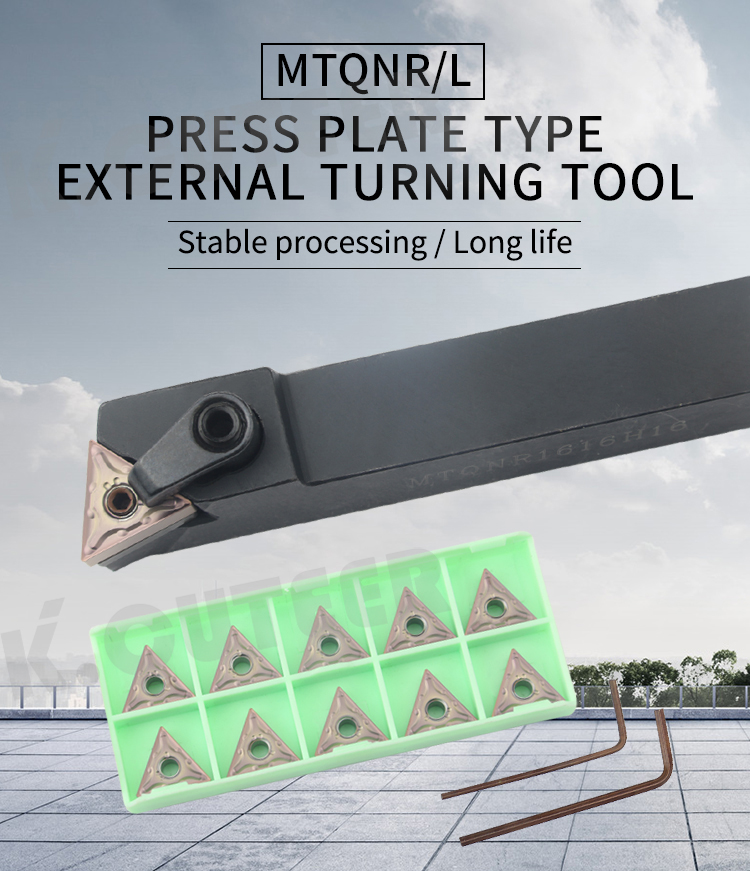

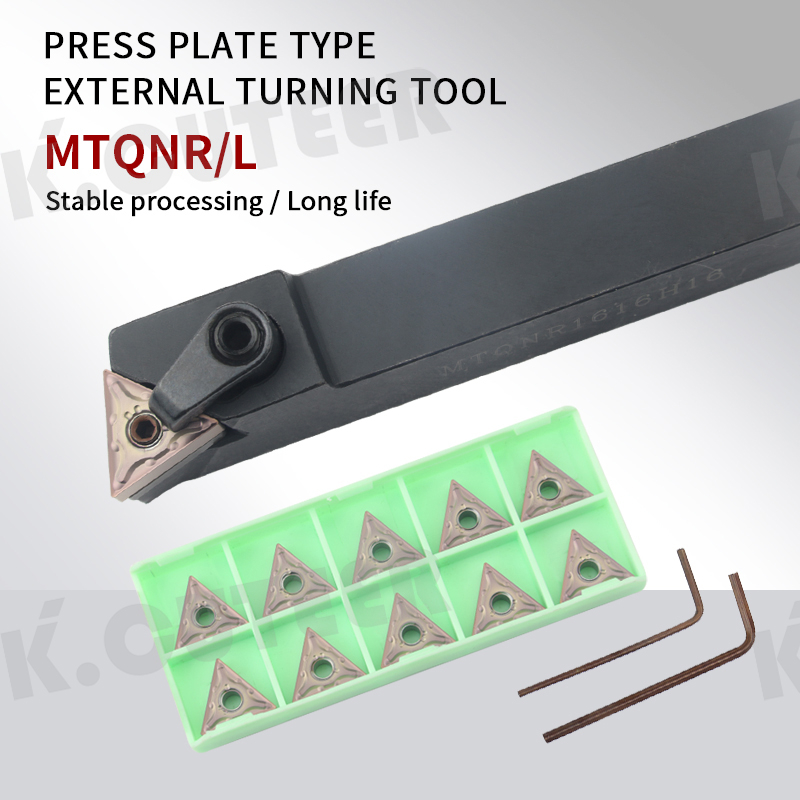

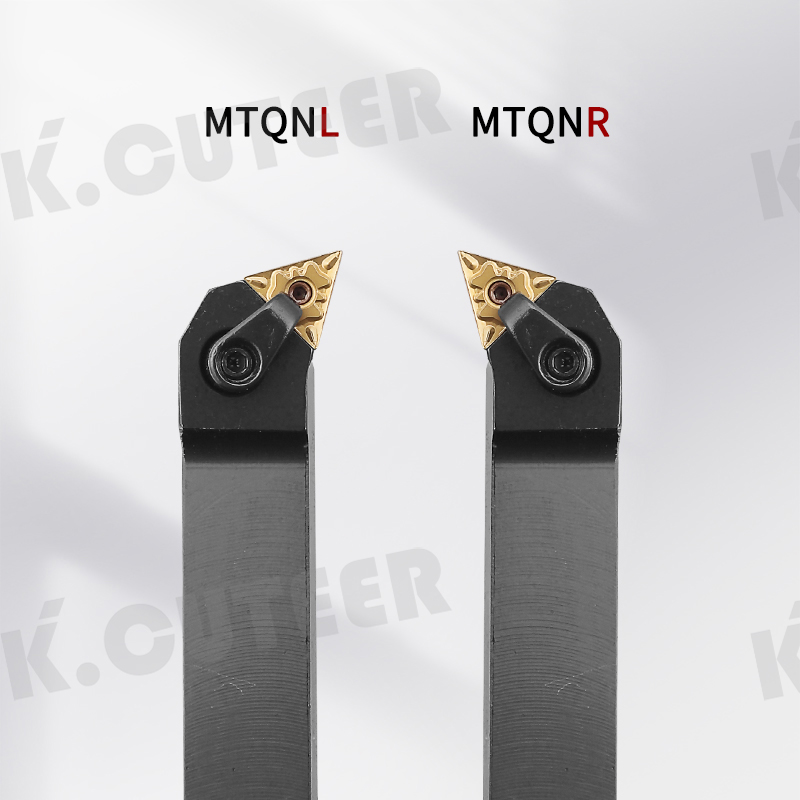

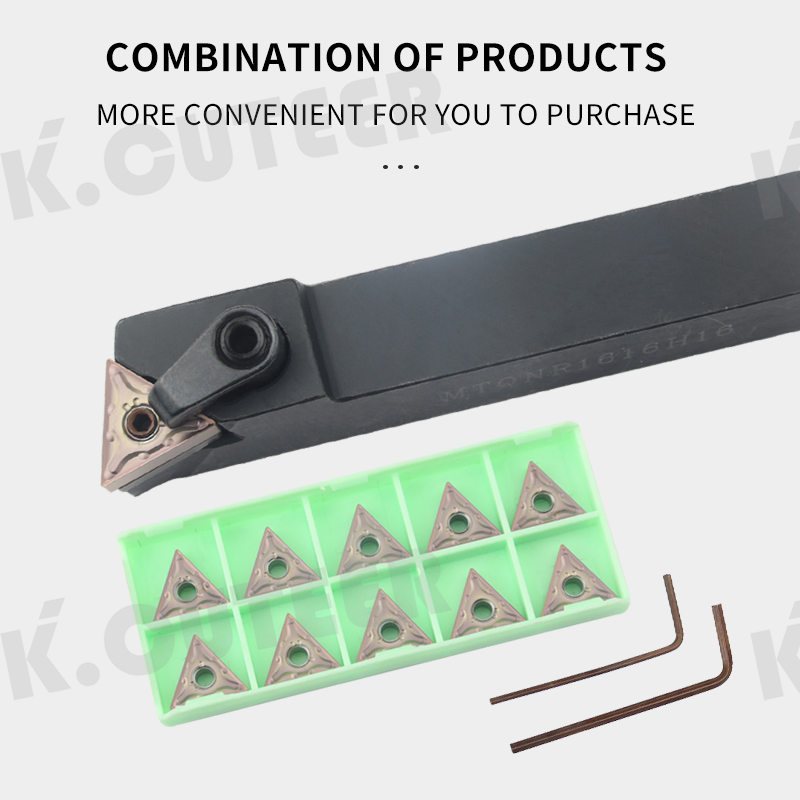

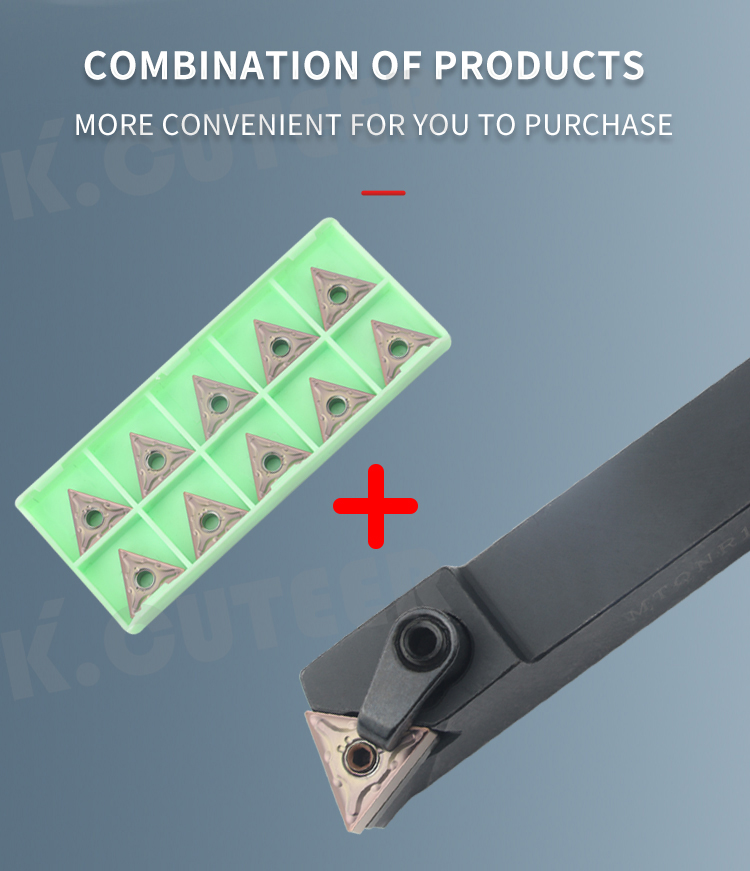

Introduction to MTQNR External Turning Tool Holder:
The MTQNR external turning tool holder is a standardized, modular quick-change tooling component designed primarily for use on CNC lathes and turning centers. It belongs to a widely adopted system that enables fast, precise, and repeatable tool changes.

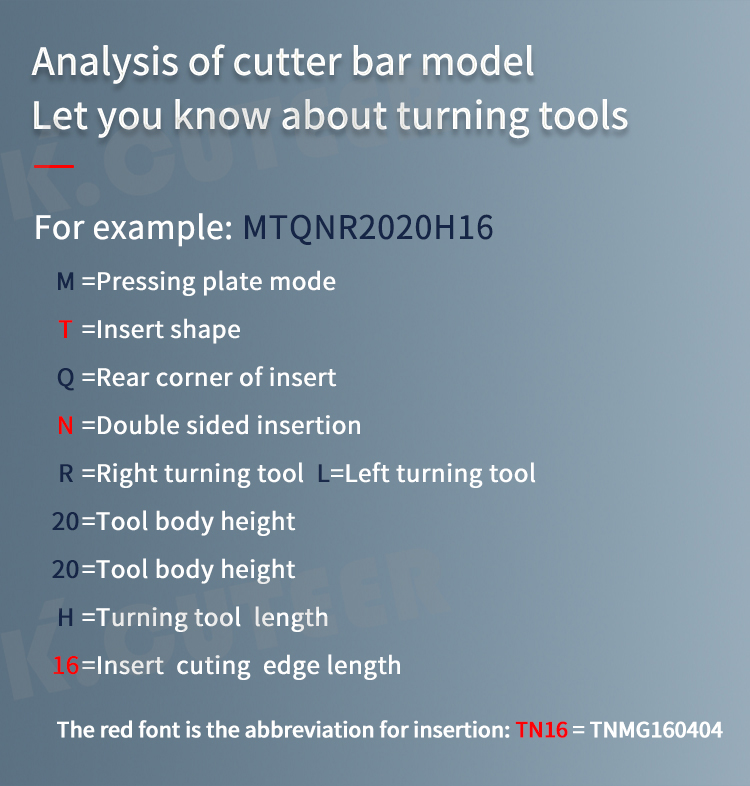

Decoding the ISO Shank Designation (MTQNR):
M: The first letter indicates the tool holder's clamping method. "M" signifies a wedge clamp system, which is known for its exceptionally rigid and secure locking mechanism for the cutting insert.
T: This denotes the insert shape the holder is designed to accept. "T" specifies that it uses a triangular (trigon) insert.
QNR: These letters describe the shank style and its mounting characteristics.
Q: Refers to the quick-change system qualification. It indicates the holder has the bayonet-style lugs and locking mechanism to fit a specific "Q" type turret or quick-change tool post.
N: Represents the tool's normal rake angle (often 0° rake). This provides a strong cutting edge suitable for a wide range of materials.
R: Denotes the cutting direction as Right-Hand. The tool is designed to cut from the headstock toward the tailstock, moving from right to left along the workpiece.
Key Features and Advantages:

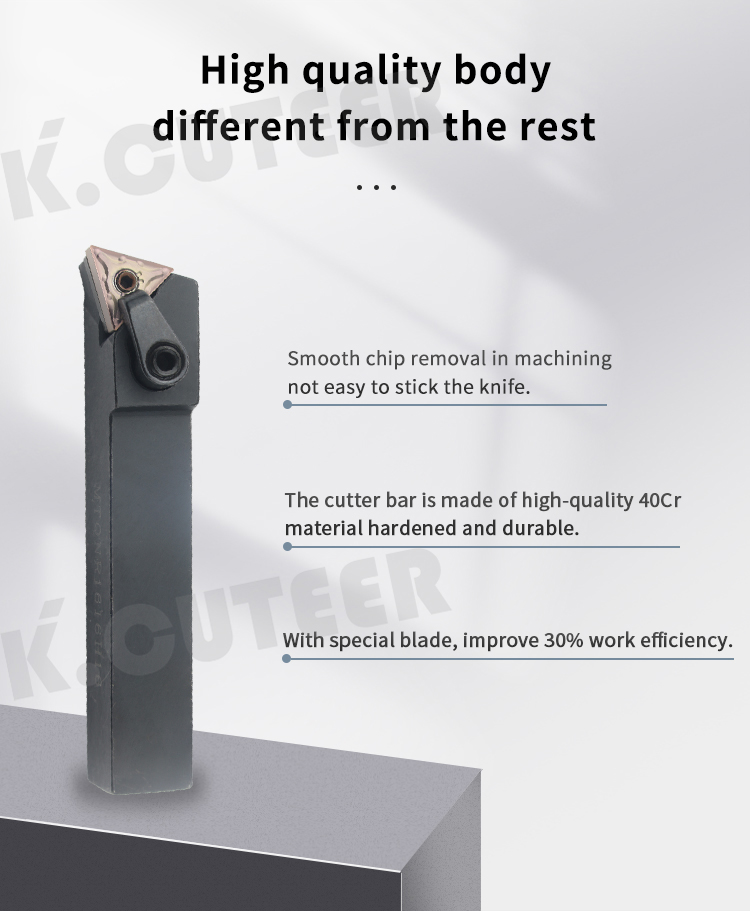

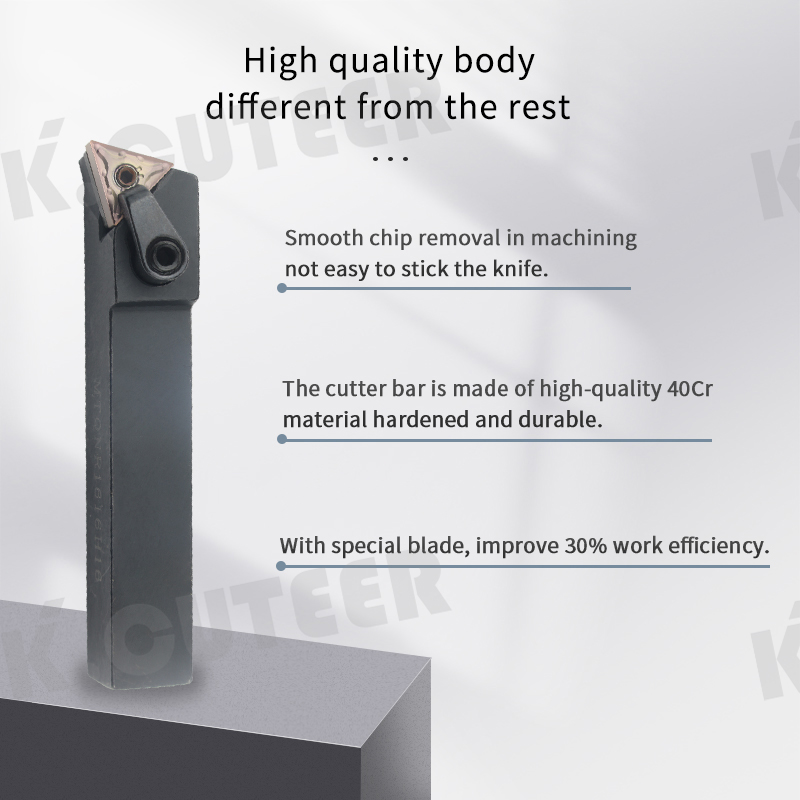

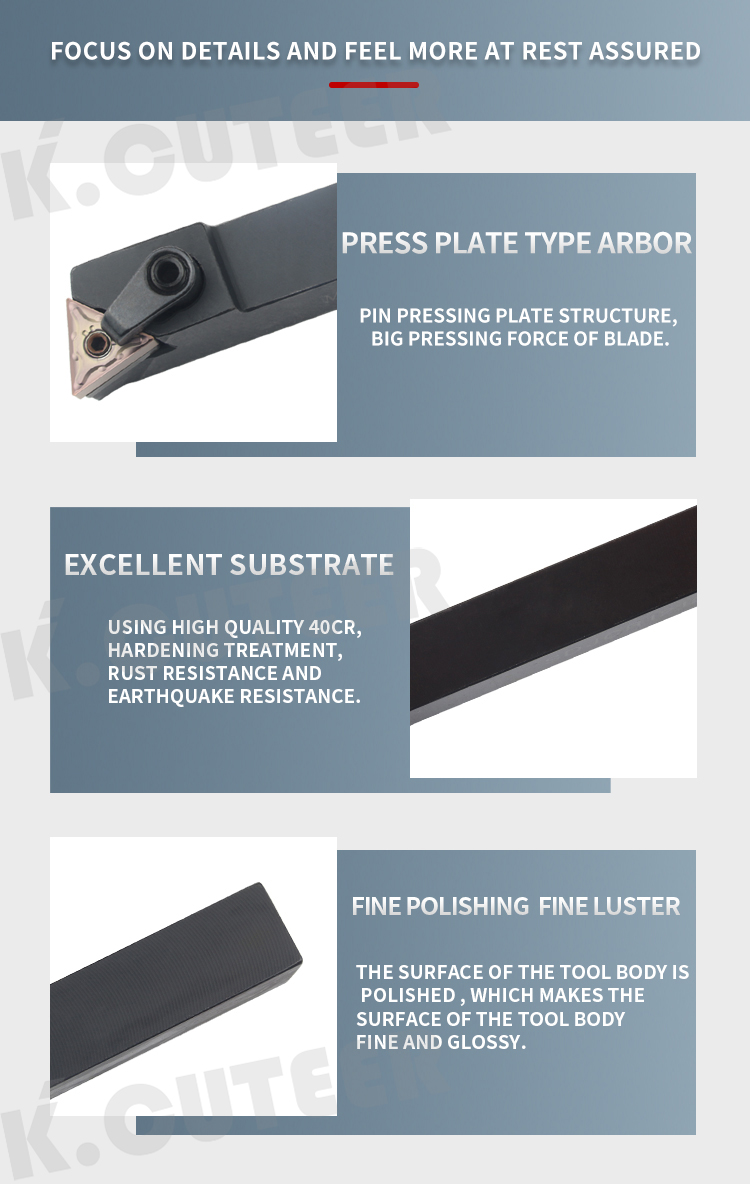

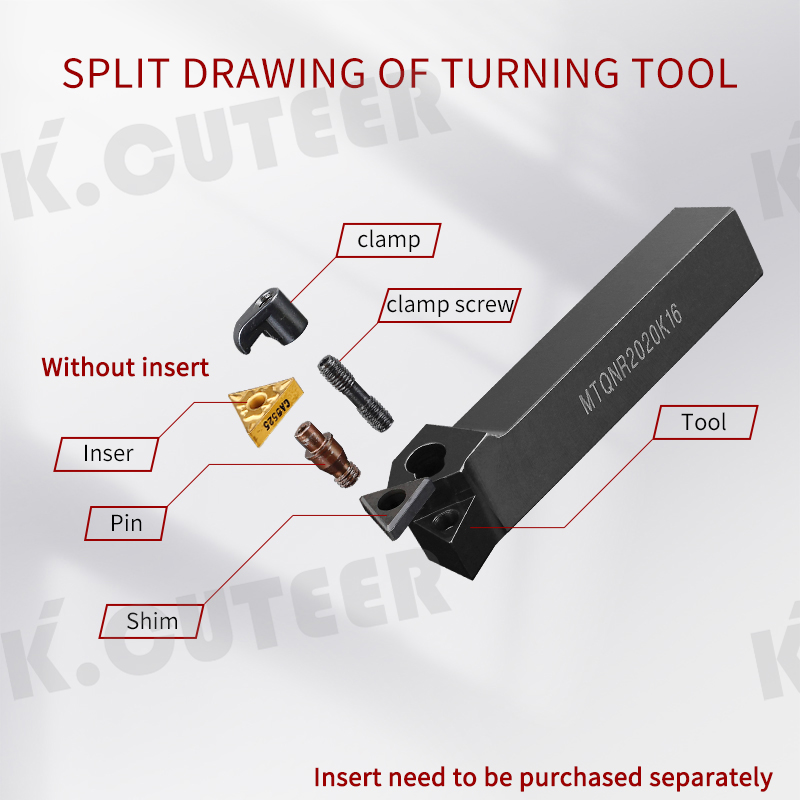

1.High Rigidity (Wedge Clamp - "M"): The M-style clamp uses a wedge that is pulled from the side to lock the insert firmly into its pocket from above. This design offers superior stability, making it ideal for heavy roughing cuts, interrupted cuts, and operations requiring high material removal rates.
2.Quick Change Capability ("Q"): The integrated bayonet-type locking mechanism allows for tool changes in seconds. This dramatically reduces machine downtime and is essential for efficient CNC production, multi-part programs, and flexible manufacturing cells.

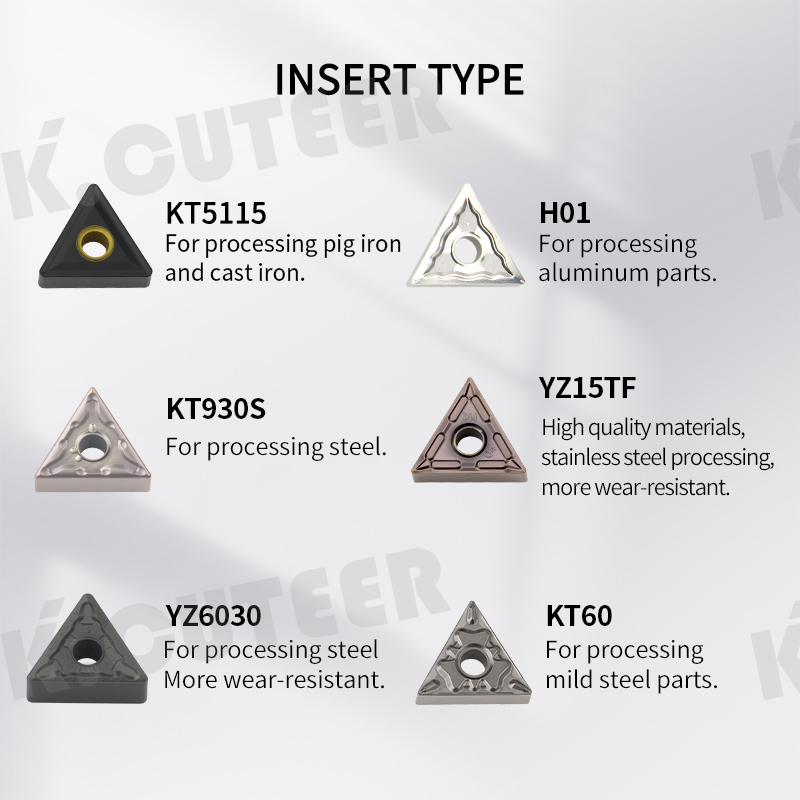

3.Versatility with Triangular Inserts ("T"): Triangular inserts provide six cutting edges, offering excellent economy. They are highly versatile for a broad spectrum of external turning operations, including facing, profiling, and longitudinal turning.
4.Precision and Repeatability: Once preset, the tool holder can be removed and reinstalled into the turret with minimal deviation in its cutting point position. This repeatability is critical for maintaining tight tolerances in batch production.
5.Right-Hand Standard Operation ("R"): As the most common orientation, it covers the majority of standard turning applications on a lathe.
Primary Applications:
1.Heavy-duty roughing and finishing of external diameters.
2.Shoulder turning and facing operations.
3.General-purpose turning of steels, cast iron, and other common materials on CNC turning centers.
4.Any production environment where quick tool changes and high process reliability are required.
In summary, the MTQNR is a robust, wedge-clamp, quick-change tool holder specifically engineered for triangular inserts and right-hand external turning. It represents the industrial standard for productive, reliable, and efficient machining on modern CNC lathes.
