High-Precision Emrw 6r Milling Cutter Bar for Efficient Machining

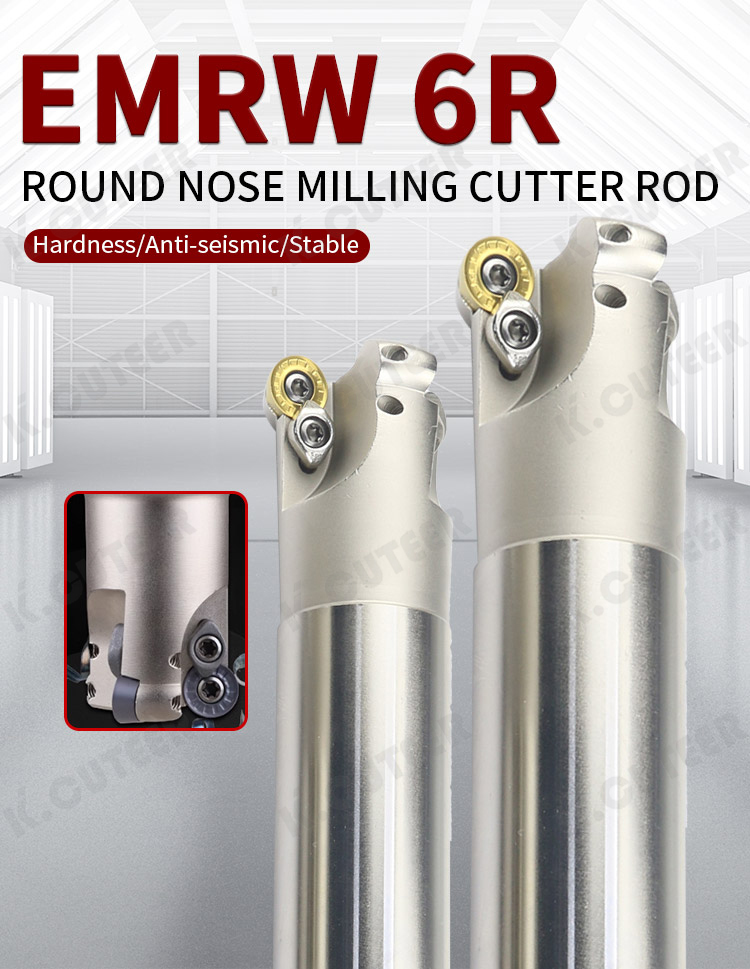

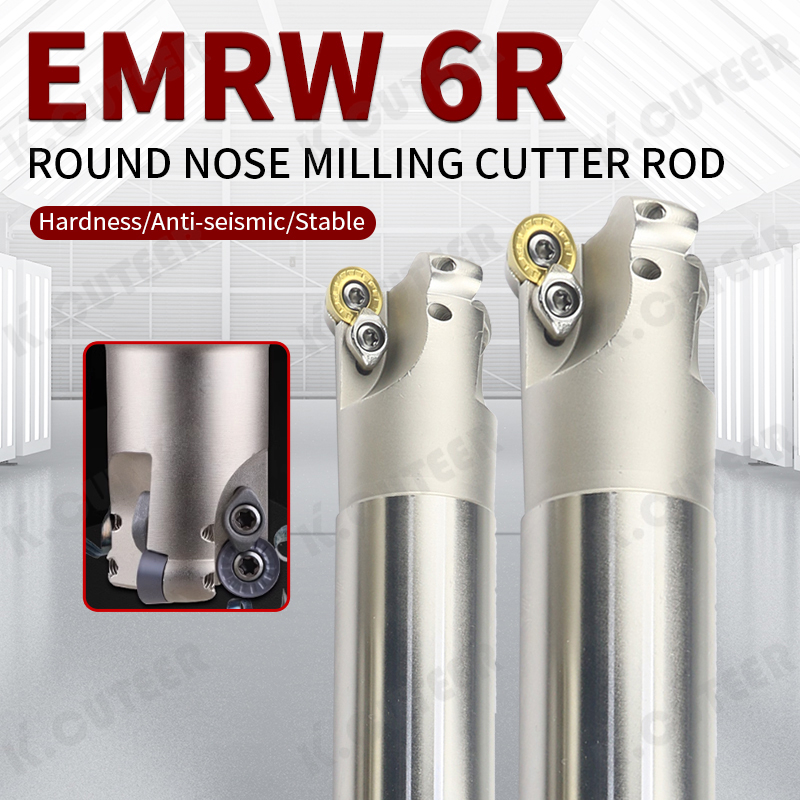

The EMRW-6R is a modular indexable round nose end mill holder used on machining centers and lathes.

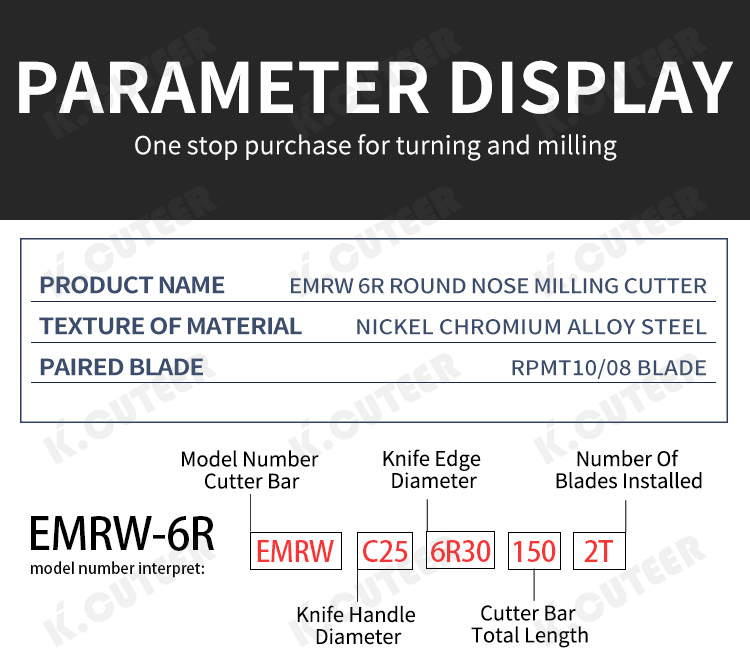

The EMRW-6R is a modular, indexable round nose end mill holder designed for machining centers and lathes. It is engineered for roughing and semi-finishing operations, capable of machining planes, side faces, step faces, and grooves. The tool holder's designation follows a common industry convention:

E: Indicates that it is an End Mill holder.

M: Represents the clamping system type.

R: Specifies the insert shape as Round.

W: Denotes the geometry and clearance angle of the holder itself.

6R: The "6" indicates the nose radius of the insert is R6 (6mm), and the final "R" confirms it is for a right-hand rotation cutter.

Availability:

Quantity:



Inquire Add to Basket

lathe machine cnc milling machine CNC Machines CNC Milling Machines cnc metal cutting machine milling cutter holder Milling Cutters Lathe Cutting Tools milling cutter bar Milling Tool Holder

Product Description

Key Features:

1.Tool Design: It is designed for R6 (6mm radius) round nose machining. This means it holds inserts with a round cutting edge, suitable for contouring and generating smooth radii.

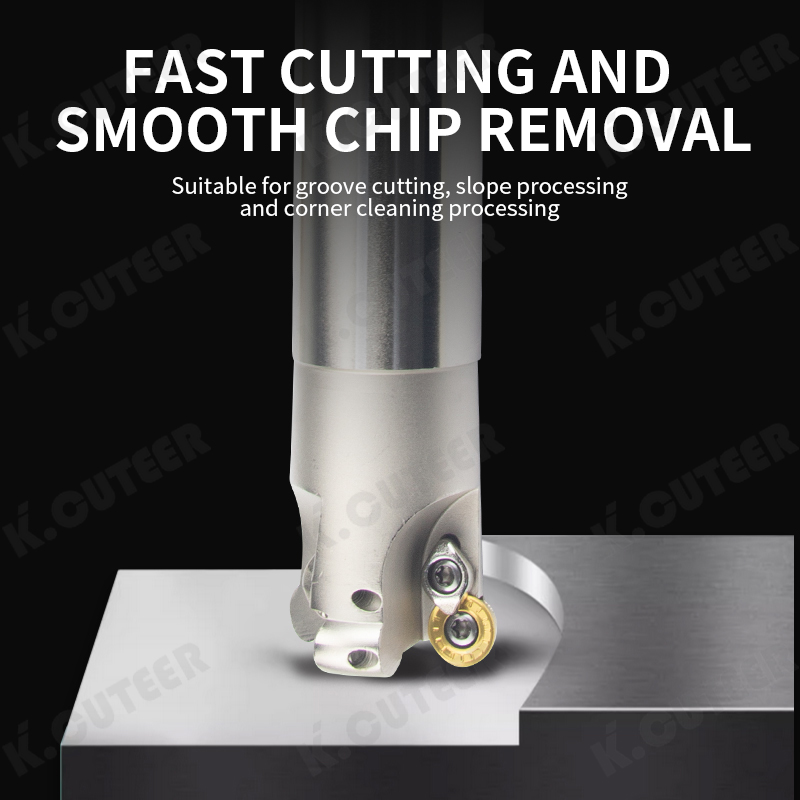

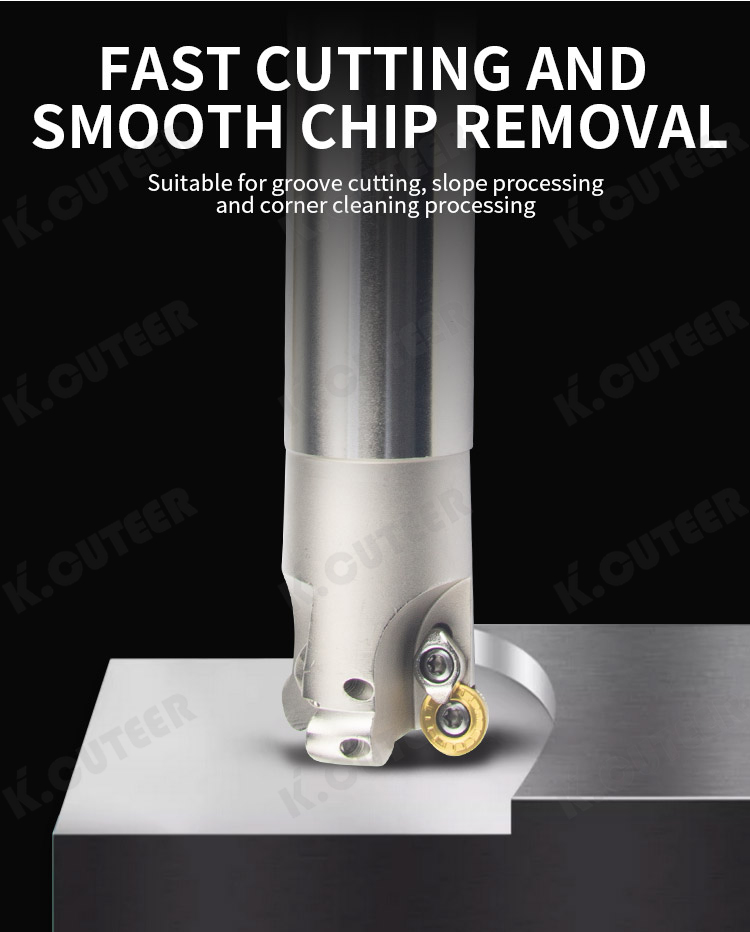

2.Main Application: Primarily used for roughing and semi-finishing operations. It is well-suited for machining planes, side faces, step faces, and grooves.

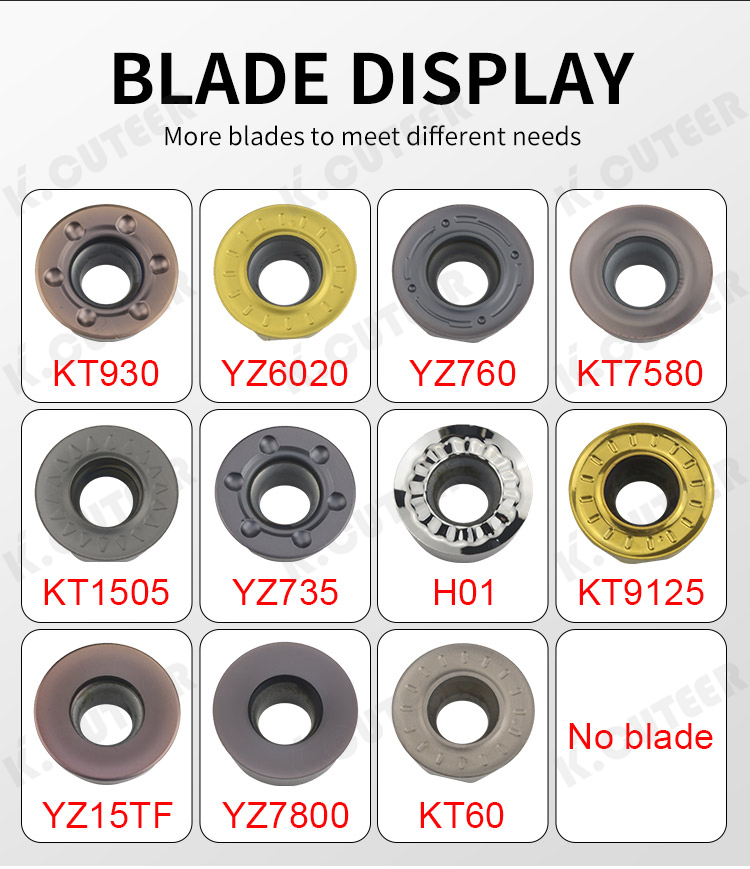

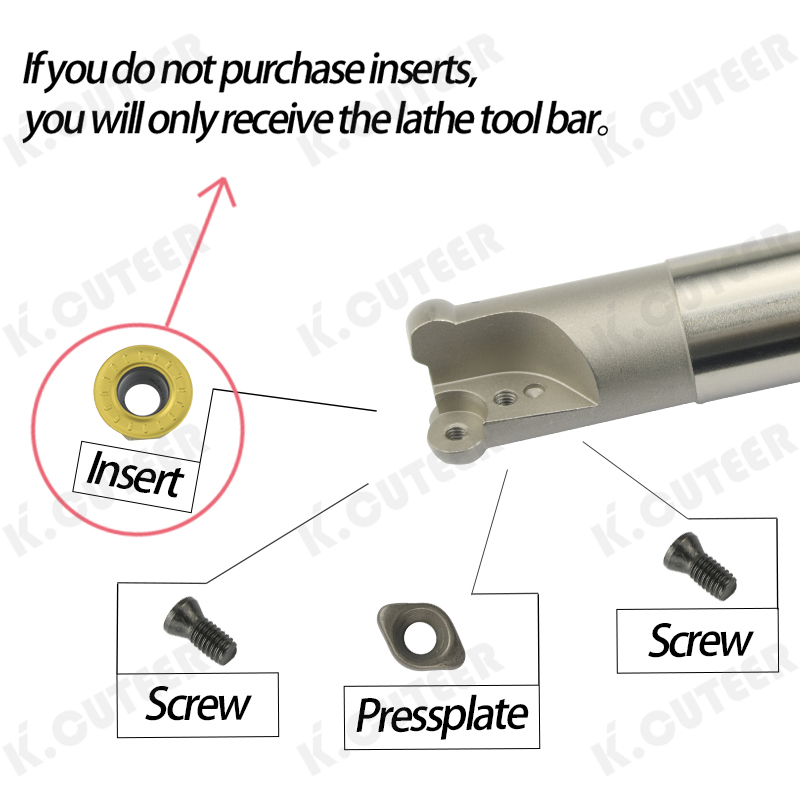

3.Compatible Insert: The standard compatible insert model is RPMT1024 (or a similar type like RPMT1204).

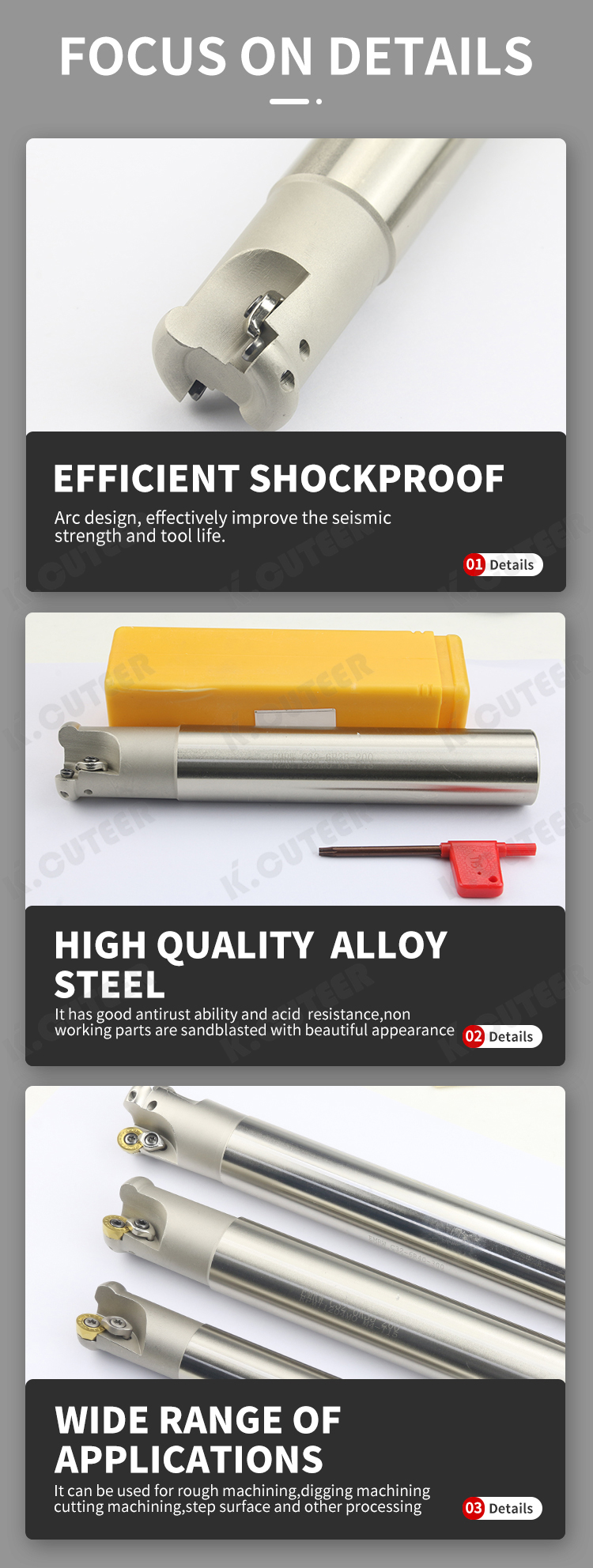

4.Material: The holder is typically made of alloy steel and may undergo heat treatment to a high hardness (approximately 60 HRC) for durability.

Advantages of the Design:

1.Efficiency: The indexable insert design allows for quick edge changes, minimizing machine downtime.

2.Versatility: The round nose (ball nose) geometry is excellent for contour milling, 3D profiling, and creating smooth radii.

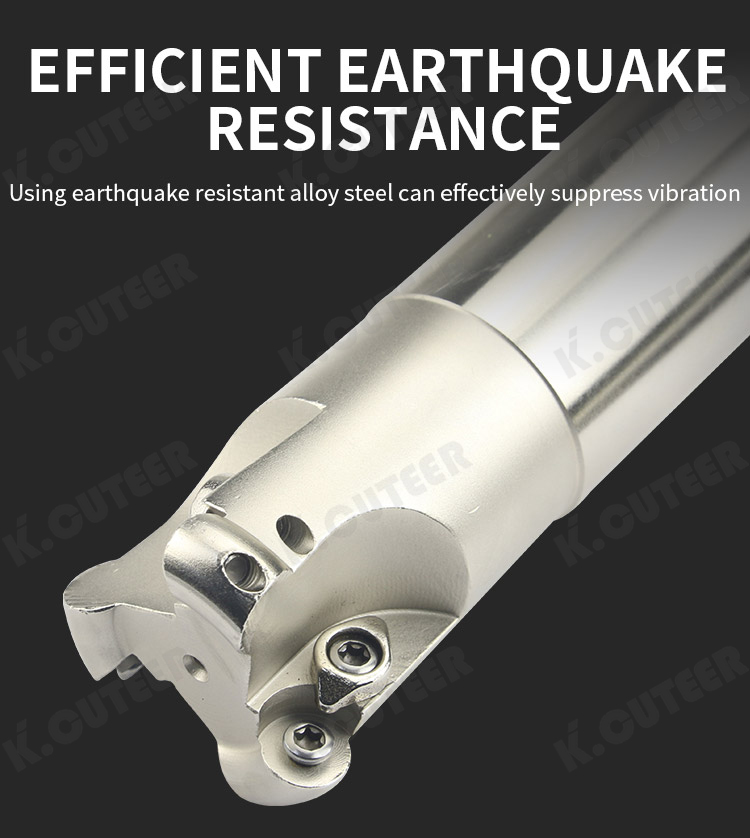

3.Stability: A robust tool holder body provides good vibration damping during heavy cuts.
