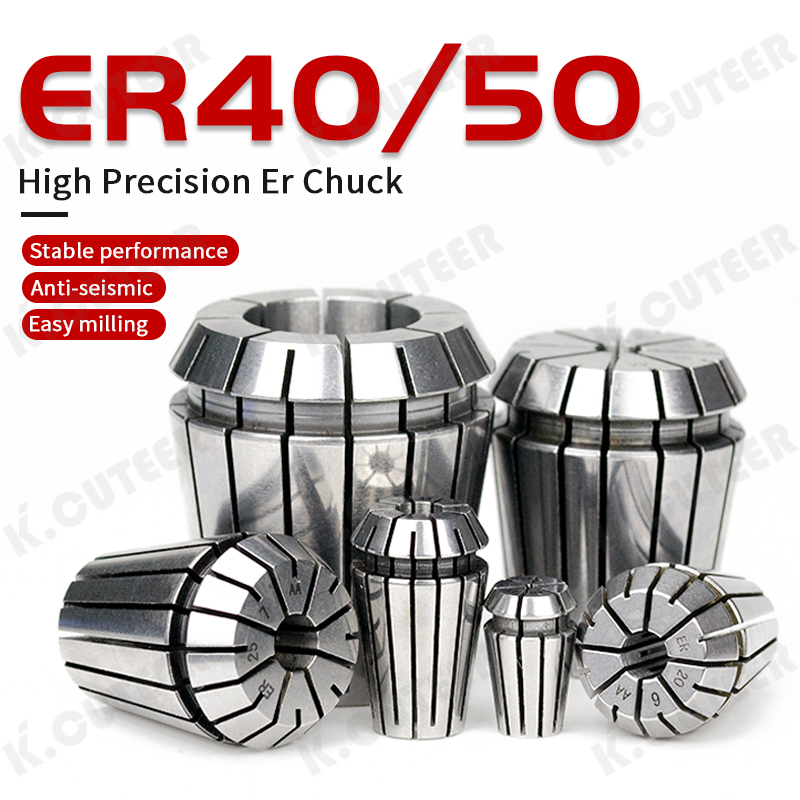

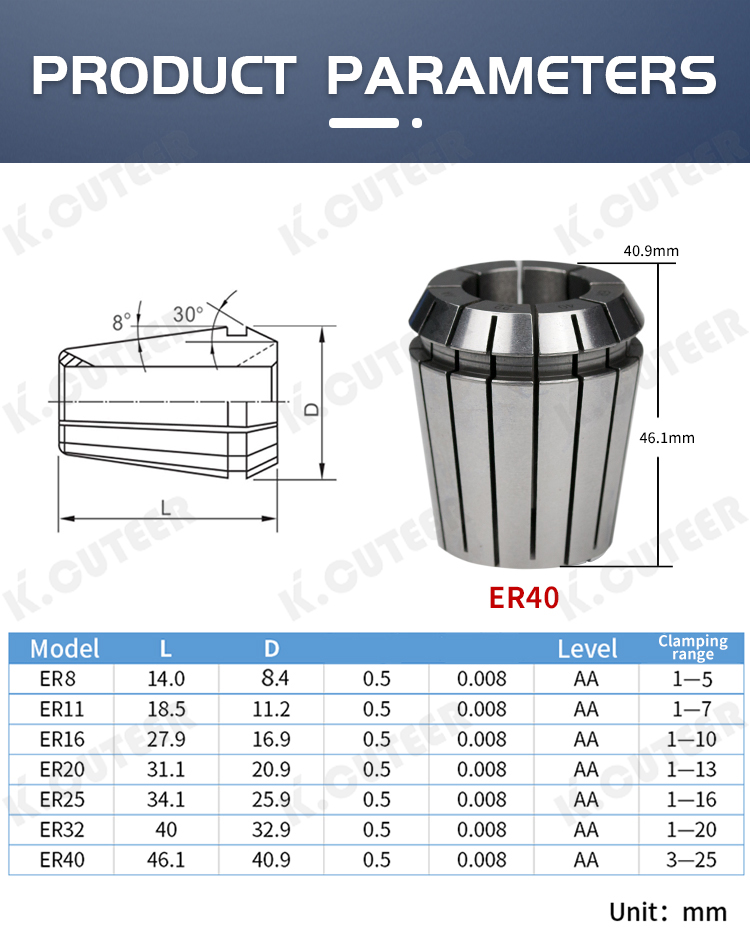

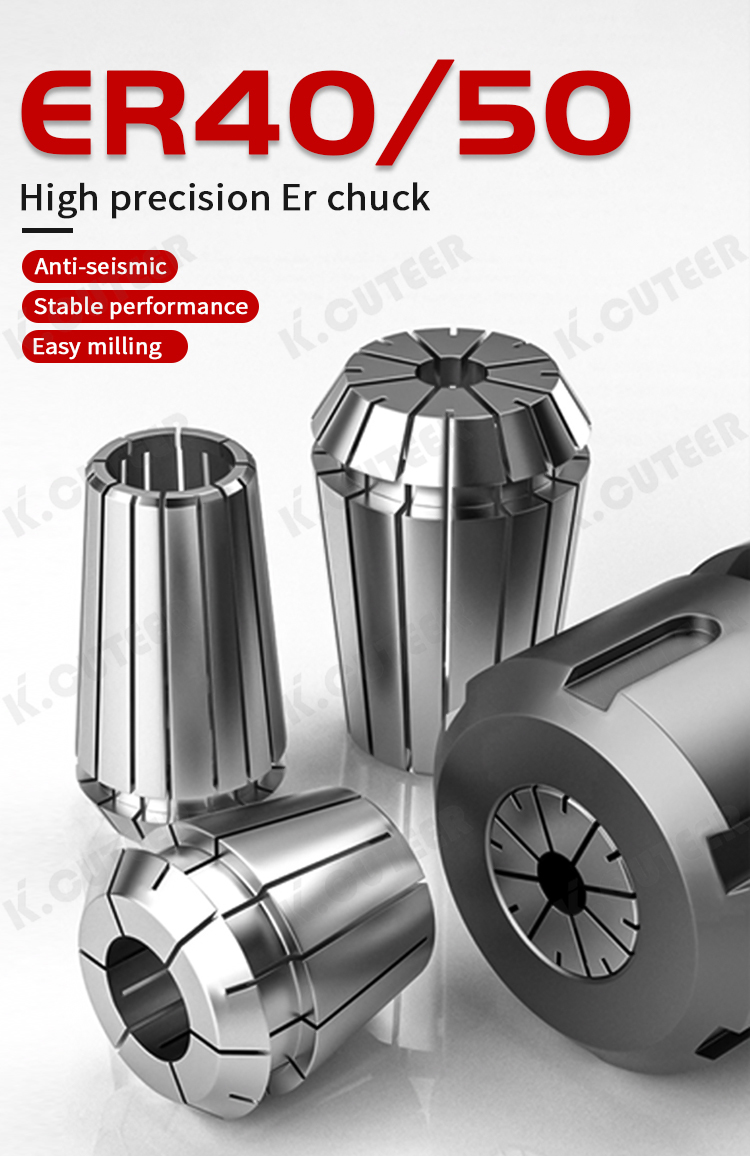

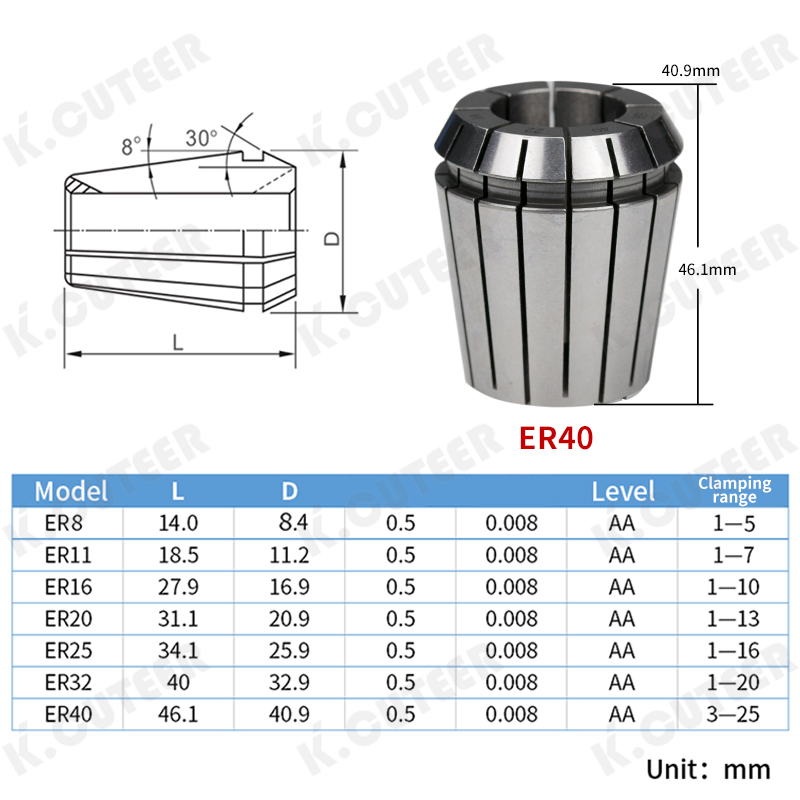

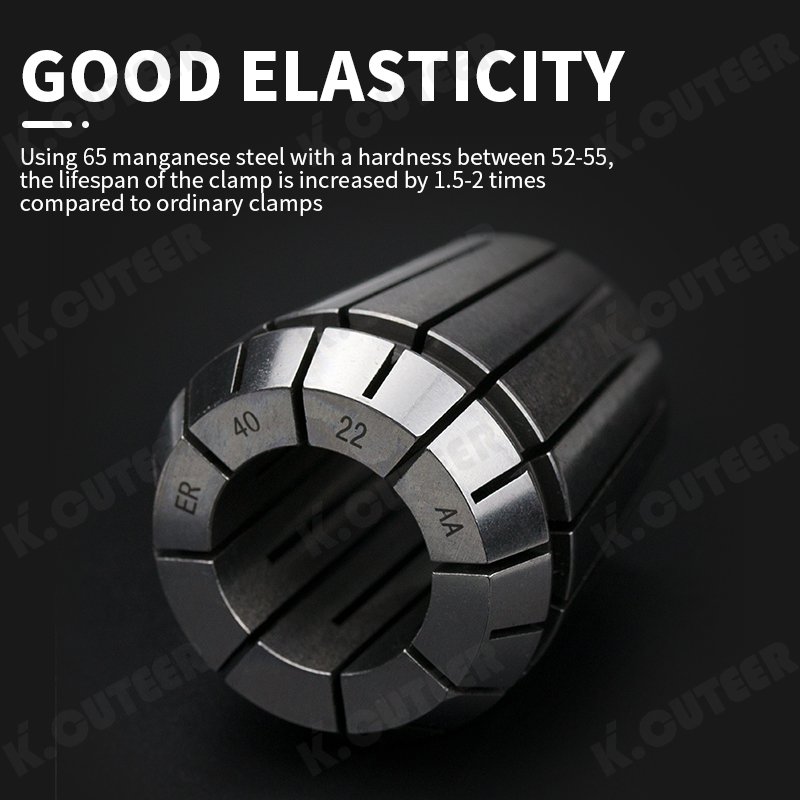

The key difference between ER40 and ER50 lies in their size, which determines their clamping range and applications. The specifications for the tools you inquired about are as follows:
| Specification | ER40 Collet | ER50 Collet | Additional Notes |
|---|---|---|---|
| Primary Clamping Range | Approximately 4-26 mm (or 2-26 mm in some types) | Approximately 6-34 mm | Range can vary slightly between manufacturers. |
| Typical Applications | Drilling, milling, reaming, tapping for medium-sized tools. | Heavy-duty machining, larger diameter tools, and some specialized holding. | Suitable for a wide range of operations. |
| Key Design Feature | Features 16 slots, allowing for a large clamping range and excellent radial runout accuracy. | Shares the same 16-slot design principle. | The design ensures uniform clamping force. |
| Compression Range | 1 mm (.040"). | Not explicitly stated in results, but follows the series standard. | Refers to the total amount the collet can contract to grip different sizes. |

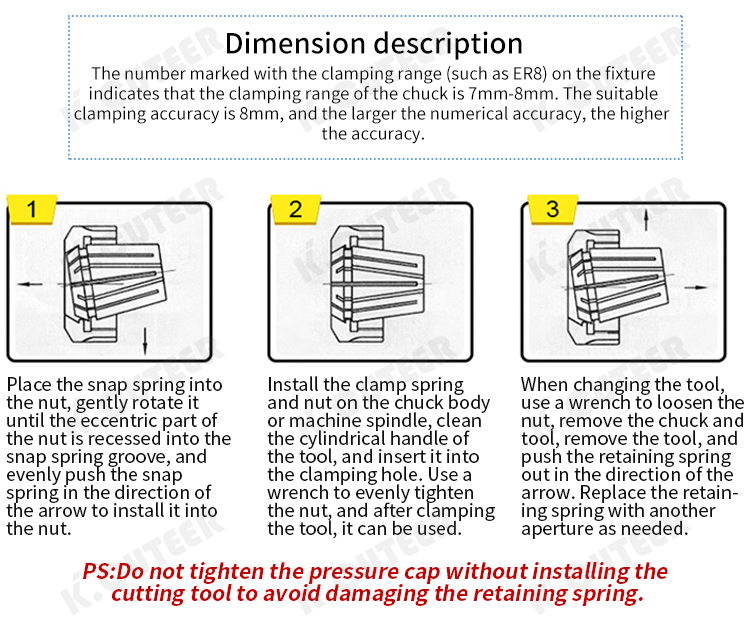

An ER collet works by being pulled into a matching tapered nose on an ER collet chuck. This action causes the slotted collet to compress uniformly around the tool shank, providing a strong, concentric grip.

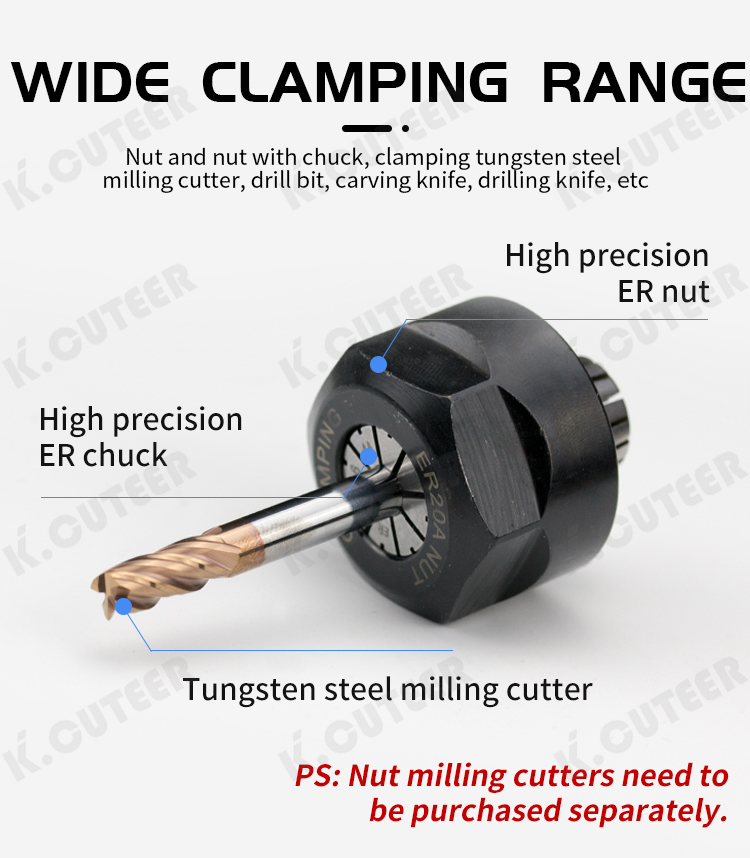

System Components: It requires three parts: the collet, a matching locking nut, and an ER collet chuck that fits your machine's spindle (e.g., CAT40, BT30).

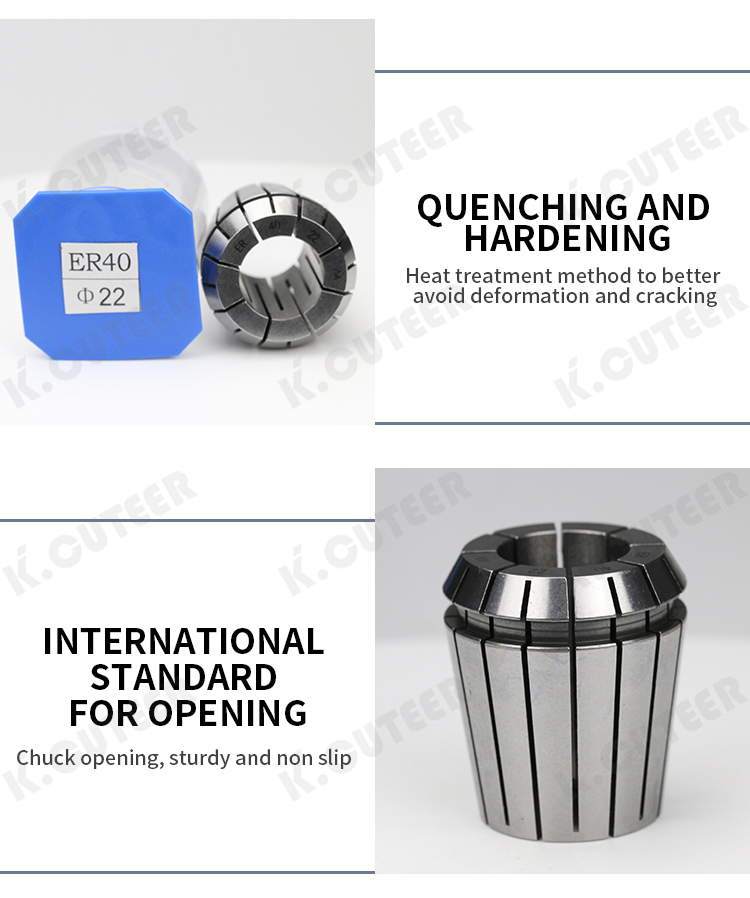

Industry Standards: The ER collet system is manufactured according to international standards such as DIN 6499 and ISO 15488. Collets are also available in different precision grades (e.g., Standard, High Precision "A" Grade).
The widespread use of ER collets is due to several key benefits:

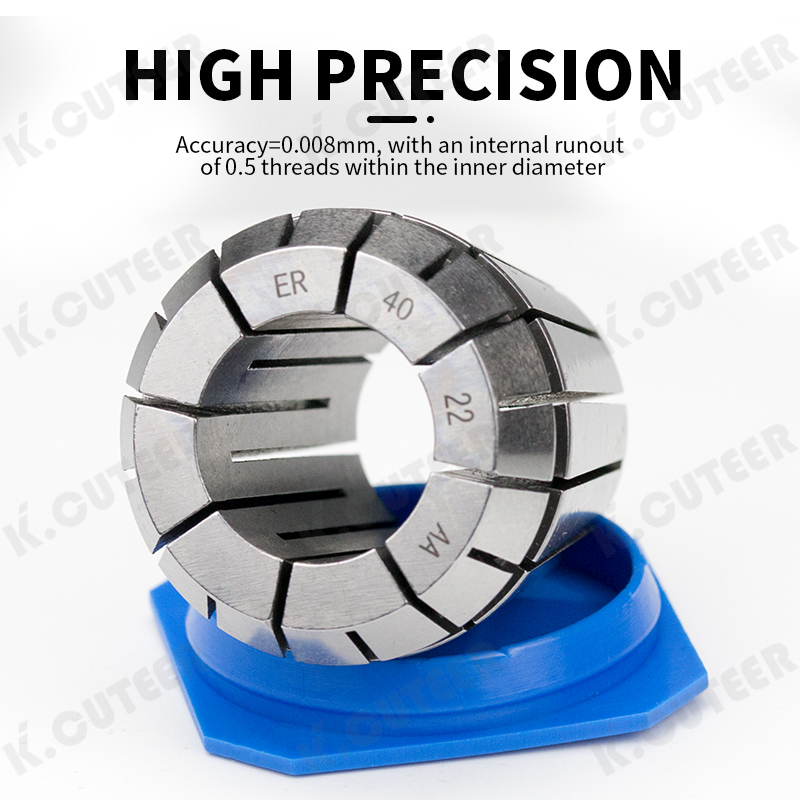

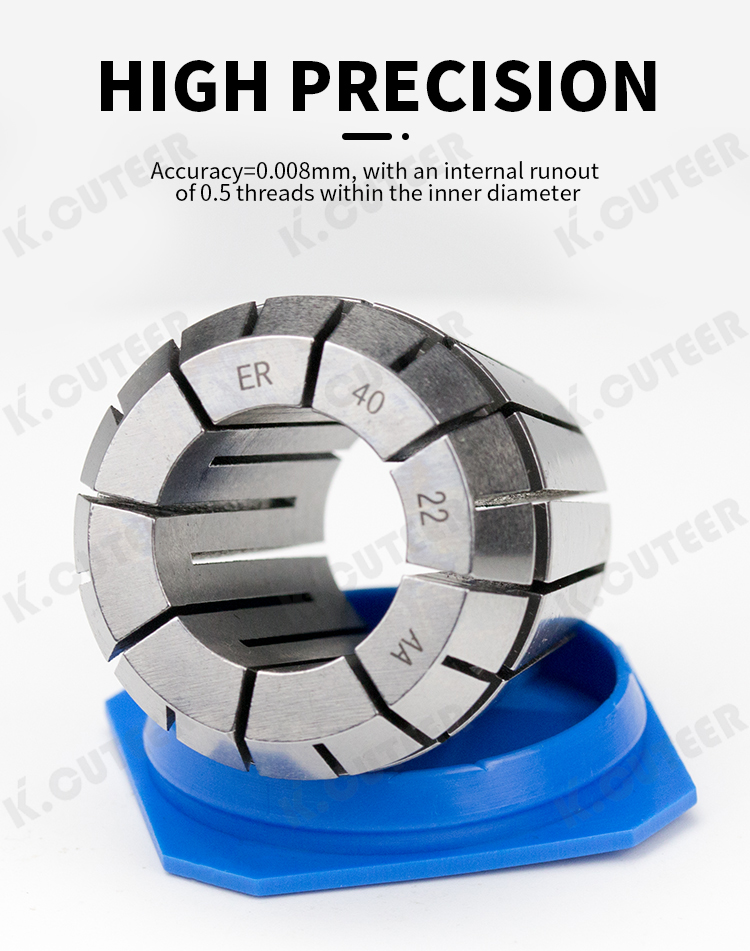

High Precision: Ensures minimal tool runout for accurate machining.
Large Clamping Range: A single collet can securely hold a range of tool shank diameters, reducing the number of collets needed.

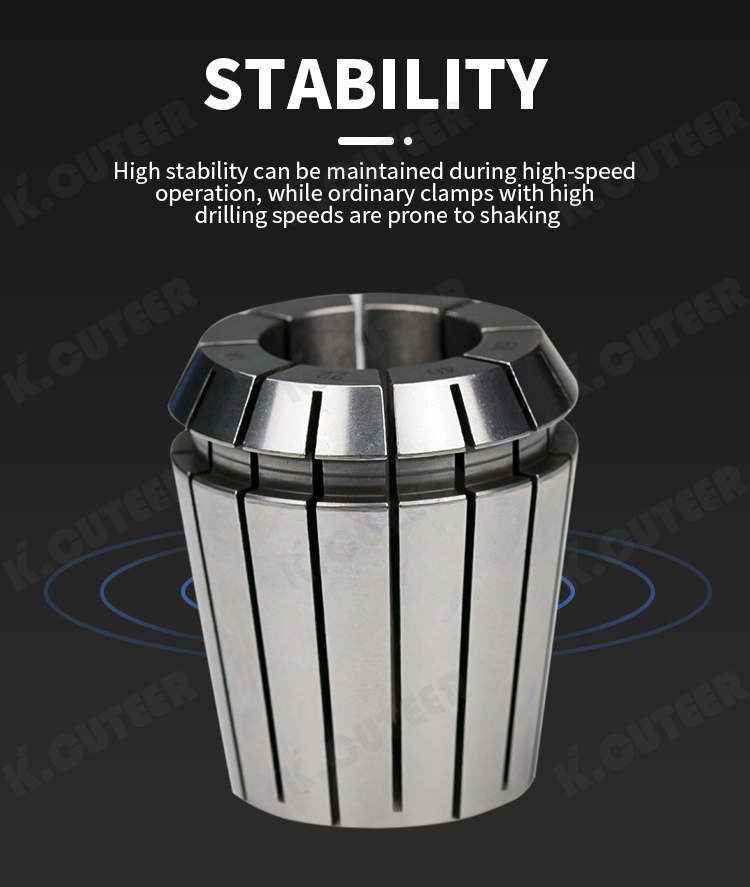

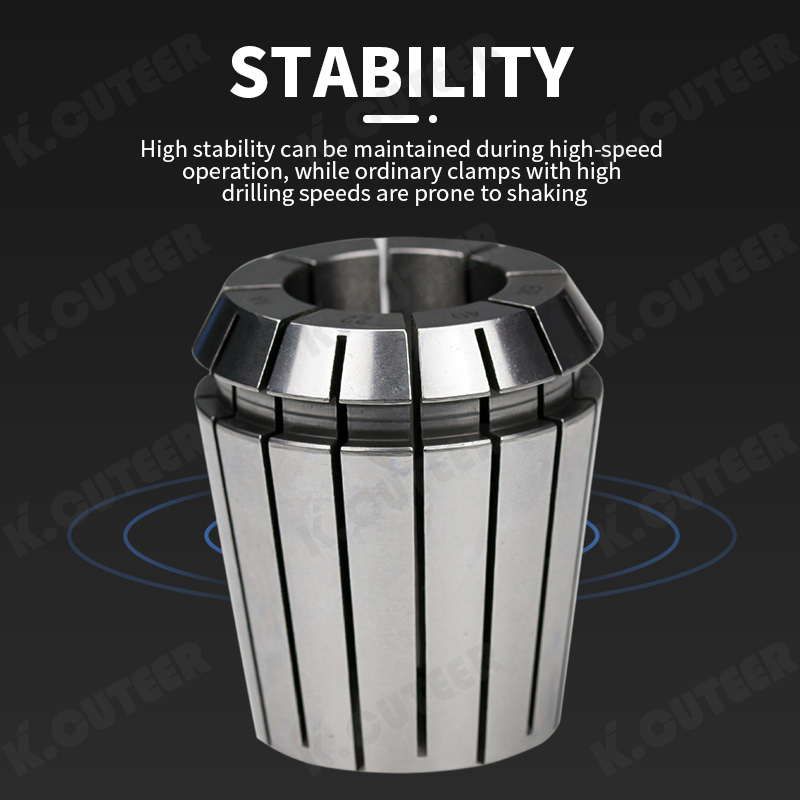

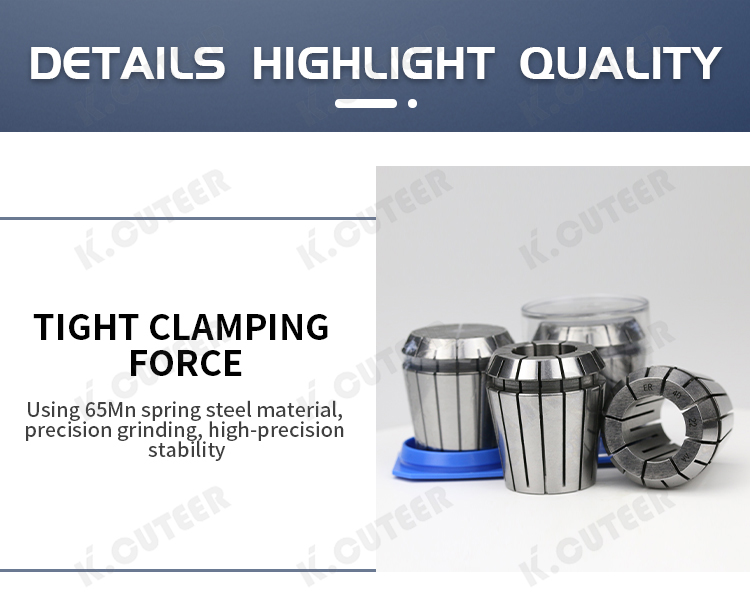

Strong Grip: Provides substantial clamping force for stable machining.
Versatility: Used for holding drills, end mills, reamers, taps, and even as a workpiece fixture.

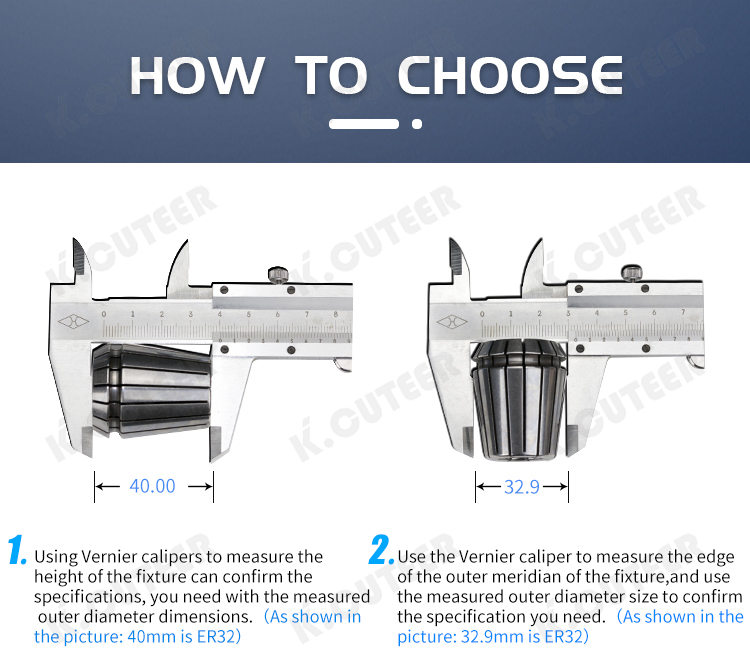

Correct Sizing: Always use a collet that matches your tool shank diameter as closely as possible. Using a collet at the extreme end of its range can reduce grip and accuracy.
Complete Assembly: Remember that an ER collet alone cannot be used. You must have the correct matching chuck and locking nut for your machine spindle interface (like BT, CAT, HSK).
Quality Grades: For high-speed or high-precision applications, investing in higher-grade (e.g., Grade A) collets can improve performance and tool life.
