Overview:

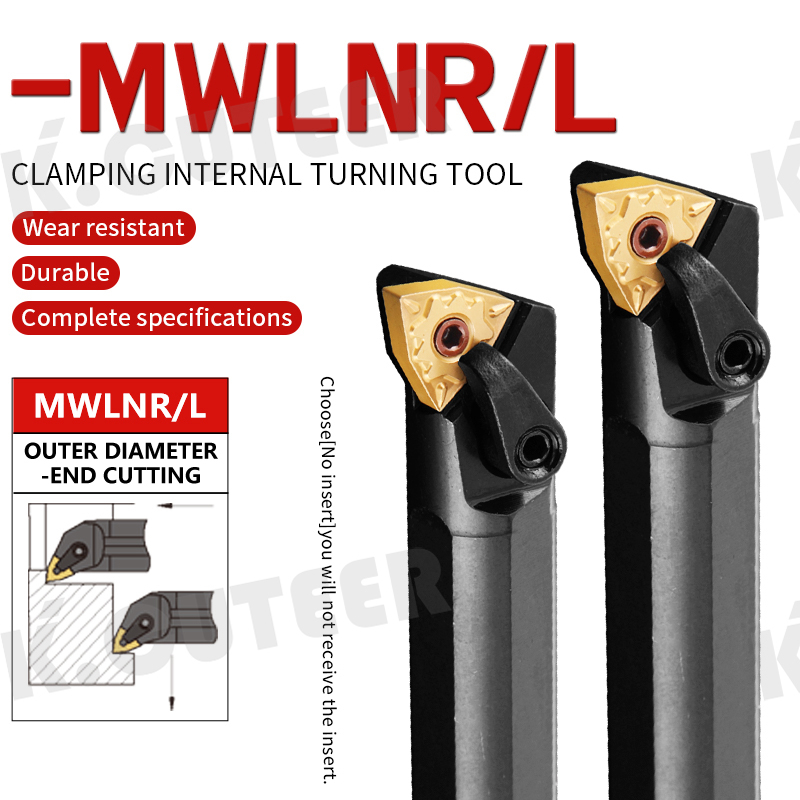

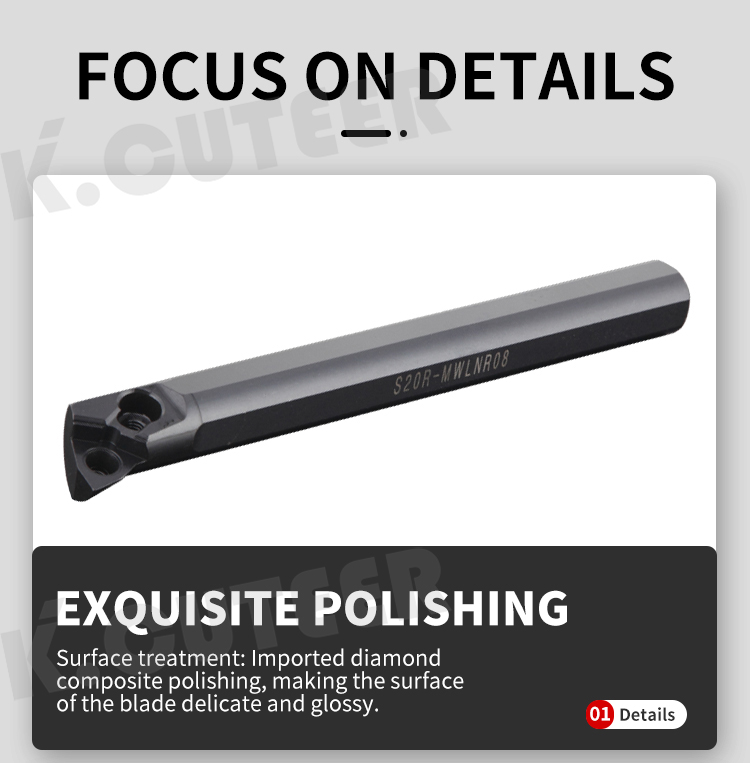

MWLNR is an internal turning tool featuring an M-style clamp with lever and pin lock system. It is primarily employed for internal turning operations such as boring and facing.
This tool holder features a negative rake angle and a 95° approach angle, enabling it to handle tasks ranging from roughing to finishing operations. It is suitable for a wide variety of materials, including steel, stainless steel, cast iron, high-temperature alloys, and hardened materials.
Key Features:

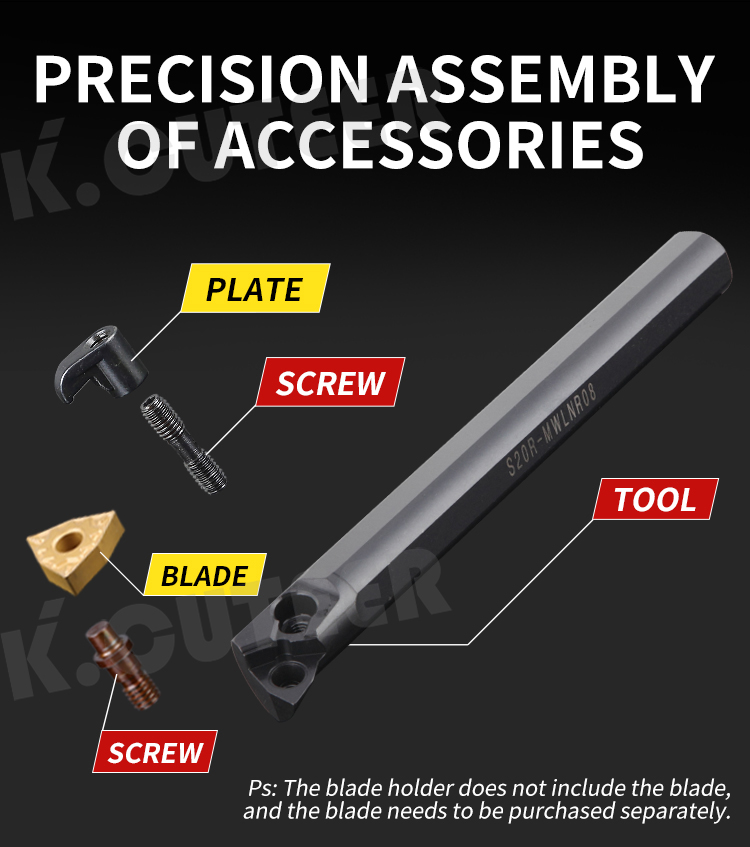

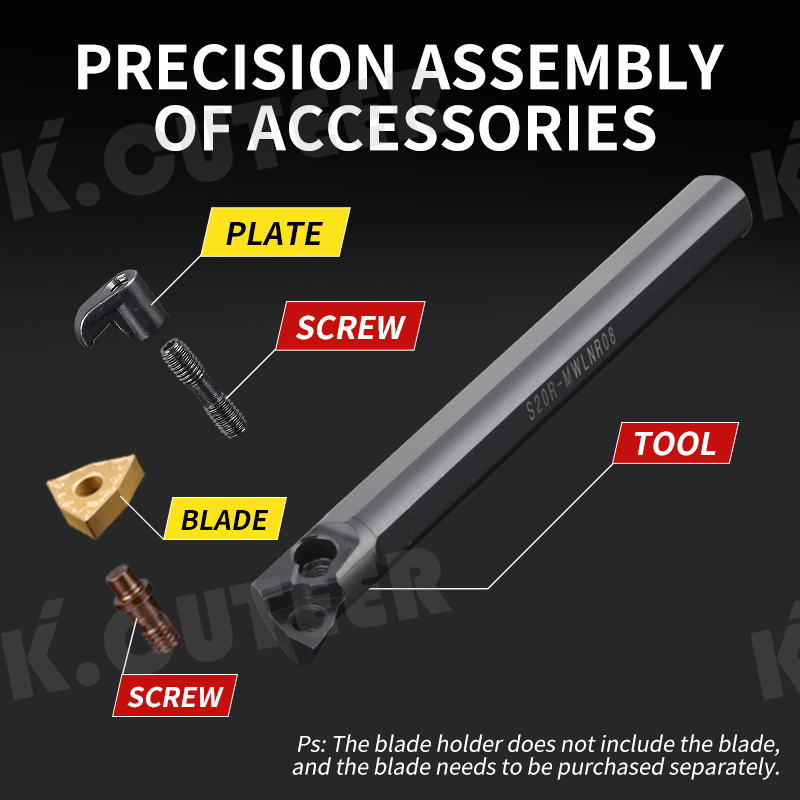

1.Reliable clamping mechanism: Utilises an industry-standard M-type clamp and pin system to secure the insert. This composite clamping structure (eccentric pin and clamp) withstands heavy-duty cutting and impact, making it suitable for heavy-load interrupted cutting.

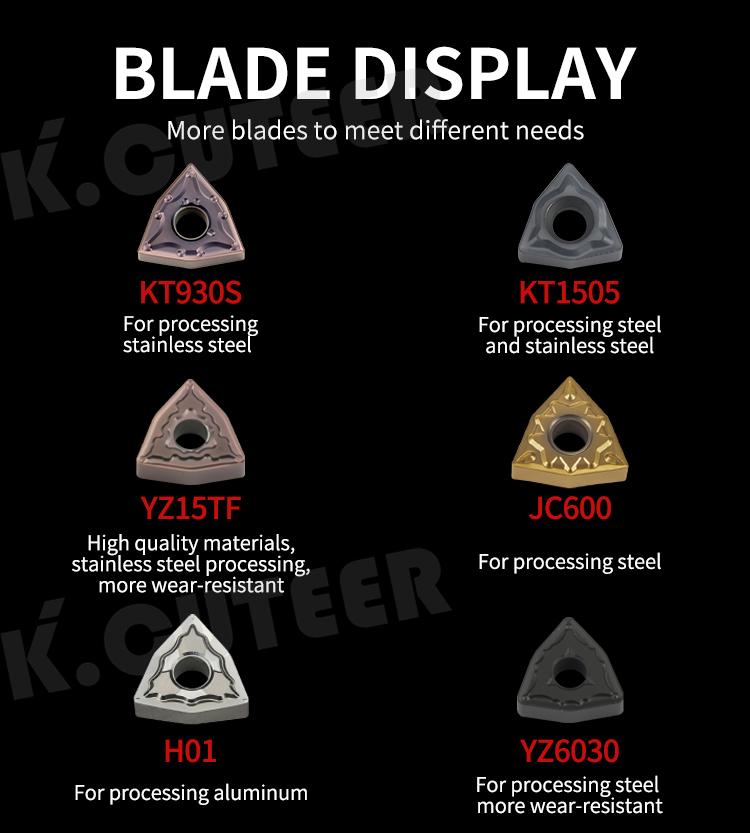

2.Insert compatibility: Typically utilises WNMG-type inserts, with specific grades such as WNMG432.

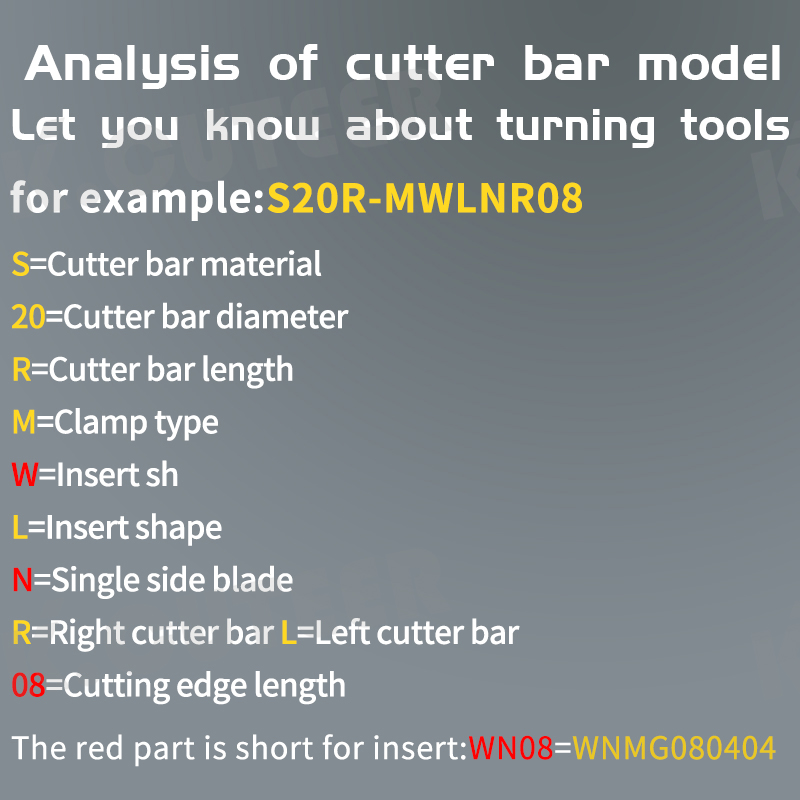

3.Modularity and specifications: MWLNR toolholders are available in various dimensions, including shank height and width (e.g., 1 inch x 1 inch, 3/4 inch x 3/4 inch), alongside different lengths and minimum boring diameters to accommodate diverse machining requirements.
