Procuct Description:
Universal key dimensions for this type of holder include:
Overall Length (L): Typically 100 mm .
Head Length (L1): Typically 30 mm .
Functional Width (L4): Typically 20 mm .
Key Features & Applications:

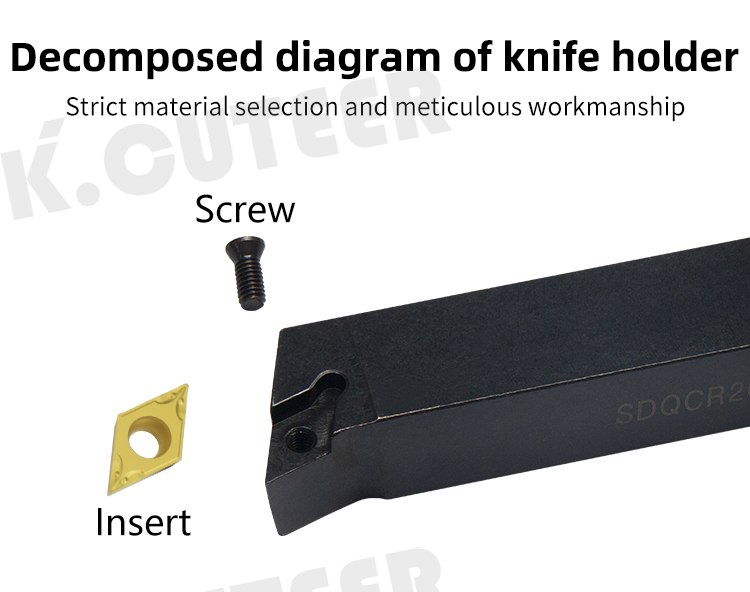

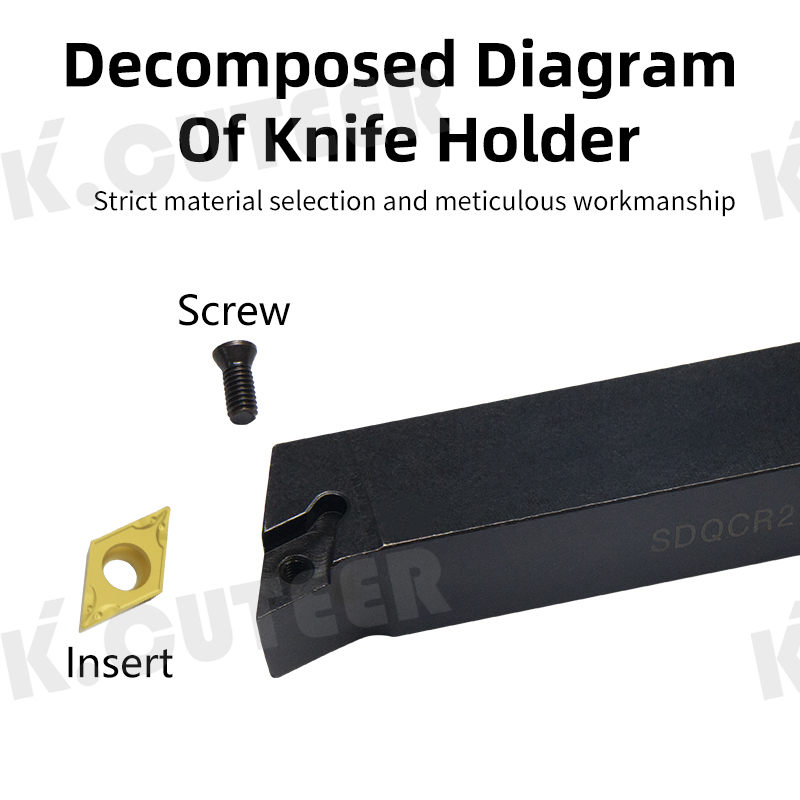

1.Clamping Mechanism: As a "Screw-on" type holder, it uses a top clamp screw to secure the indexable insert directly. This design is known for being simple, compact, and reliable.
2.Primary Application: This holder is designed for external turning and facing operations .
3.Cooling Option: Some variants of such tool holders come with an internal coolant supply . This feature helps in improving chip breaking, enhancing cutting efficiency, and extending tool life.

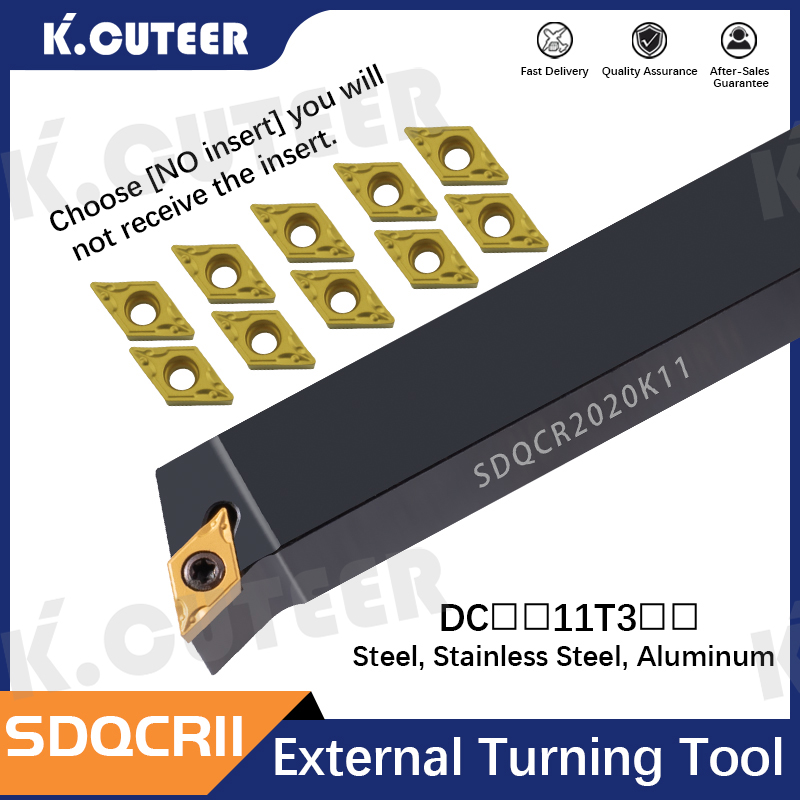

4.Compatible Insert: This holder type typically uses "DC..11T3.." style diamond-shaped inserts . A common specific insert used with this style of holder is the DCMT11T308 .
Selection & Usage Notes:
1.Confirm Model Details: It is advisable to confirm the complete model specification with your supplier before purchasing, as additional codes may indicate features like coolant holes.

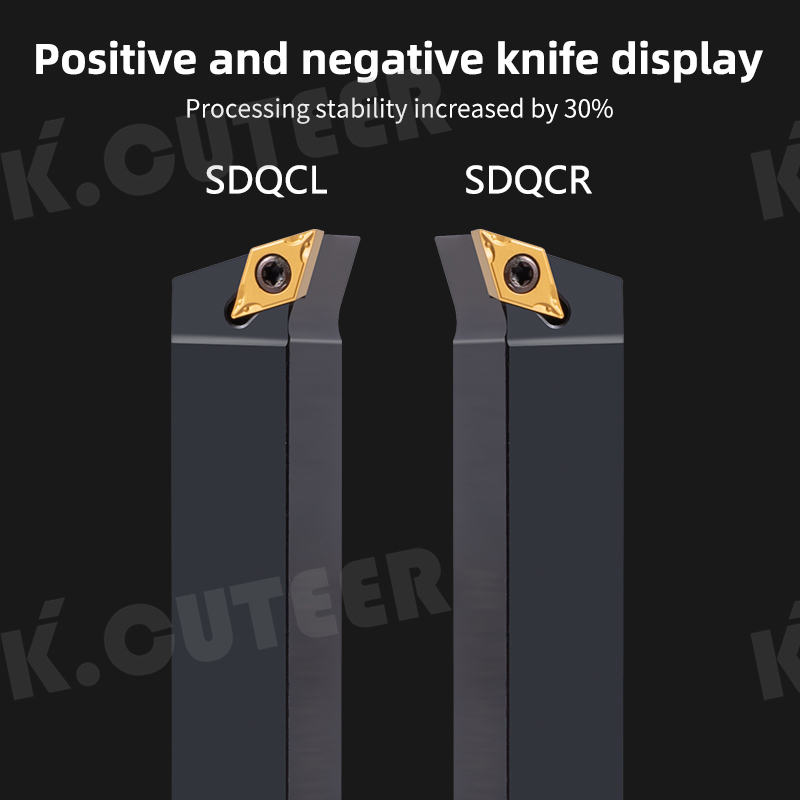

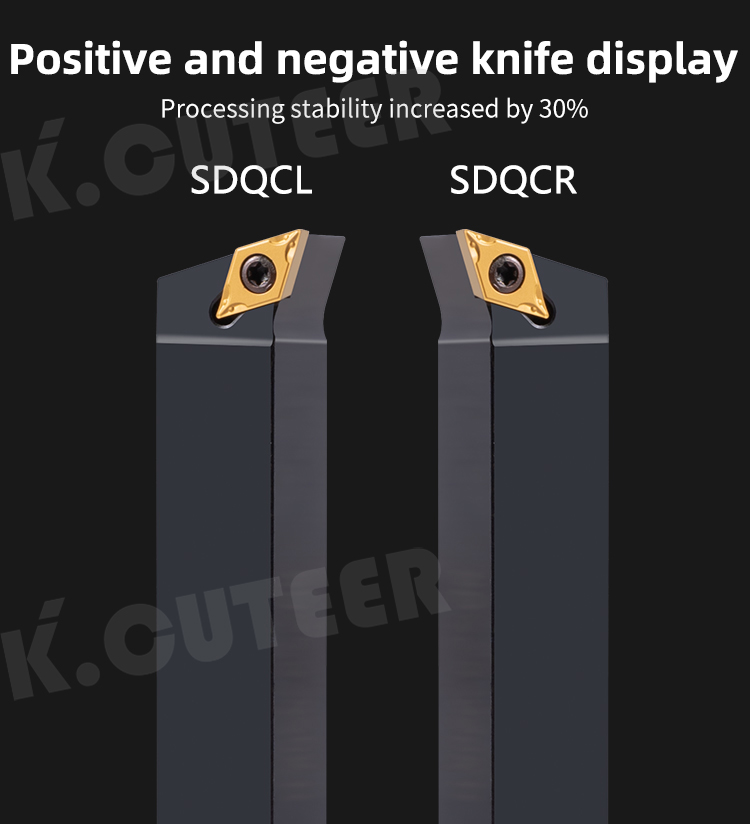

2.Handing Selection: The "R" (Right-hand) version is paired with "L" (Left-hand). Ensure you select the correct version based on your machine's operation requirements .
3.Match Insert and Bolt: Always use the correctly specified indexable inserts and the dedicated bolt kit to ensure proper clamping force and operational safety .
