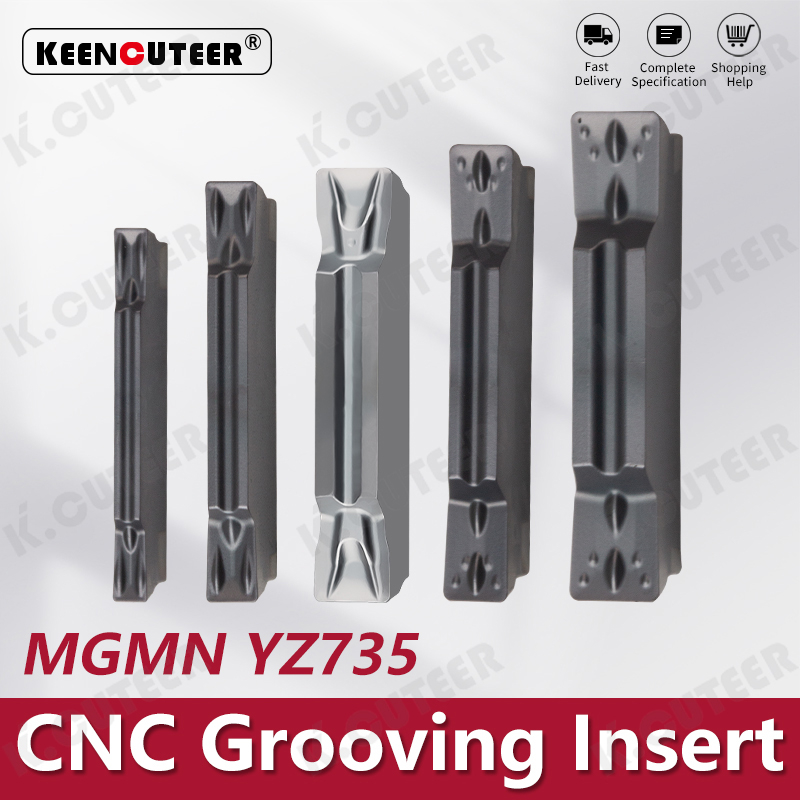

Durable Stainless Steel Grooving Insert for CNC Machining

The MGMN is a specific insert geometry code from major tool manufacturers (like Kennametal, Iscar, etc.) for a versatile grooving and cut-off tool. The YZ735 is a specialized substrate and coating grade engineered by ISCAR specifically for challenging applications in stainless steels and high-temperature alloys.

Availability:

Quantity:



Inquire Add to Basket

Grooving Inserts CNC Inserts Carbide Insert Blade stainless steel tungsten carbide insert CNC Cutting Blade CNC blades insert tools precision cutting tool tool

Product Description

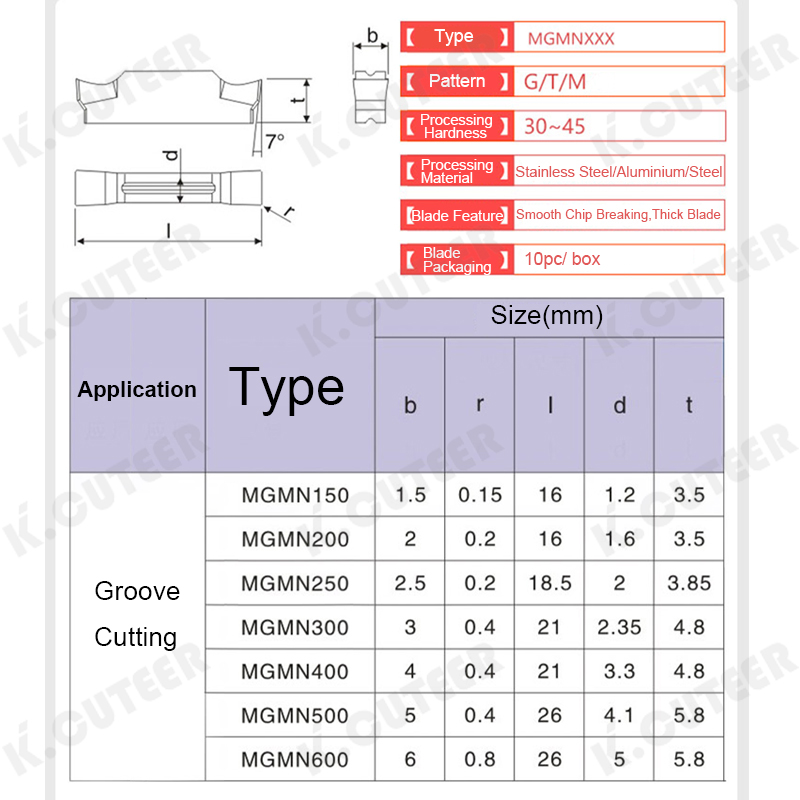

Specification：

Name: Grooving and cutting CNC blade

Brand: KEENCUTEER

ItemNo.: MGMN

Suitable for: MGEHR/L

YZ735: used to process stainless steel and reduce tool vibration.

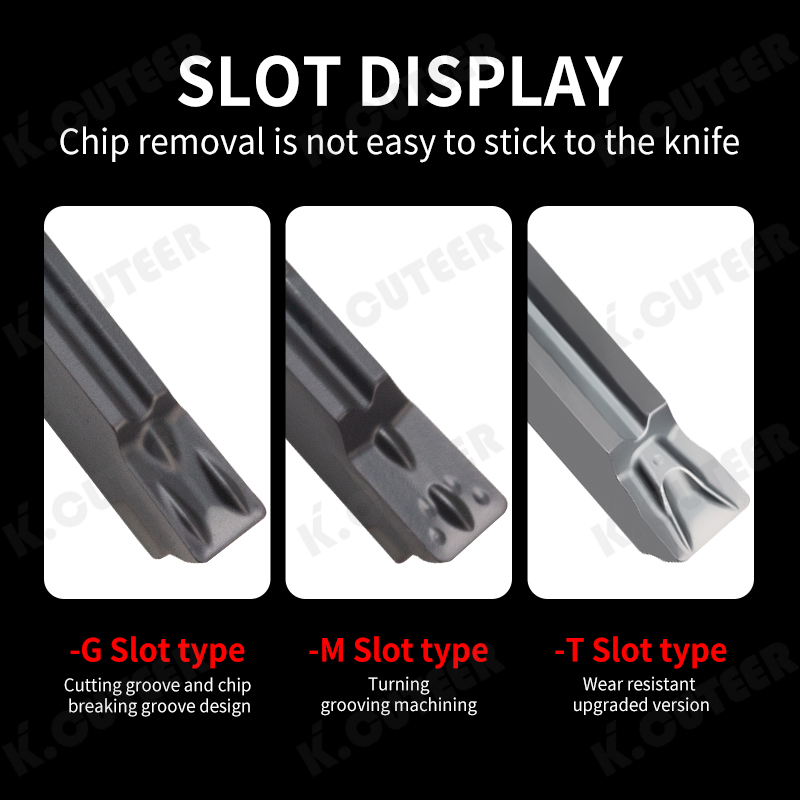

-G:finishing groove type.with strong chip removal capability.

-M:Universal groove type, both fine and coarse can be processed.

-T:Rough machining groove type, not easy to stick knife.

1. Insert Geometry (MGMN)

The MGMN code denotes a square-shaped, negative rake insert with a specific clamping hole design.

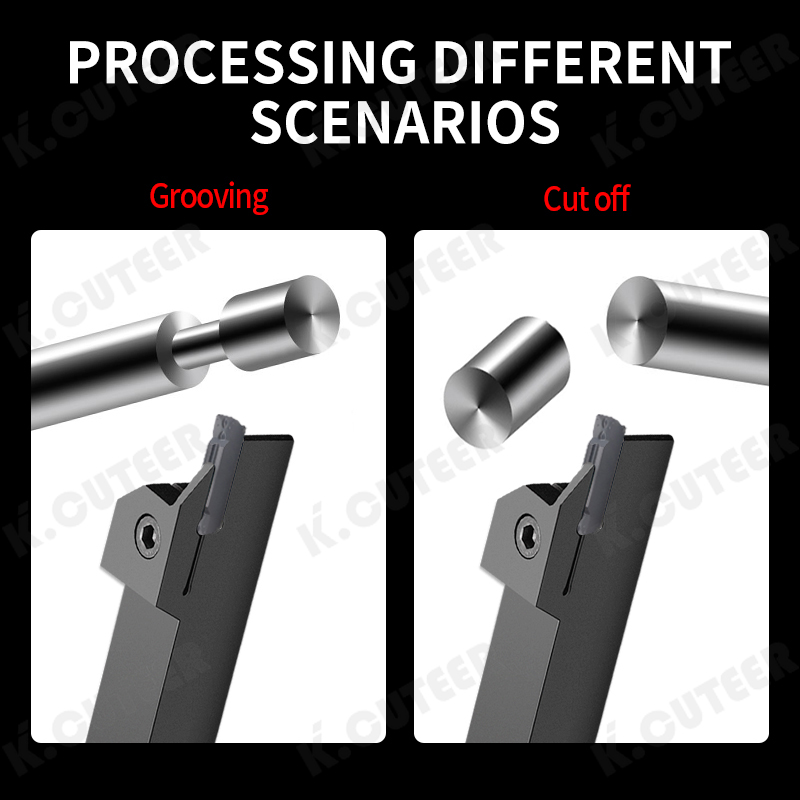

It is a versatile insert used for:

Grooving
Cut-off (parting)
Light side-turning (copying)

The "M" typically indicates a tolerance class suitable for precision machining.

2. Grade (YZ735)

YZ735 is a premium grade from ISCAR's SUMO TEC coated grade family.
It features a micro-grain carbide substrate and a generation of PVD (Physical Vapor Deposition) coating.
This combination is specifically optimized to handle the tough, abrasive, and work-hardening nature of:

Stainless Steels (e.g., 304, 316, 17-4PH)
High-Temperature Alloys (e.g., Inconel, Waspaloy)
Titanium Alloys

3. Key Advantages

Superior Edge Security: The tough substrate and sharp PVD edge provide excellent resistance to chipping and micro-breakage, which is critical when machining sticky materials like stainless steel.
Excellent Wear Resistance: The specialized coating resists both abrasive and diffusive wear, leading to longer, more predictable tool life.
Controlled Chip Formation: The geometry of the MGMN insert is designed to create manageable chips in difficult-to-break materials, preventing long, stringy chips that can damage the workpiece and tool.
High Productivity: Allows for higher reliable speeds and feeds compared to standard grades, reducing machining time.

4. Applications

This insert is ideal for:

Grooving and cut-off operations on stainless steel shafts and components.
Machining components for the oil & gas, aerospace, and chemical processing industries.
Any application where reliable performance in sticky or work-hardening materials is required.

In summary, the MGMN YZ735 insert combines a versatile grooving geometry with a tough, sharp grade specifically designed to boost productivity and reliability in stainless steel and high-temperature alloy machining.
