Product Description:

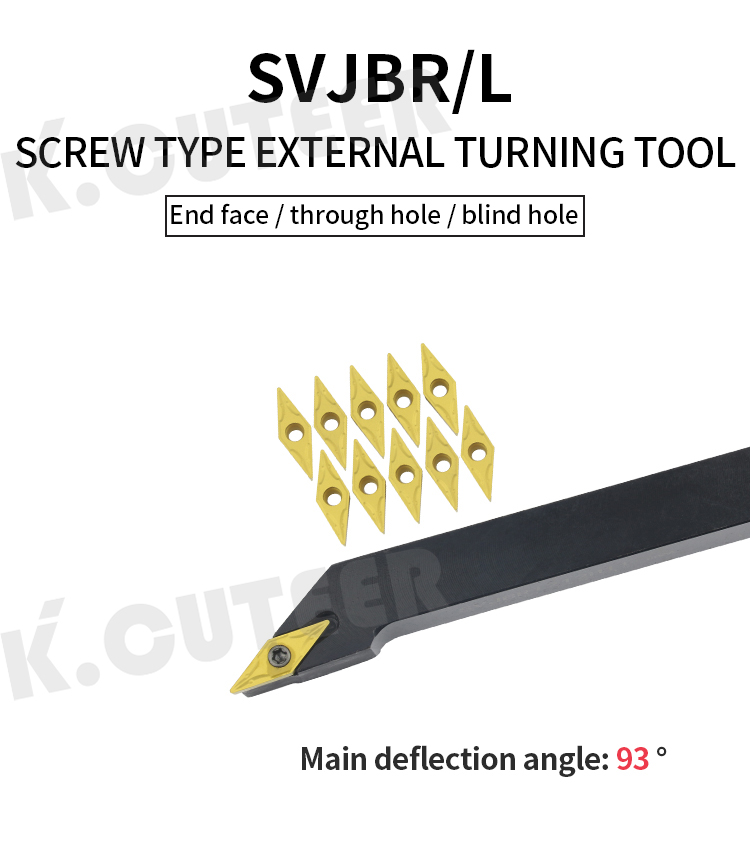

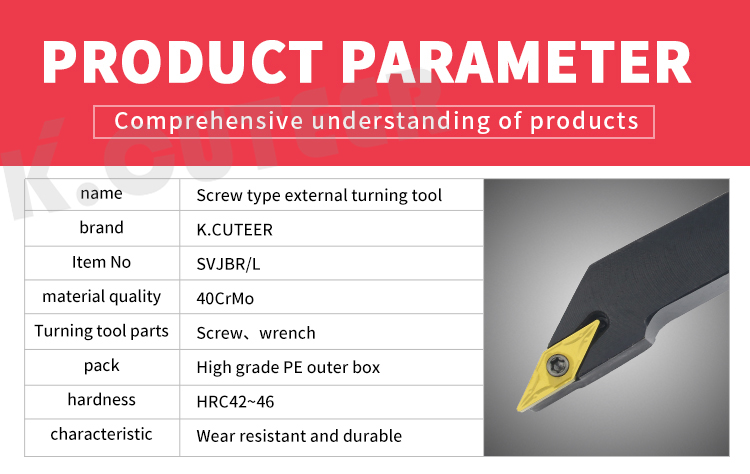

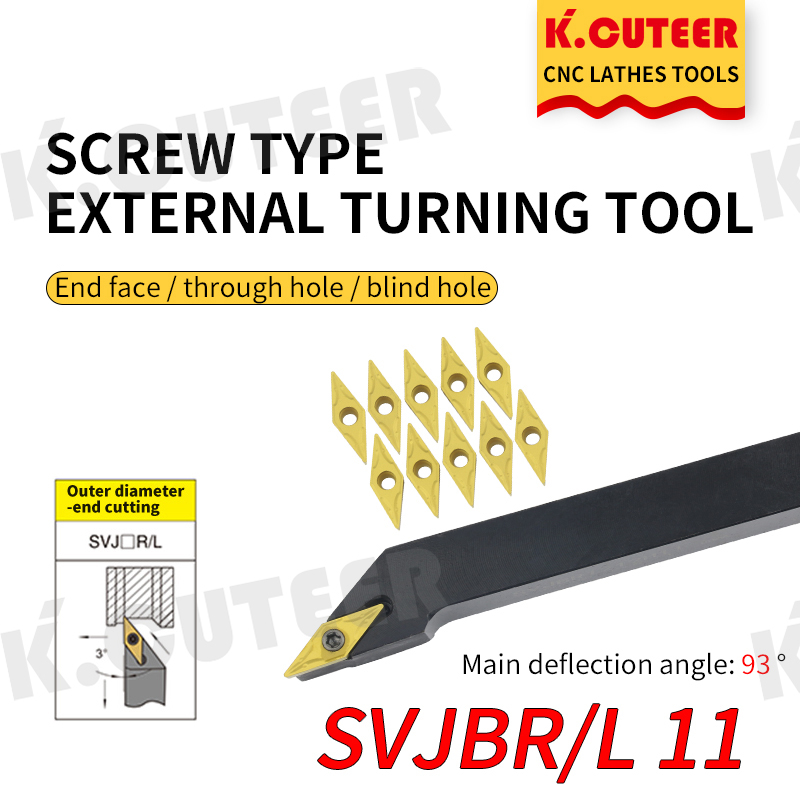

Name:Screw type external turning tool
Brand: Keencuteer
Material:40Cr-42CrMo
Accessories:Screw,Clamp.
Hardness:HRC42-46

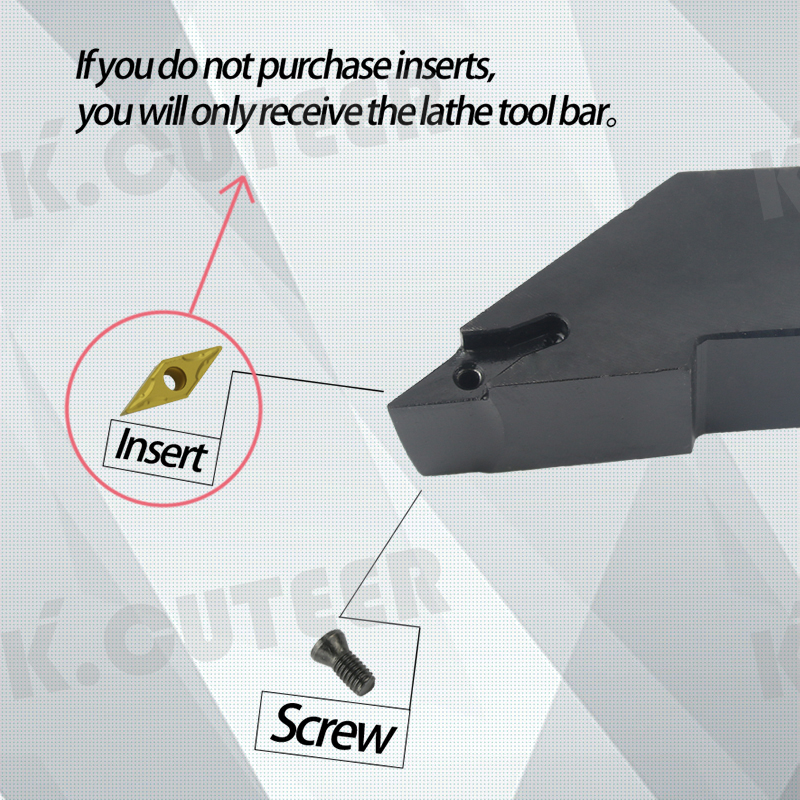

No insert :there is only one tool bar and wrench in the package.
No Cutter bar: you will get 10 pcs of insert per piece
If you choose both insert and holder, you will receive 10pcs insert, 1pcs holder and wrench.
Package Included :
1. Perfect machining effect.
2. Perfect surface finish.
3. High tensile strength and anti abrasion finish.
4. Specification and accuracy are fully compliance with ISO standard.
5. apply in Turning and Facing working.
6. More other Lathe Tools are produced in our factory, such as Boring tool holder, Grooving tool holder,threading tool holder.
Key Features & Applications:
1. Application & Materials: This holder is suitable for the external turning, facing and copy machining of small diameters. It is a preferred choice for machining stainless steel (ISO M), high-temperature alloys (ISO S), and steel (ISO P).
2. Cooling Advantages: Many holders in this series support internal coolant supply, which helps improve chip breaking performance, especially when coolant pressure is above 40 bar. Precise cooling on the rake and flank faces can increase tool life by 30-150%.
Selection & Usage Notes:

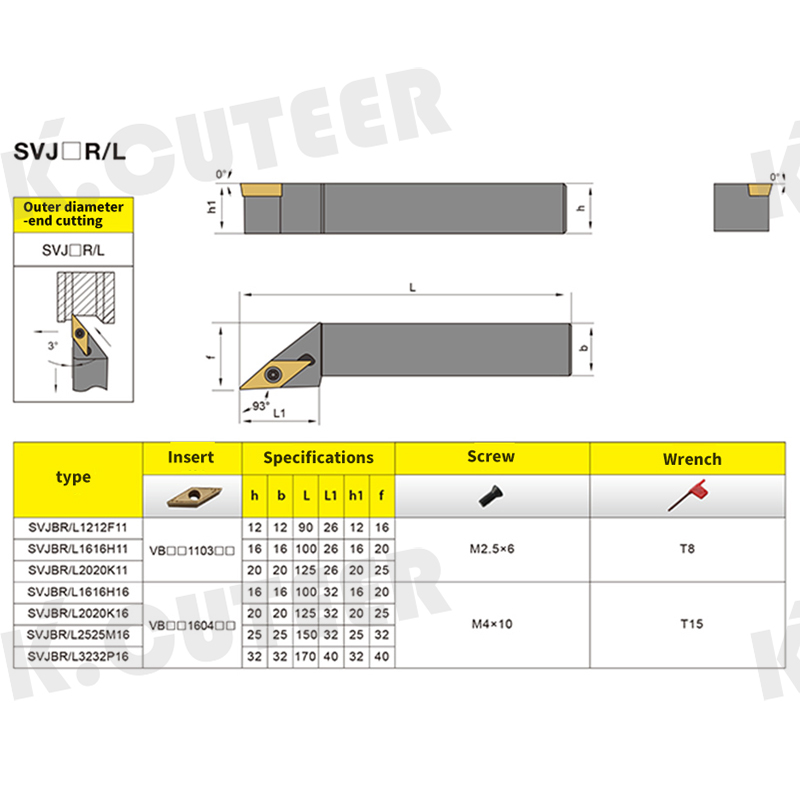

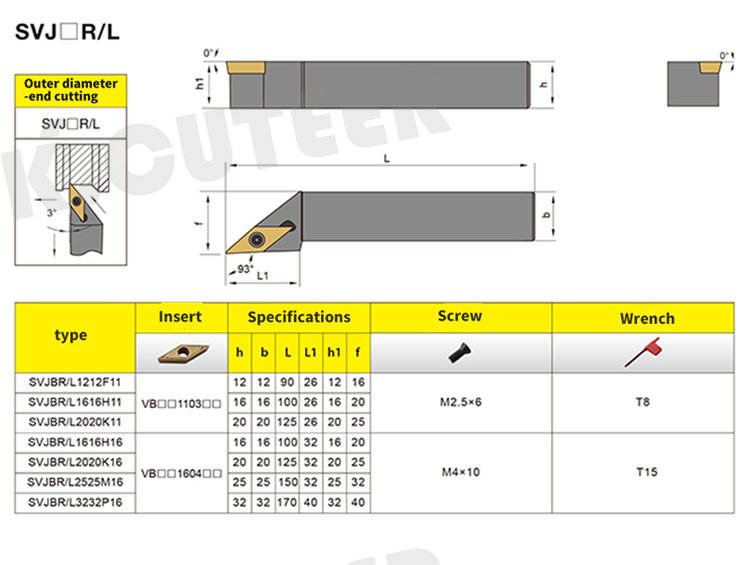

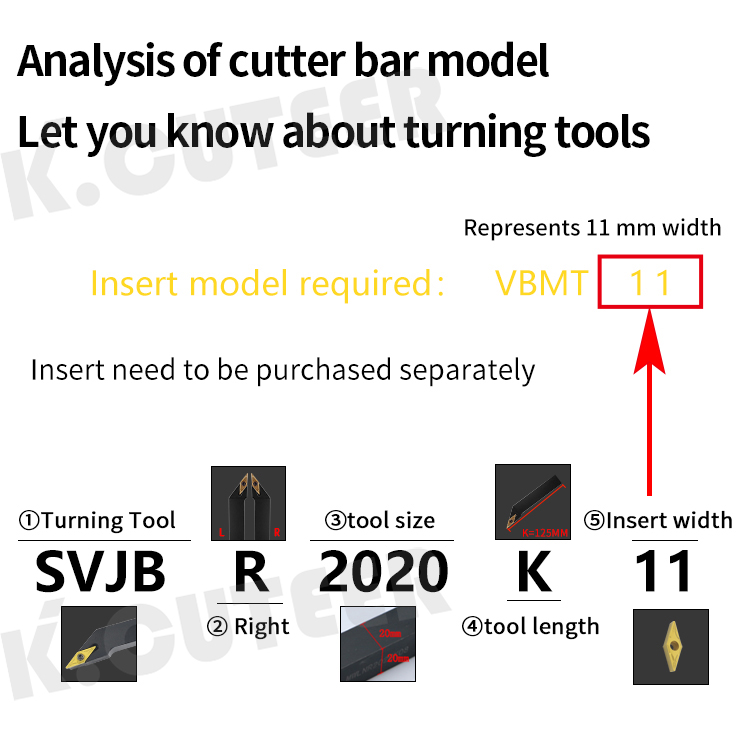

1.Insert Matching: Always use the compatible VB..1103.. inserts (e.g., VBMT1103) and the correct bolt kit (e.g., 269028 22).
2.Rigidity Consideration: Select a shank size (e.g., 16mm, 20mm, 25mm) that provides sufficient rigidity for your specific machining application.

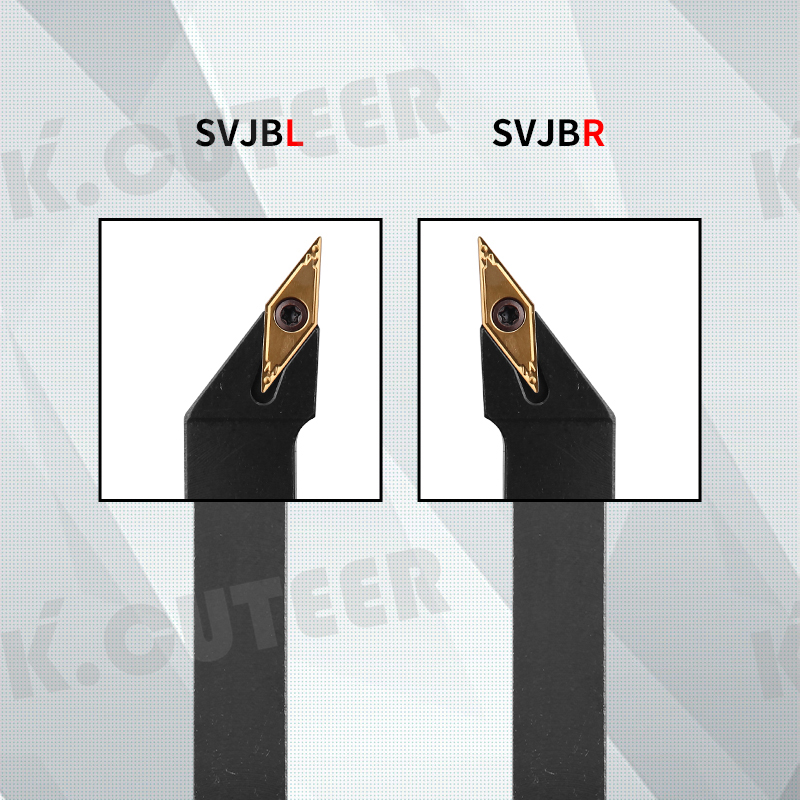

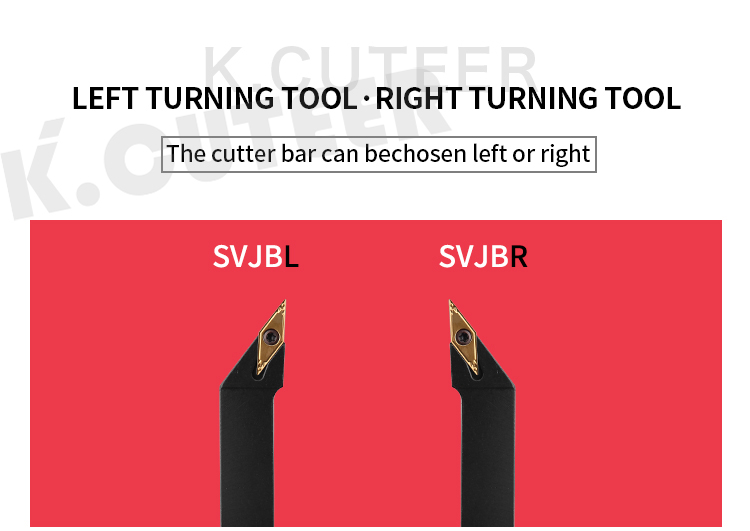

3.Handing Selection: Ensure you choose the correct right-hand (R) or left-hand (L) version based on your machine and operation requirements.
