| Quantity: | |
|---|---|
Number Of Edges:Single flute
Drilling Depth Type: 2.25D/3.25D

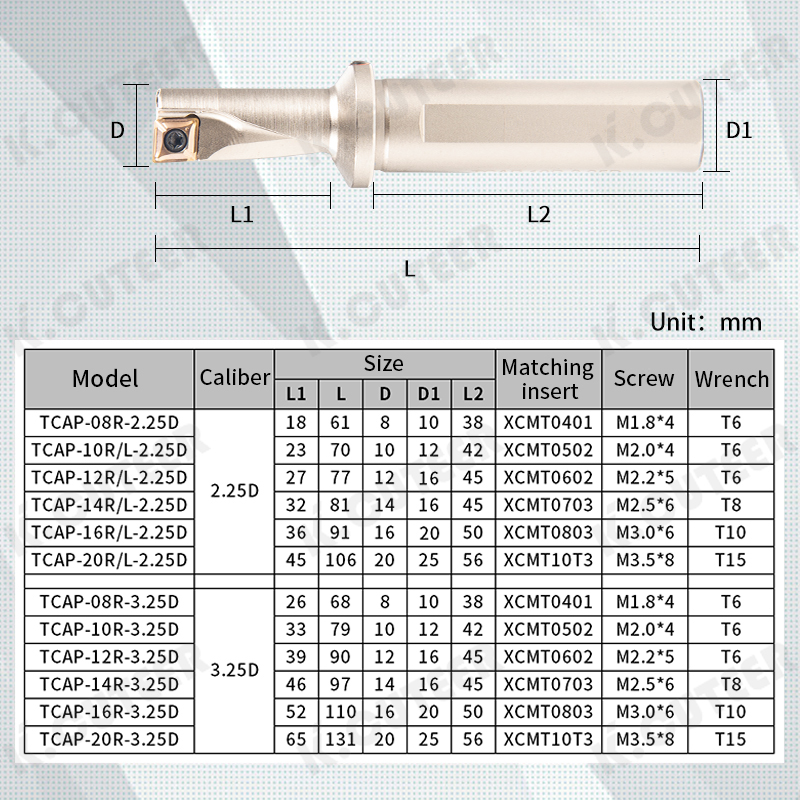

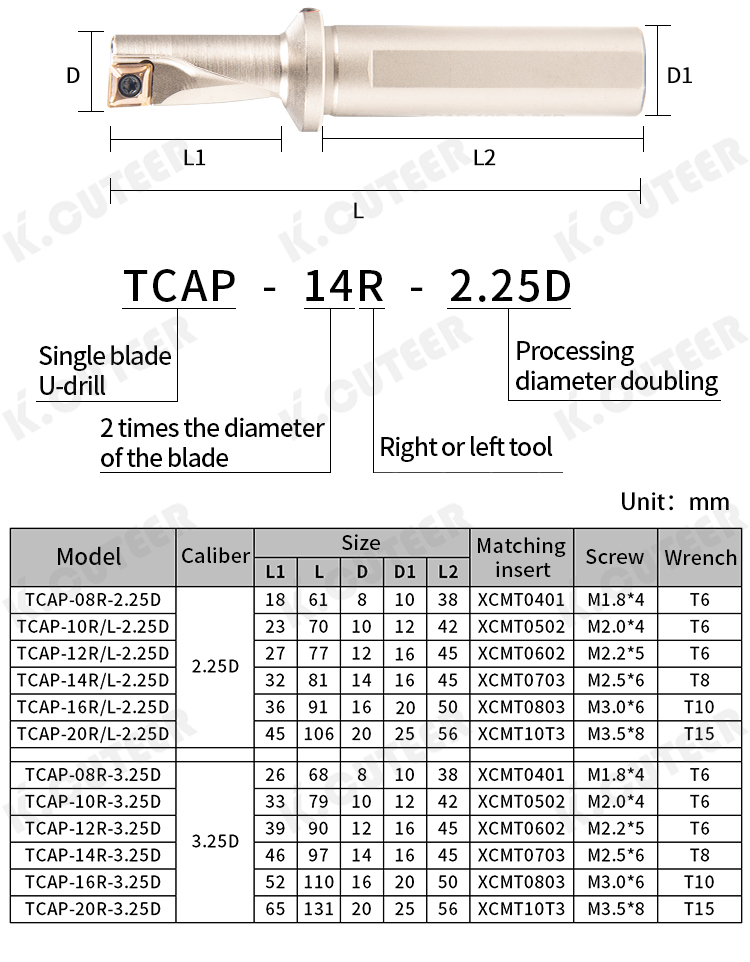

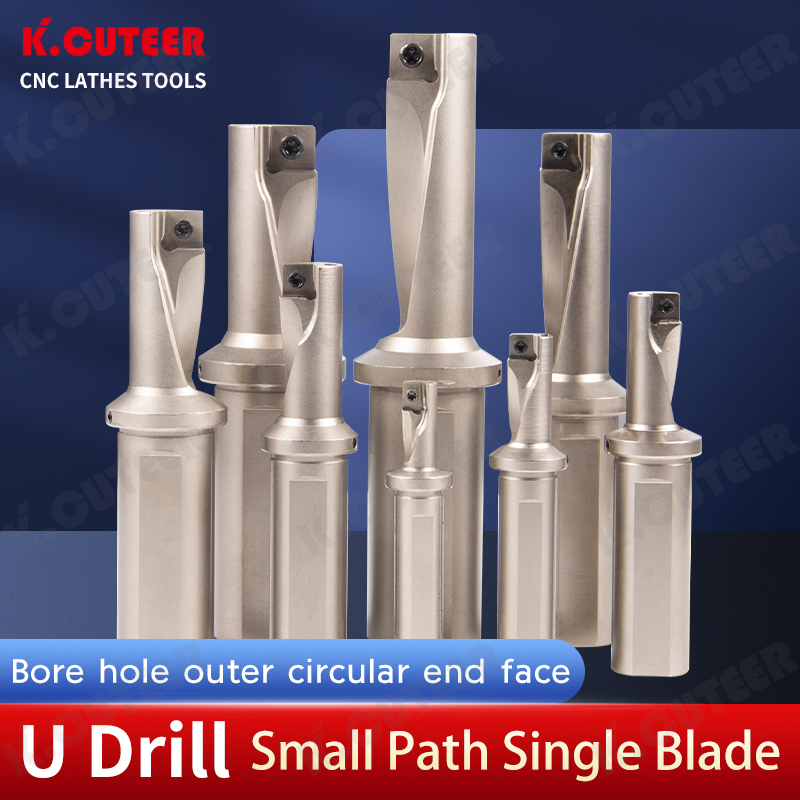

U Drill Model:TCAP
Insert Model:XCMT
Toolholder Material:High strength spring steel
Insert Material:YZ5010S/YZ15TF/KT1505
Included
The U-drill itself does not include the insert,the insert needs to be purchased additionally!
Insert: One quantity includes 10 pcs.
Depends on exactly what you buy!

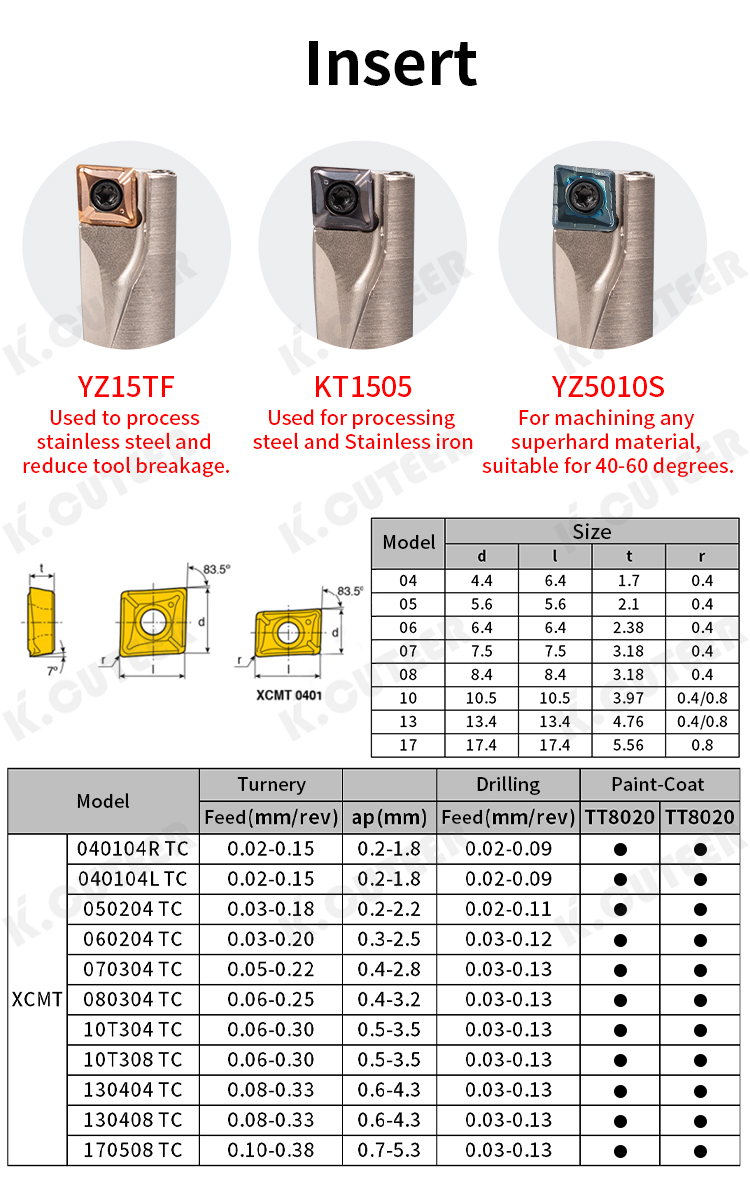

Insert Material Description
YZ5010S: suitable for high hard steel, quenched steel, gear steel, bearing steel below 40-50 degrees, also can be used for difficult to process stainless steel material.
YZ15TF: Suitable for 201, 304, 316 and other hardened stainless steel.
KT1505: suitable for: stainless steel, A3 steel / 45# steel 20CrMo / 40CrMo and other steel parts below 35 degrees.
Feature

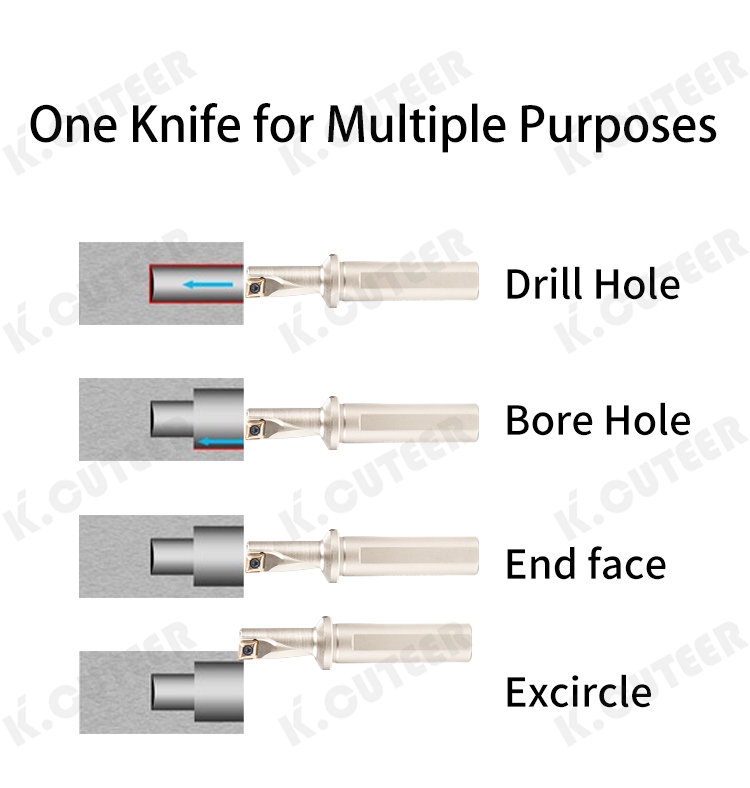

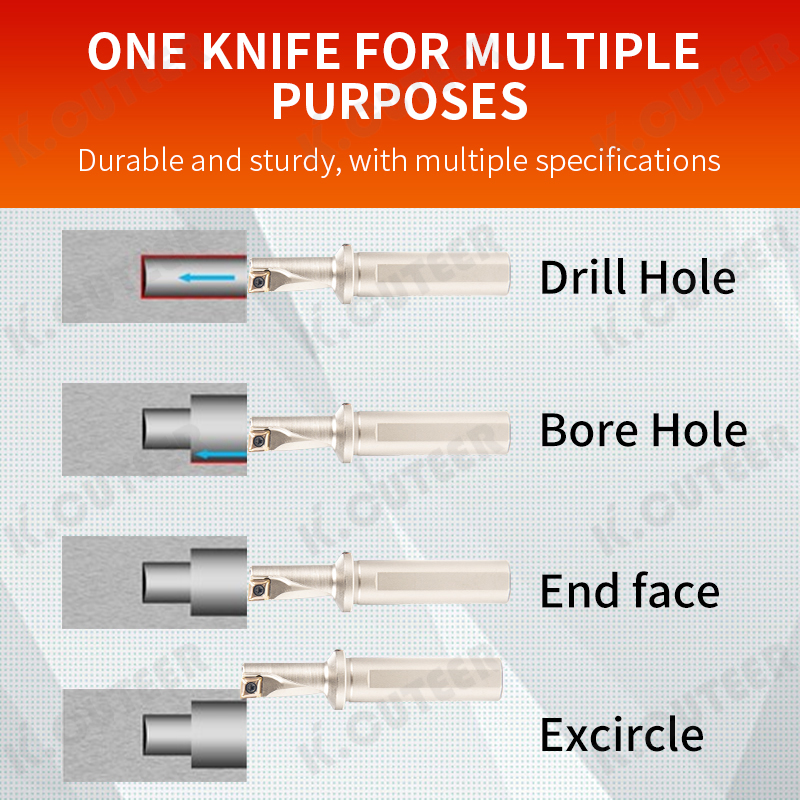

1. Widely used, can be applied to drilling, boring, end face, external circle, can greatly save the installation and tool change time, shorten the processing process, improve efficiency

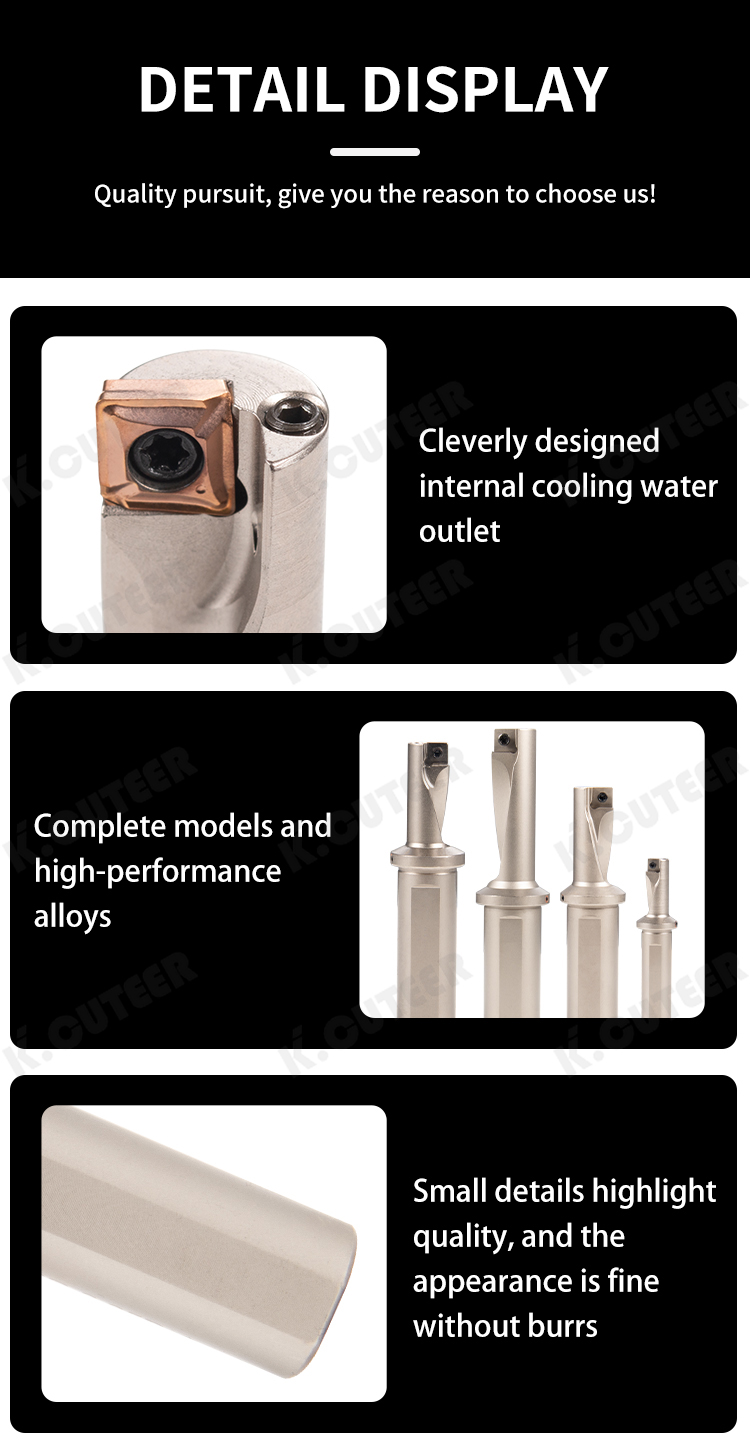

2. The tail part adopts precision tube teeth, the head adopts the design of enlarged water hole, excellent internal cooling system, longer service life
3. The tool bar is made of high strength spring steel, which has stronger anti-vibration effect.
