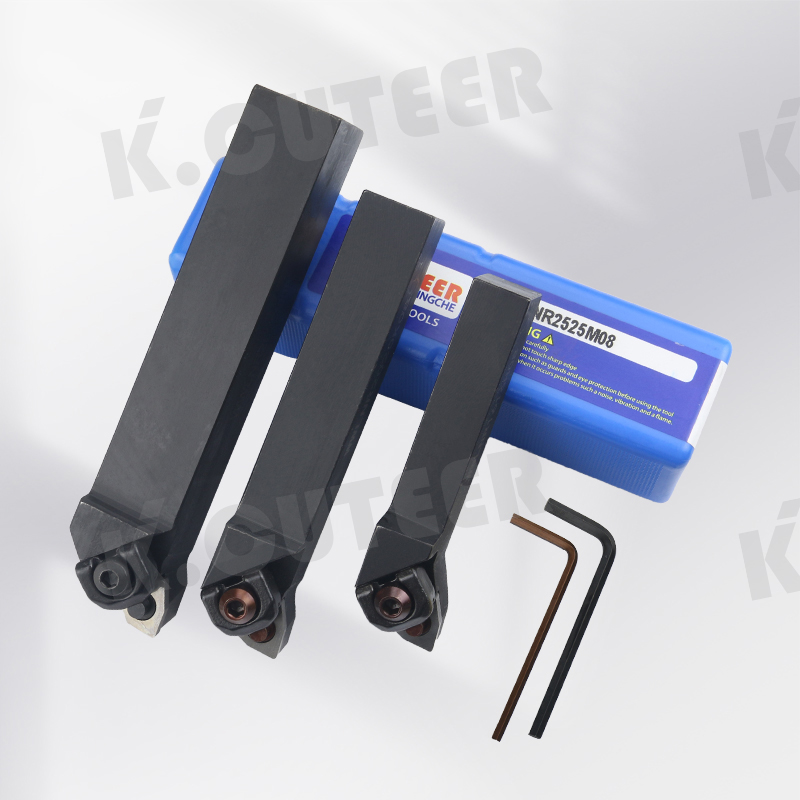

External Turning Tool Holder WNMG Carbide Inserts WWLNR Lathe Bar CNC Cutting Tools Set

Home » Products » Turining Tool Holder » Clamp External Turning Tool » External Turning Tool Holder WNMG Carbide Inserts WWLNR Lathe Bar CNC Cutting Tools Set

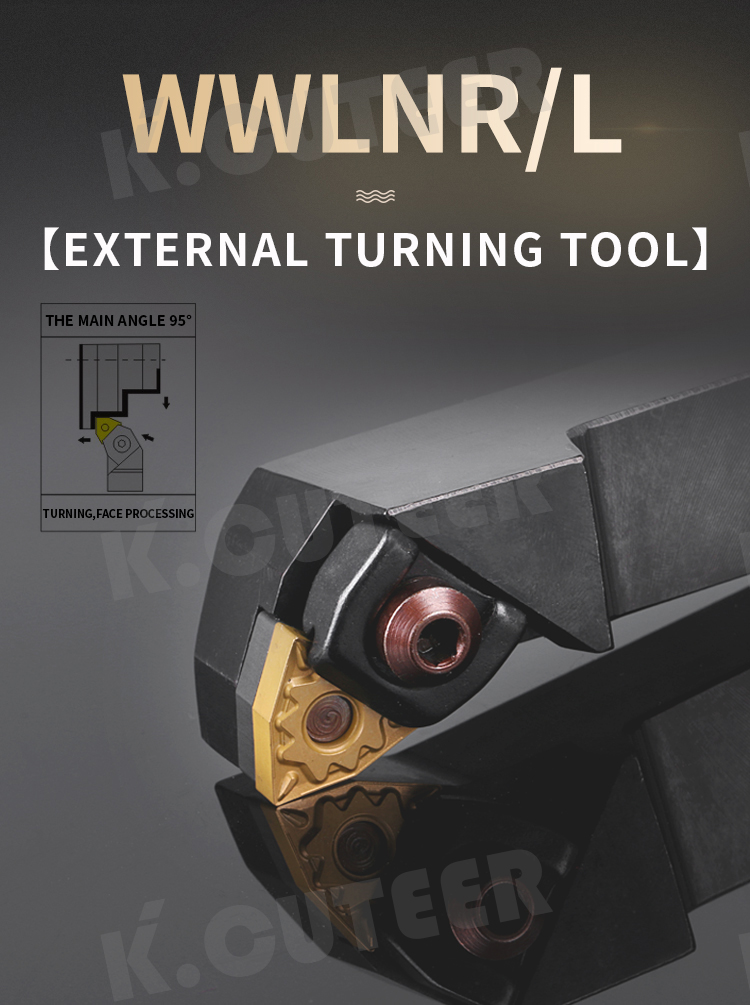

External Turning Tool Holder WNMG Carbide Inserts WWLNR Lathe Bar CNC Cutting Tools Set

Product sellpoints
Durable Heat Treatment:Undergoes a 1060°C high-temperature quenching process for enhanced strength, hardness, and wear resistance.
Precision Engineering:Compliant with ISO standards, the tool holder ensures precise machining and a perfect surface finish.

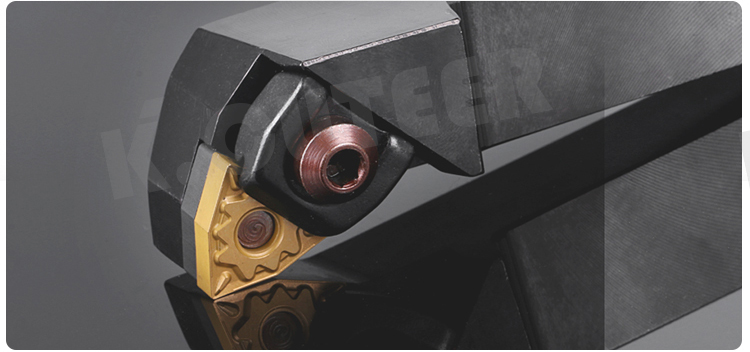

Secure Clamp Design:Features a Clamp type turning tool for a firm grip on inserts, reducing the risk of loosening during use.

Availability:

Quantity:



Inquire Add to Basket

Lathe Bar CNC Cutting Tools Set External Turning Tool Holder Carbide Tool lathe turning tool holders brazed carbide turning tool knife blade

Product Description

Specification:

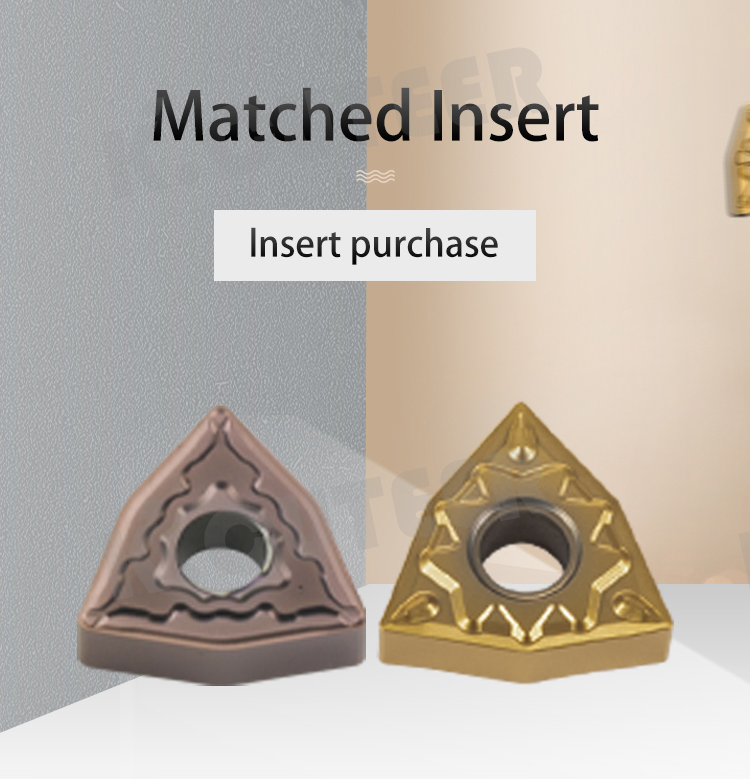

WNMGJC600 : Used for processing steel parts.
WNMG KT930S: upgraded version of kt930, used for stainless steel processing.
WNMG HO1: For aluminum and copper parts processing.
WNMG KT5115: Used for processing cast iron.
WNMG KT60: Ceramic blade, used for processing mild steel.
WNMG YZ6030:High hardness, used for processing steel parts below 45 degrees.

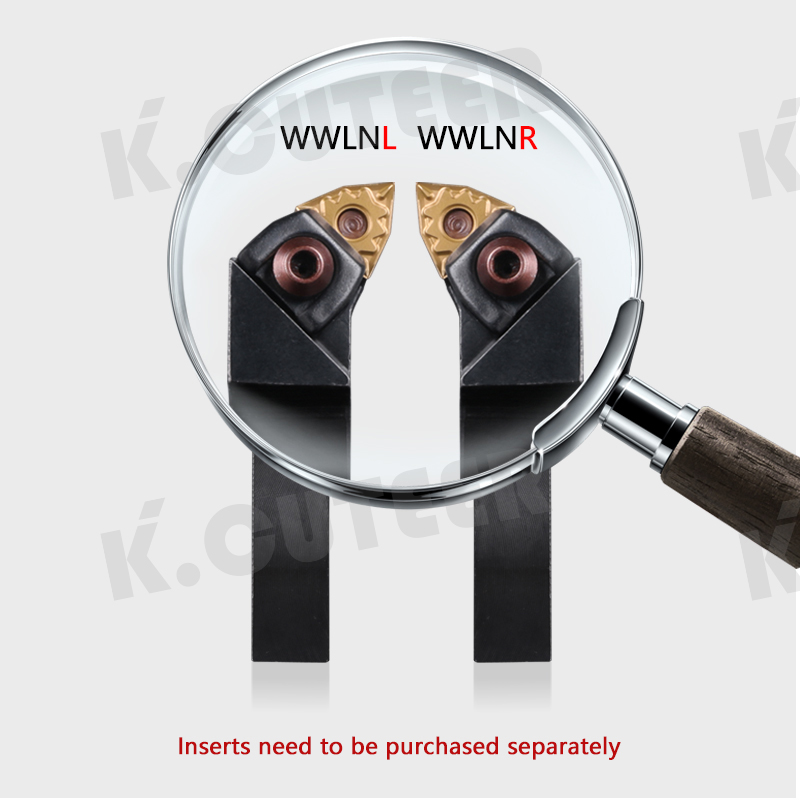

R/L-S : slotted blade.
The holder : Pin up-pressing structure.

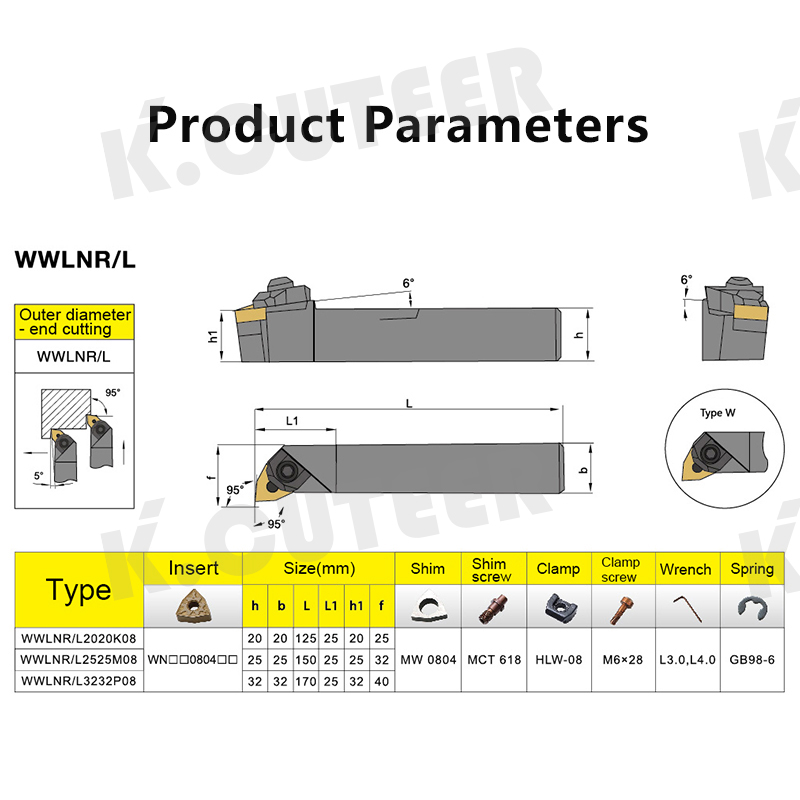

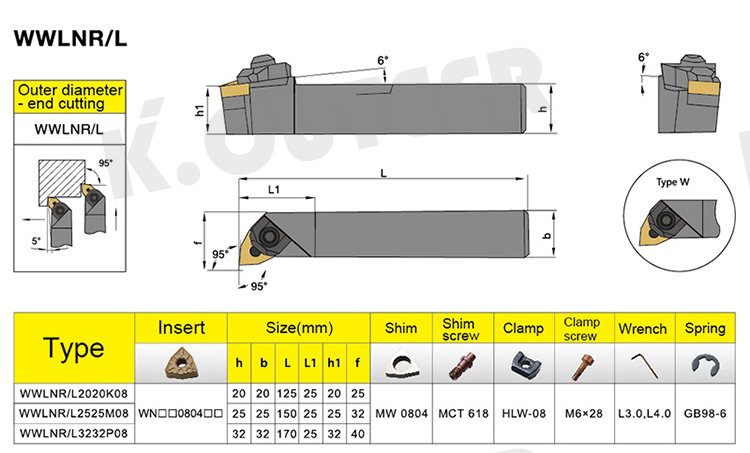

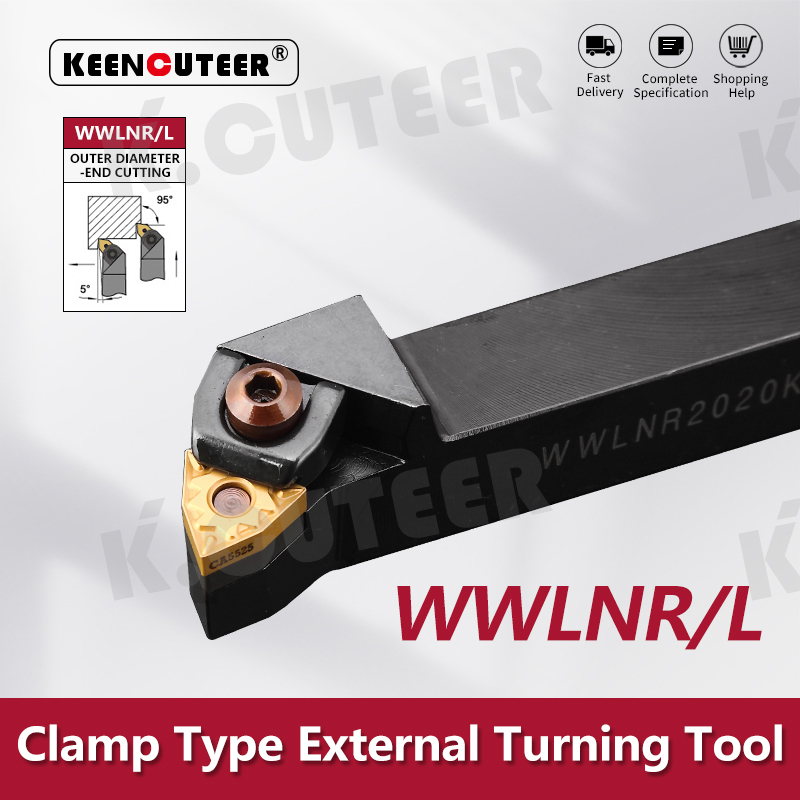

Name:Clmap type external turning tool

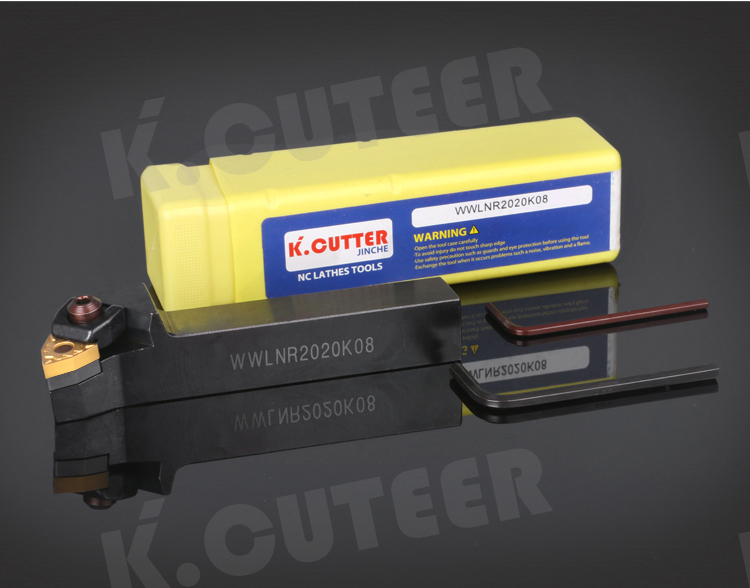

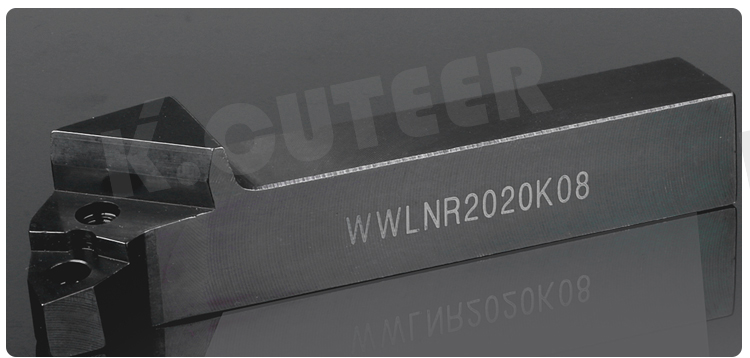

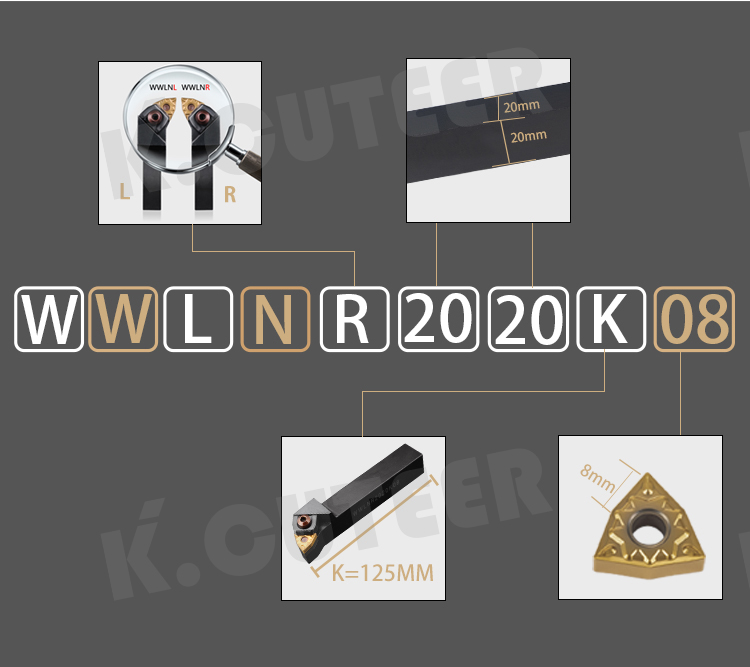

Modle:WWLNR
Brand: Keencuteer
Material:40Cr-42CrMo

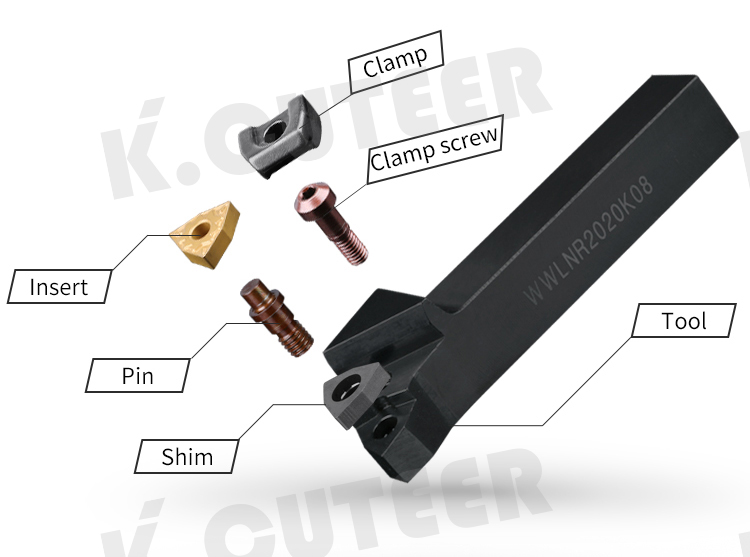

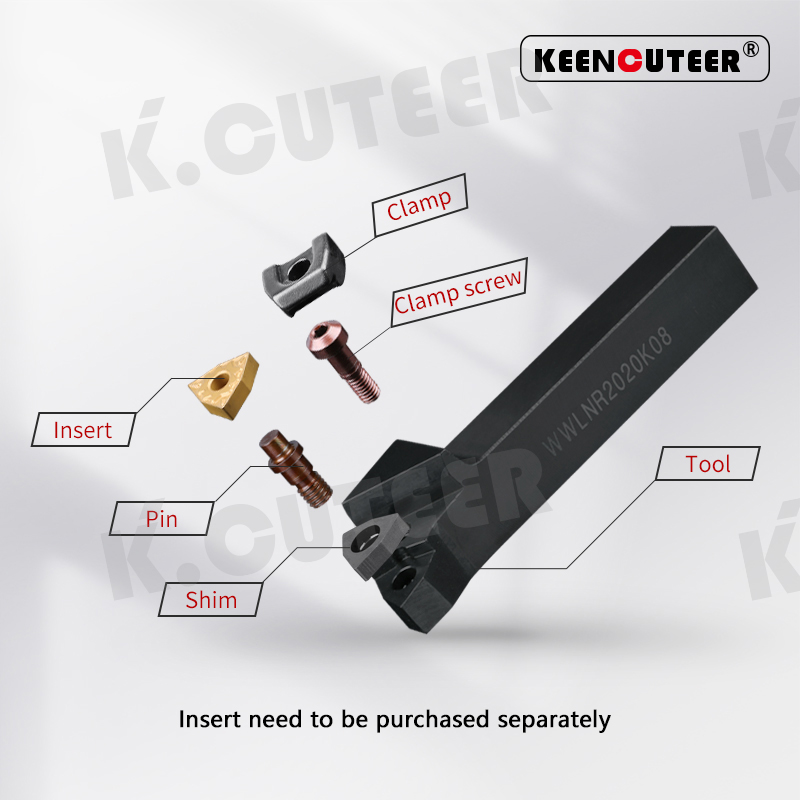

Accessories:Screw、Wrench、Clamp、shim、pin.
Hardness:HRC42-46

详情页_01 详情页_02 详情页_04 详情页_05_02 详情页_07_02 详情页_08 详情页_09_02 详情页_10 详情页_11 详情页_12
