Cast Iron Machining Suitable CNC Lathe Turning Tools Vnmg Insert Steel

The VNMG YZ5115 is a carbide insert specifically developed for machining cast iron, balancing wear resistance and edge security for efficient operations.

Geometry (VNMG): A versatile 35-degree diamond shape suitable for turning, facing, and contouring of cast iron components.

Grade: YZ5115: This grade designation indicates a CVD-coated carbide. The coating is typically a multi-layer combination (like MT-TiCN+Al₂O₃+TiN), optimized to resist the abrasive nature of cast iron.

Key Application: It is an excellent all-purpose choice for machining various types of cast iron, including:

Gray Iron (GCI)

Ductile Iron (Nodular Iron)

Compacted Graphite Iron (CGI)

Performance: It delivers reliable performance in roughing to finishing operations, offering good tool life and consistent results in both continuous and lightly interrupted cuts.

Availability:

Quantity:



Inquire Add to Basket

Turning insert Insert CNC Inserts tungsten carbide insert Indexable Carbide Insert CNC Machines blade CNC blades milling cutter bar cast iron

Product Description

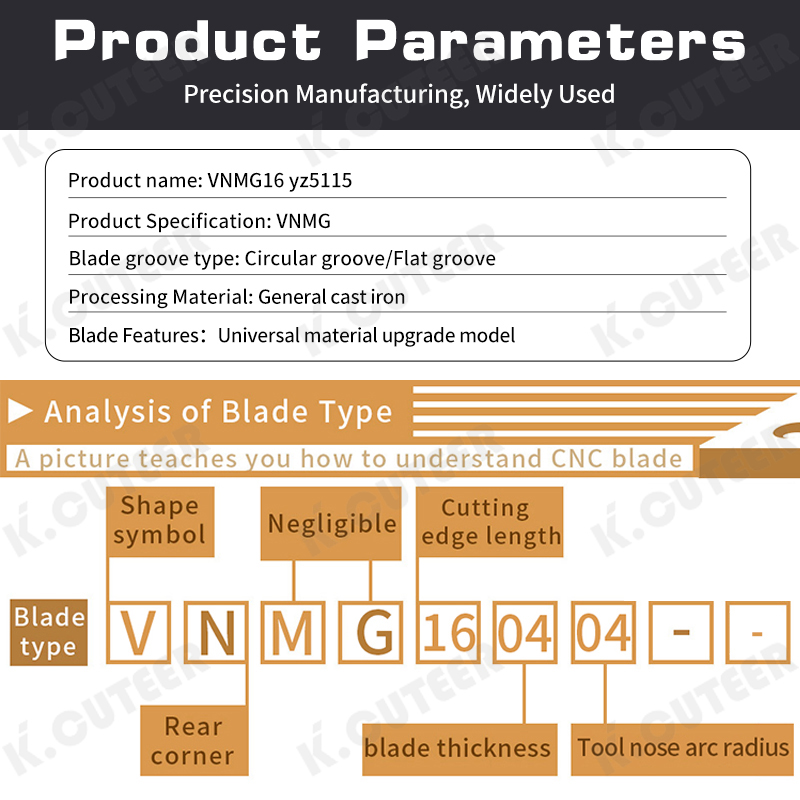

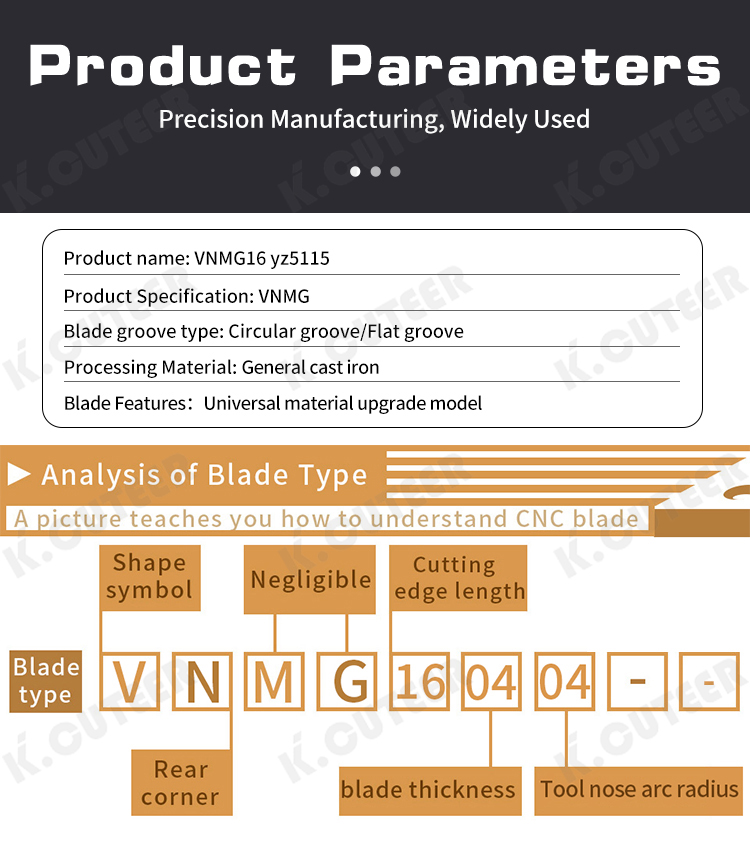

Specification:

Name: CNC Insert for cast iron
Brand: KEENCUTEER
Item No.: VNMG
Material: Hard Alloy
Fit for: MVJNR/L
Processing material: cast iron

YZ5115: Upgraded version,Good toughness,Used for processing cast iron.

Features:

1. Reduce friction between chips and workpieces to achieve better surface roughness.
2. Sharp edges with good chip removal effect.
3. More wear-resistant, reducing tool replacement, and improving production efficiency.
4. Complete specifications and high cost-effectiveness.

详情_01 详情_02 详情_04 详情_03 详情_05 详情_07 详情_06
