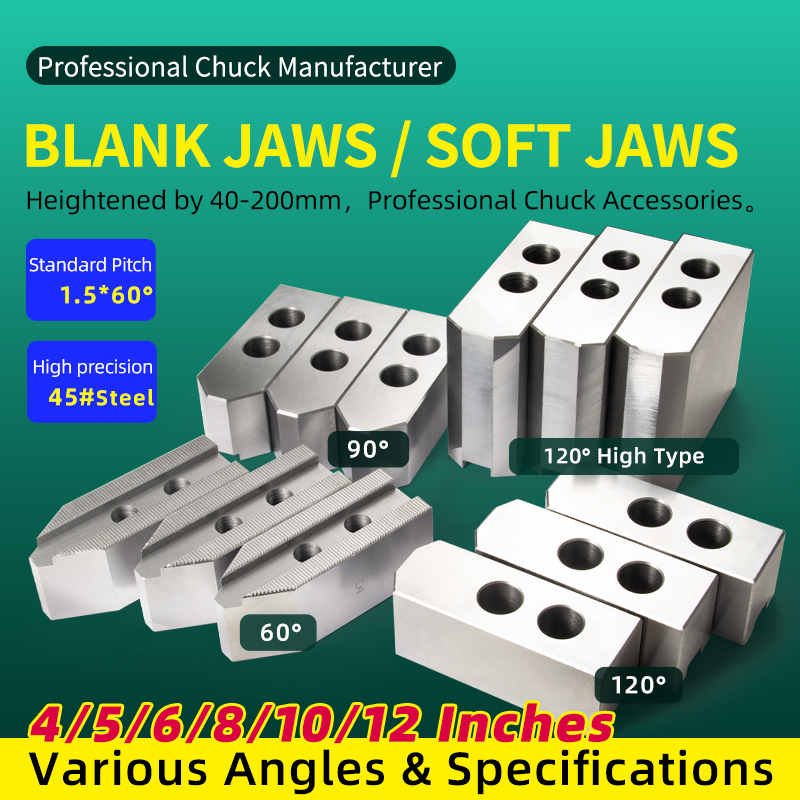

Hydraulic Chuck 60-Degree Lathe Hydraulic Jaw Heightened Lengthened and Thickened

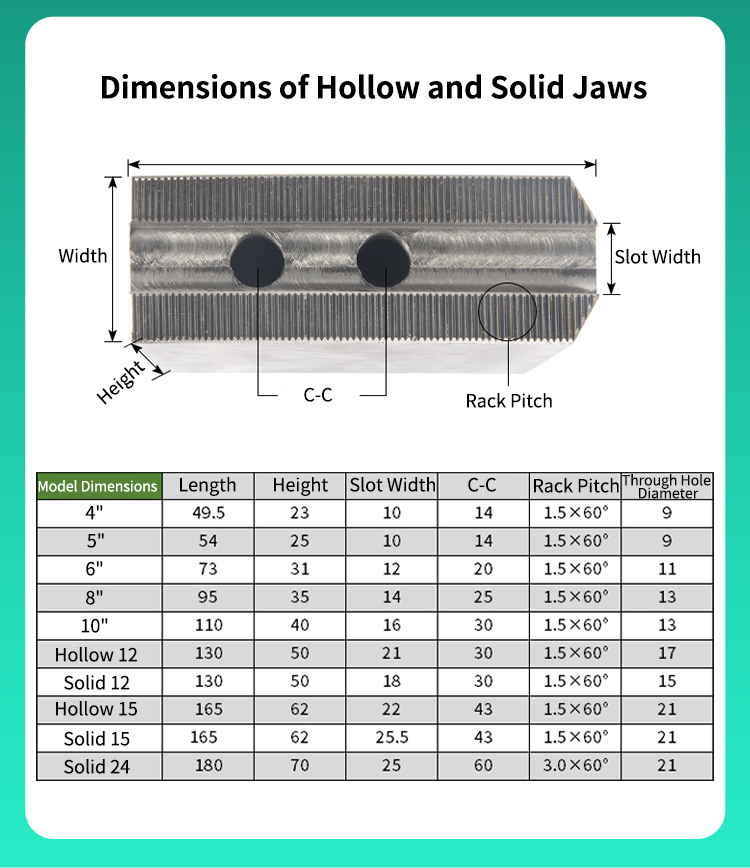

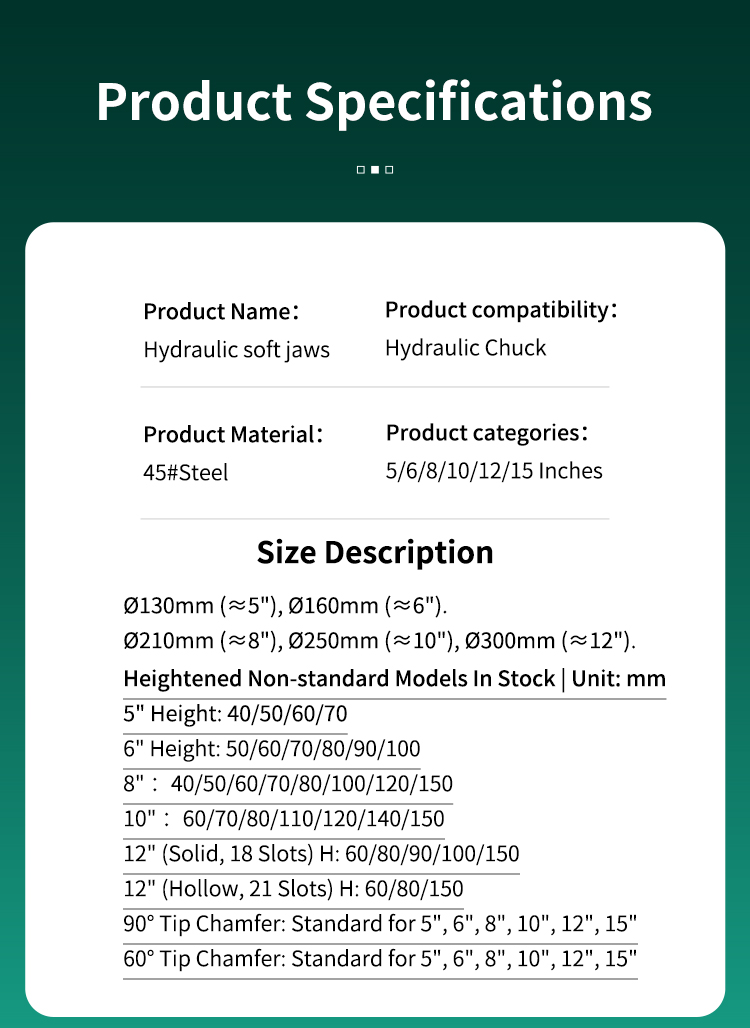

Chuck diameters around 130 are 5 inches, around 160 are 6 inches, around 210 are 8 inches, around 250 are 10 inches, and around 300 are 12 inches. Non-standard height available in stock, unit: mm
5-inch height: 40/50/60/70
6-inch height: 50/60/70/80/90/100
8-inch height: 40/50/60/70/80/100/120/150
10-inch height: 60/70/80/110/120/140/150
12-inch (solid center, 18 slots) height: 60/80/90/100/150
12-inch (hollow center, 21 slots) height: 60/80/150

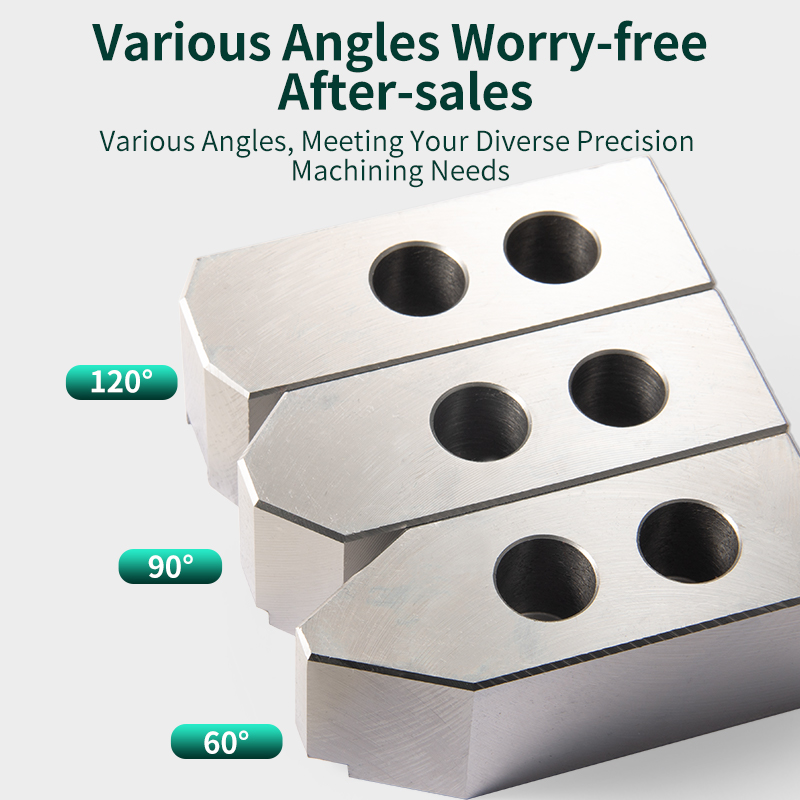

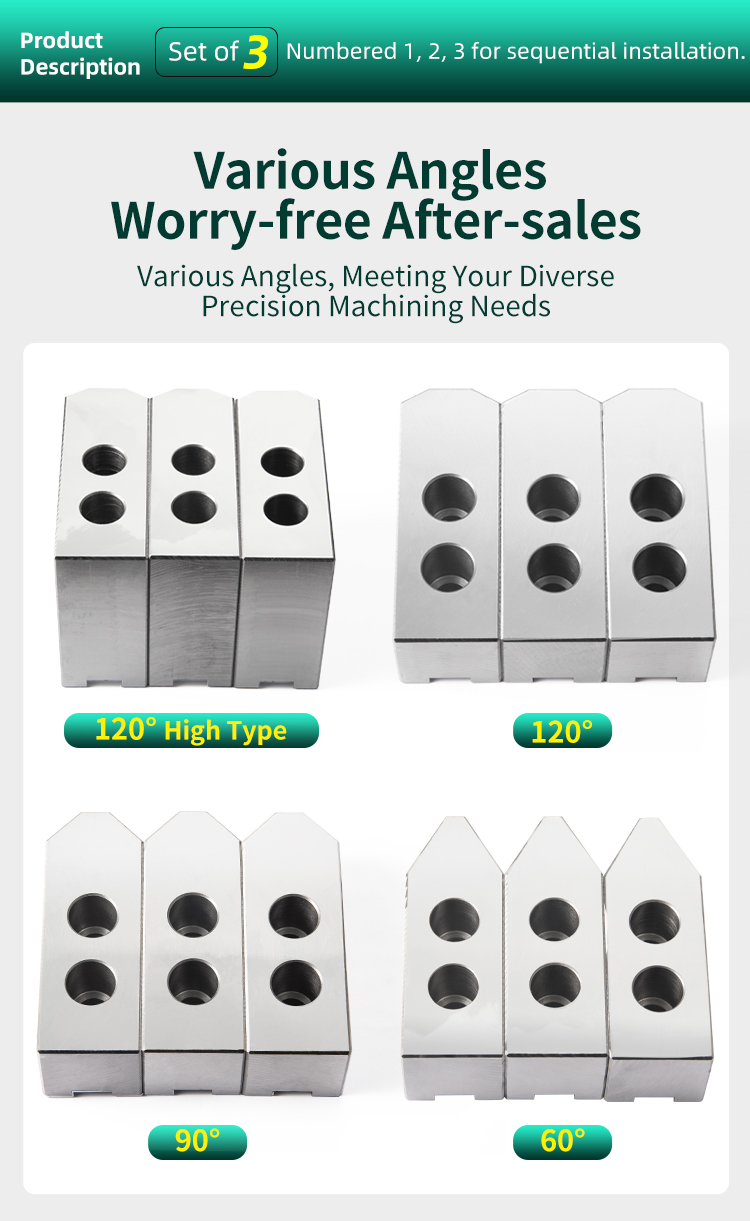

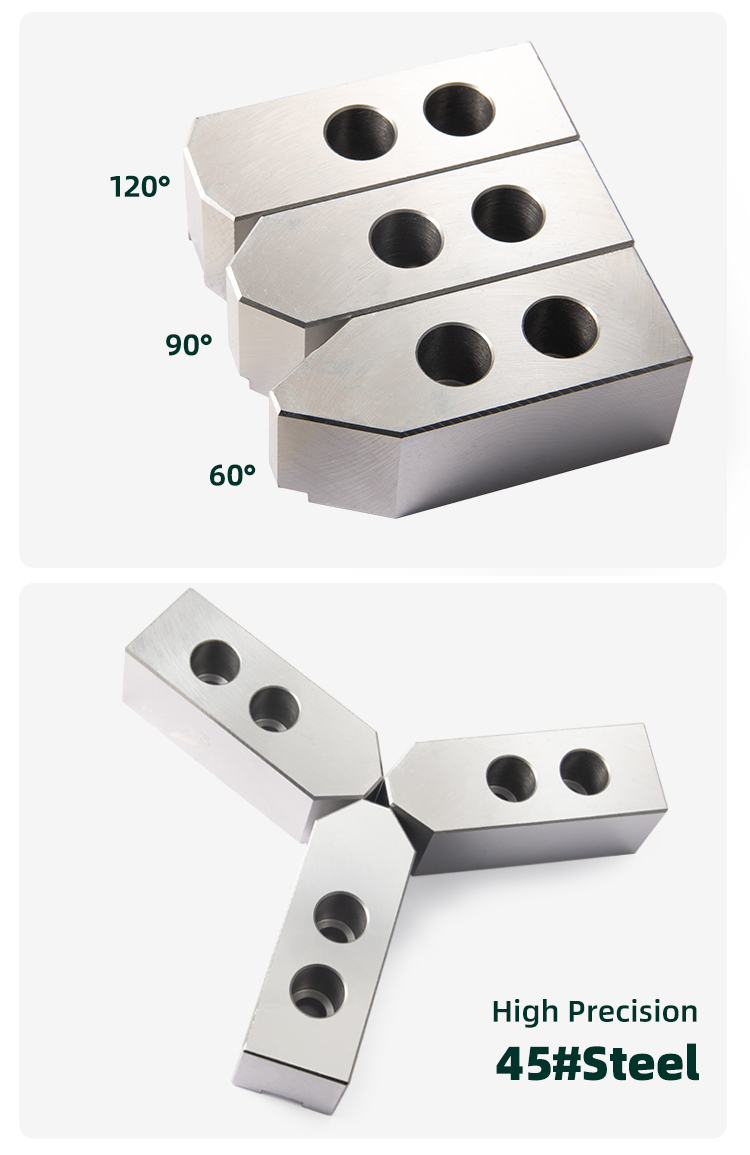

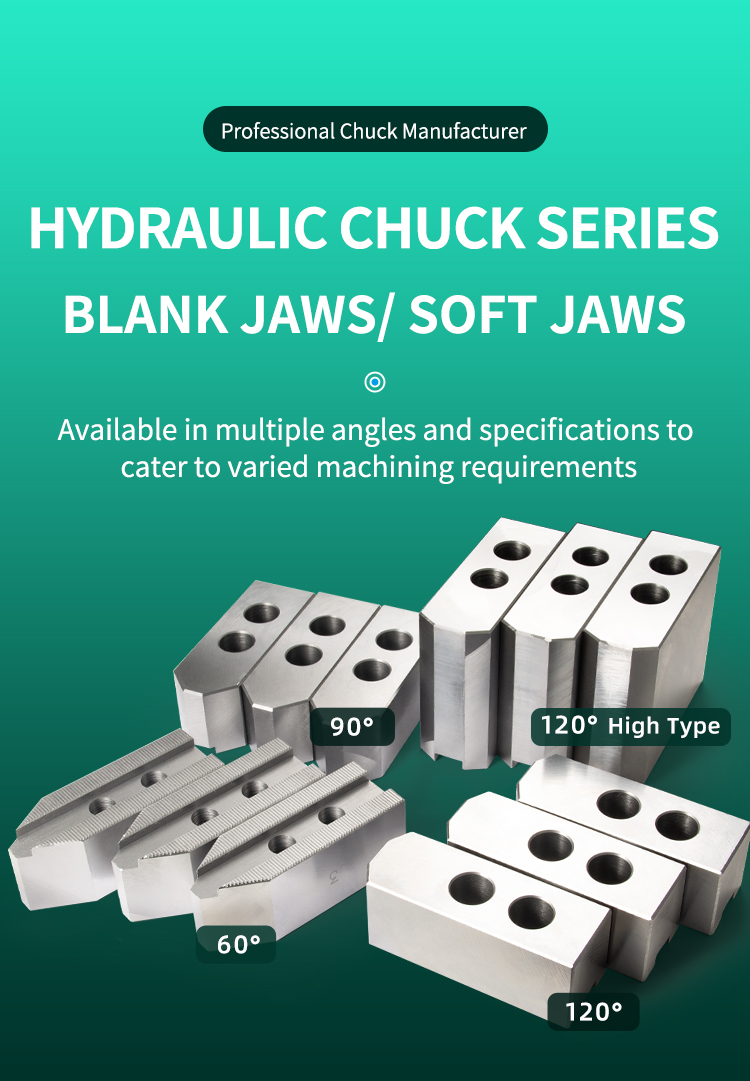

Tip chamfer 90°: standard for 5-inch, 6-inch, 8-inch, 10-inch, 12-inch, 15-inch
Tip chamfer 60°: standard for 5-inch, 6-inch, 8-inch, 10-inch, 12-inch, 15-inch
