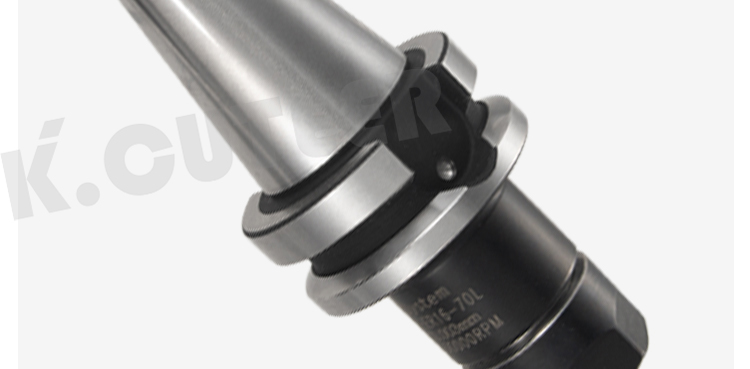

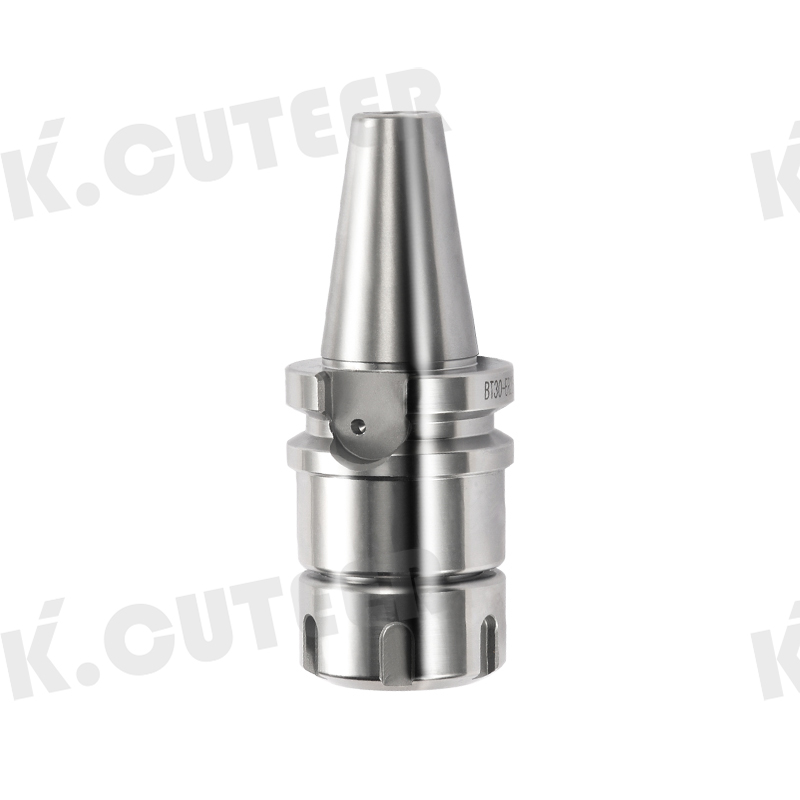

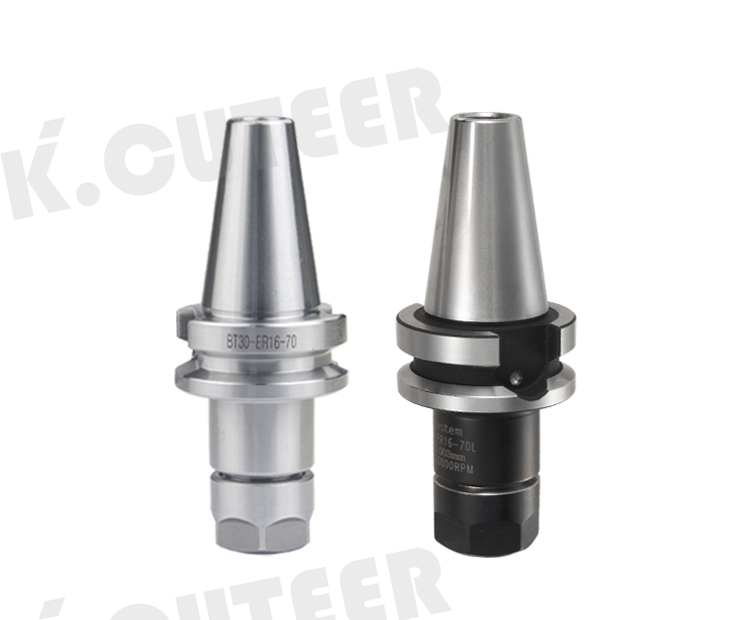

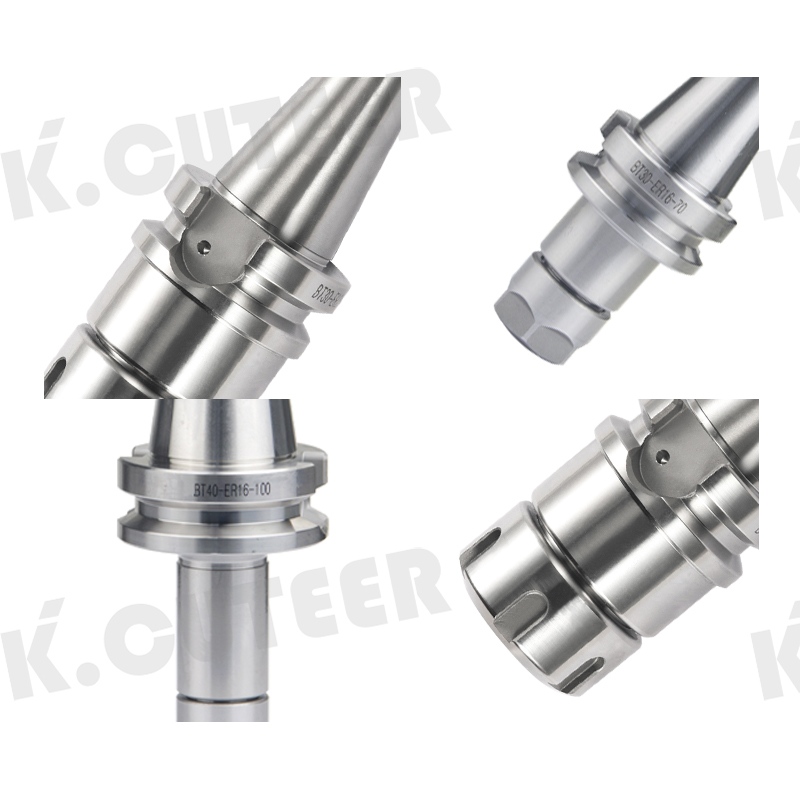

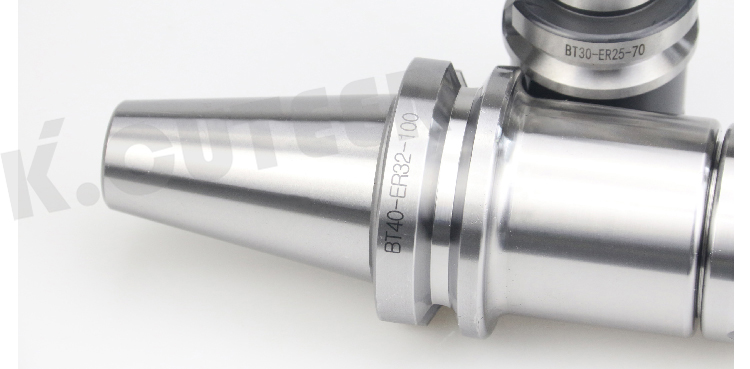

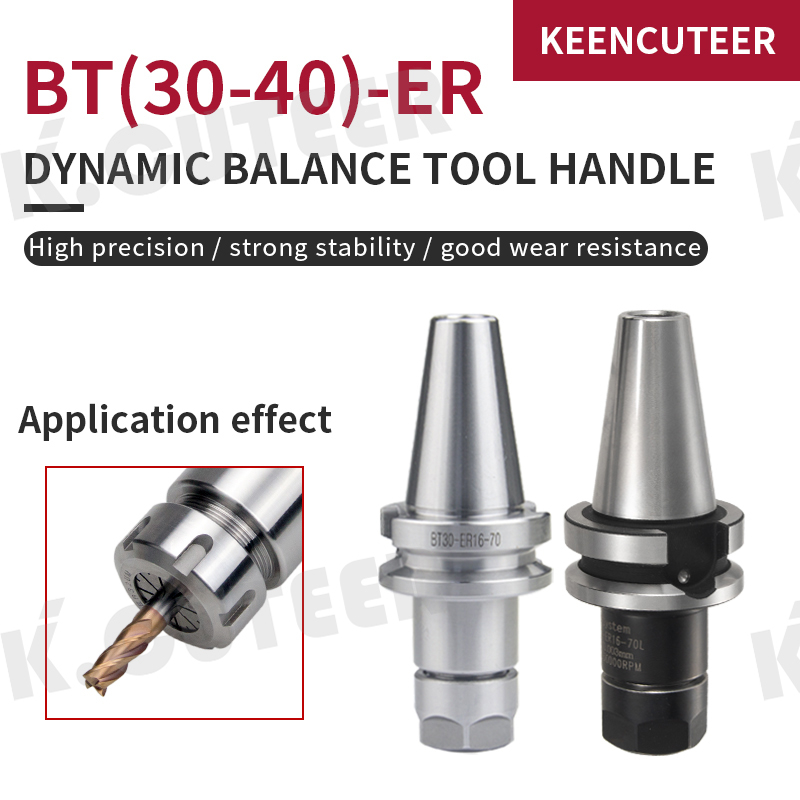

ER Dynamic Balance Toolholder 0.003 High-Precision Milling Tool Holder CNC Machining Center

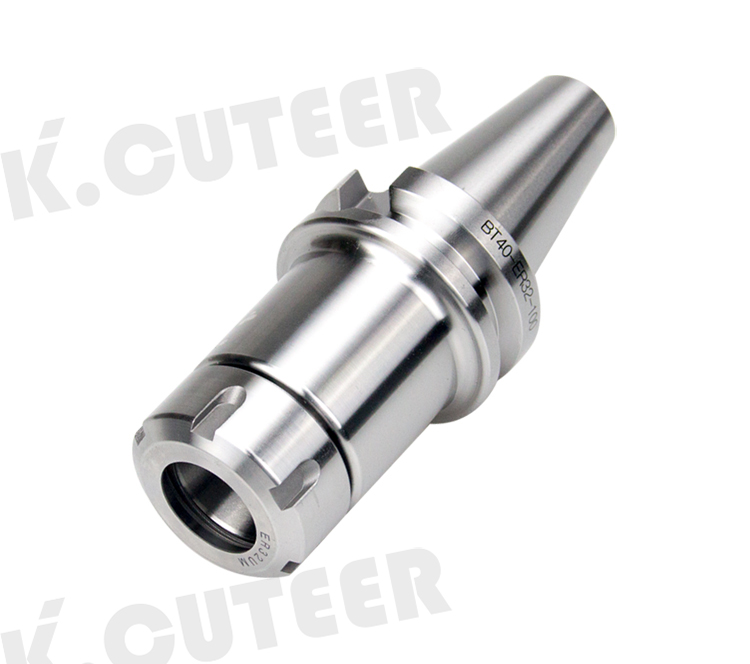

The Dynamic Balance ER Collet Chuck is a high-precision tool designed for high-speed CNC machining. Its optimized dynamic balance performance reduces vibration, enhances cutting stability, and improves surface finish quality.

Availability:

Quantity:



Inquire Add to Basket

Milling Tool Holder CNC Machining Center ER Collet ER Dynamic Balance Toolholder machine Clamping Force

Product Description

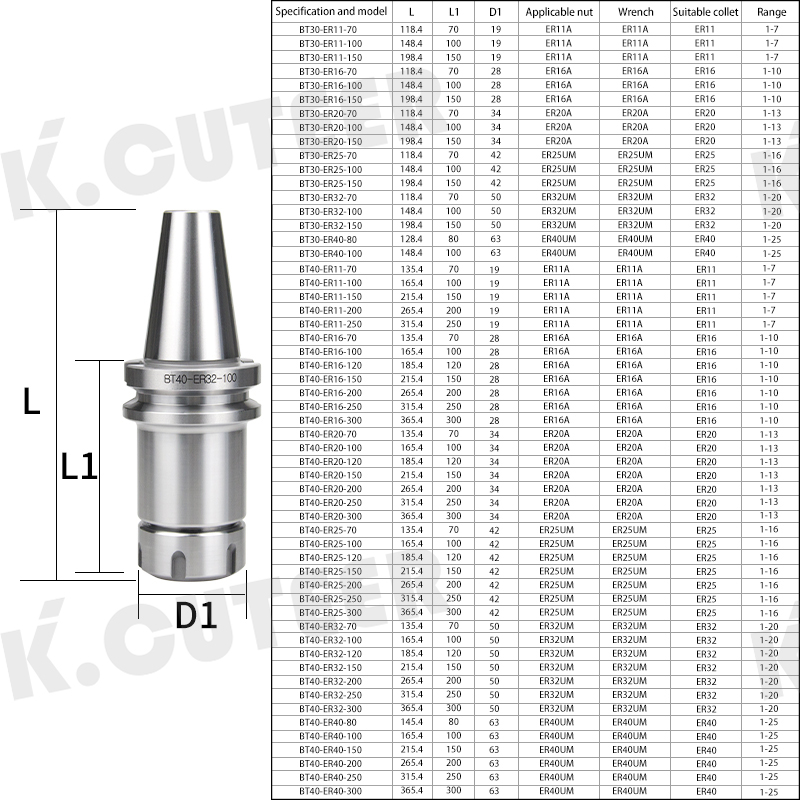

Specification:

Brand:Keencuteer

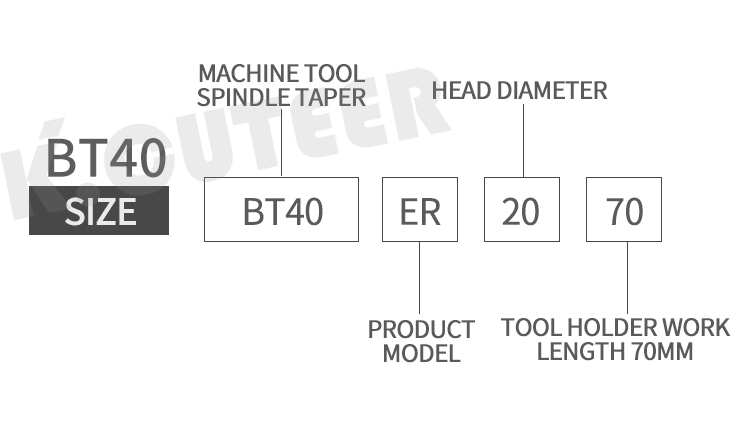

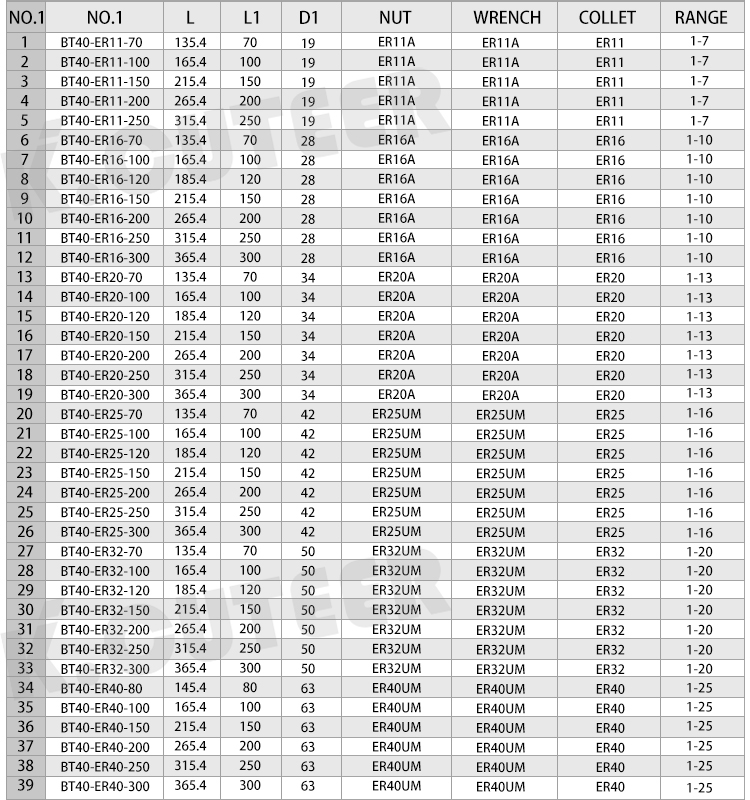

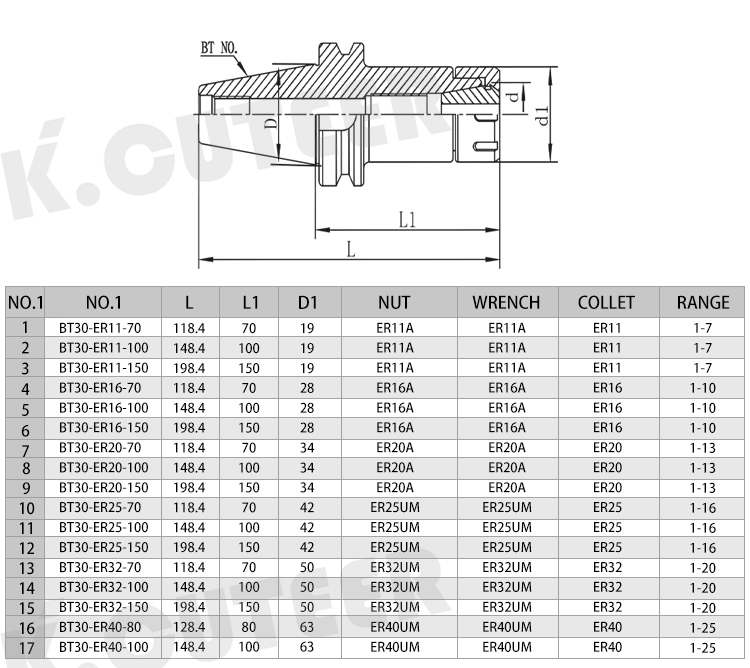

Product specification:BT30/40

Product material: high quality steel 20CrMnTi

Hardness:HRC56°-58

True roundness:<0.8um

Carburization depth:>0.8MM

Overall clamping runout:0.002MM

Recommended speed:below 30000rpm

Feature

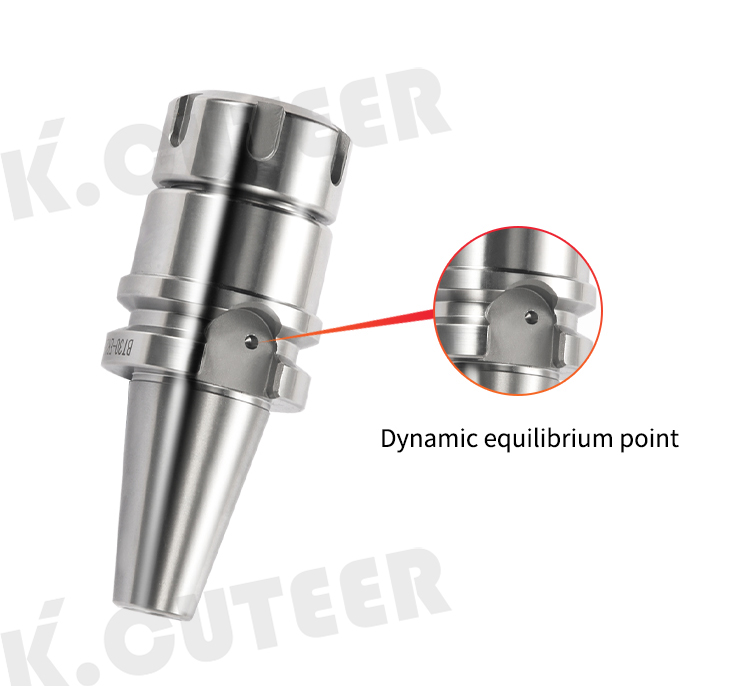

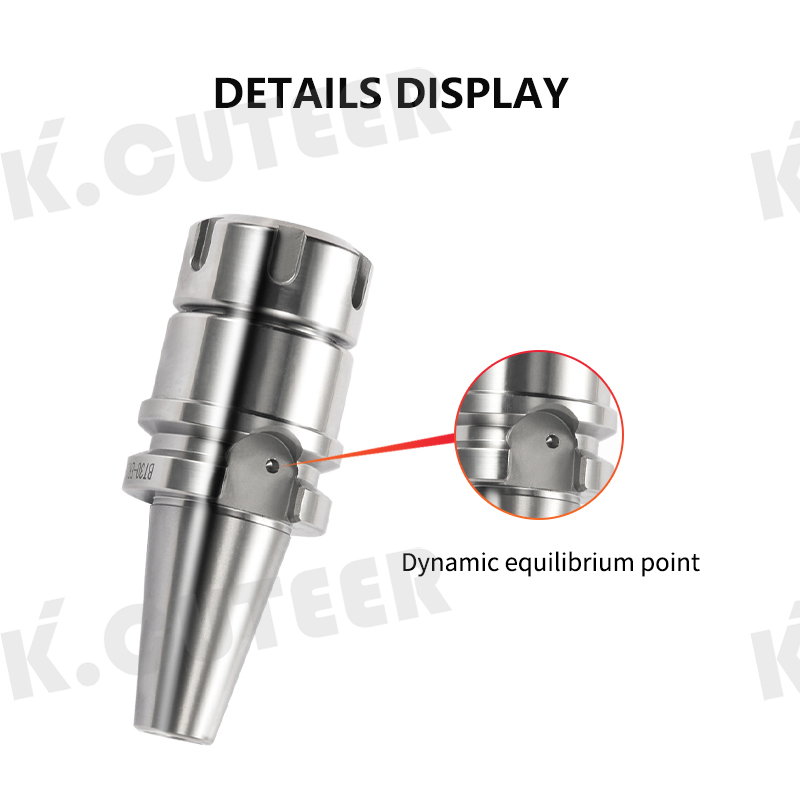

1. Adopt dynamic balance design, high speed, low vibration, high precision, more stable processing at high speed, and effectively improve processing efficiency.

2. Adopt exquisite technology, carburizing first and then quenching, so that the product surface generates a layer of about 0.5-1.0UM film with high surface hardness and high toughness, so that the toolholder can withstand impact loads.

3. 20CRMNTI alloy steel is used, which has high thermal strength and oxygen resistance and good comprehensive mechanical properties.
