Precision Metric Internal Thread Ring Gauge Set for Machining QC Inspection Tools

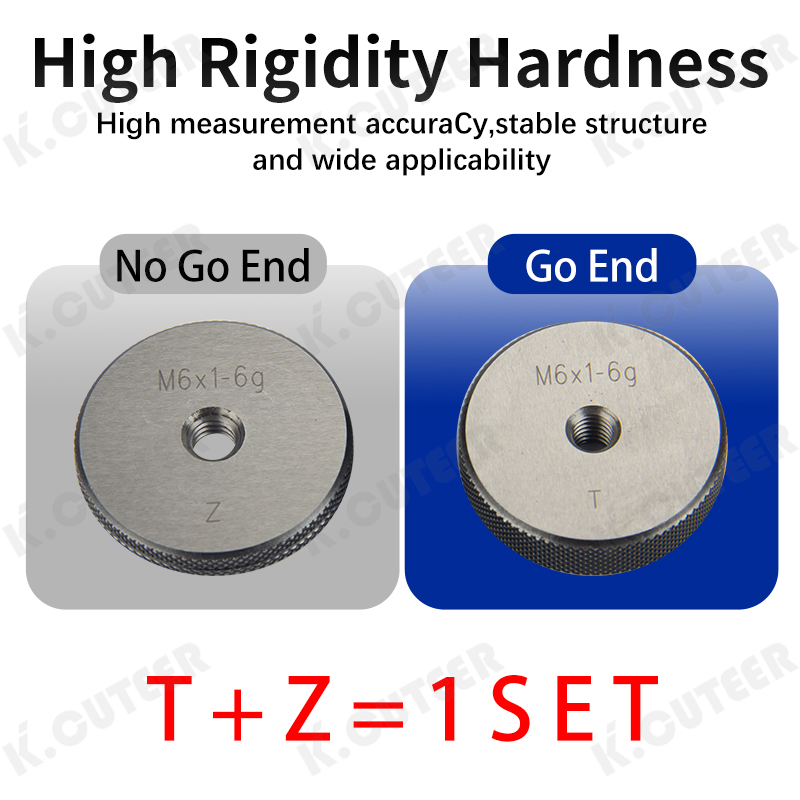

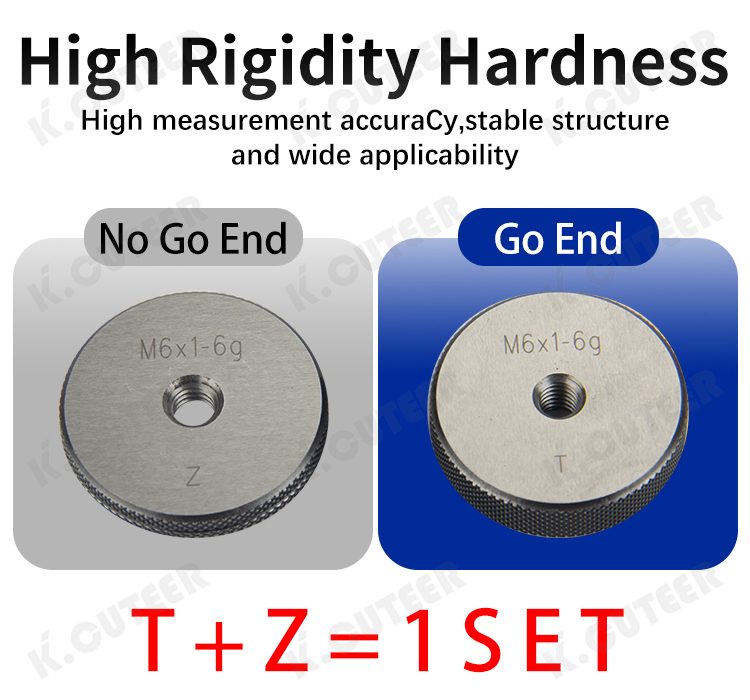

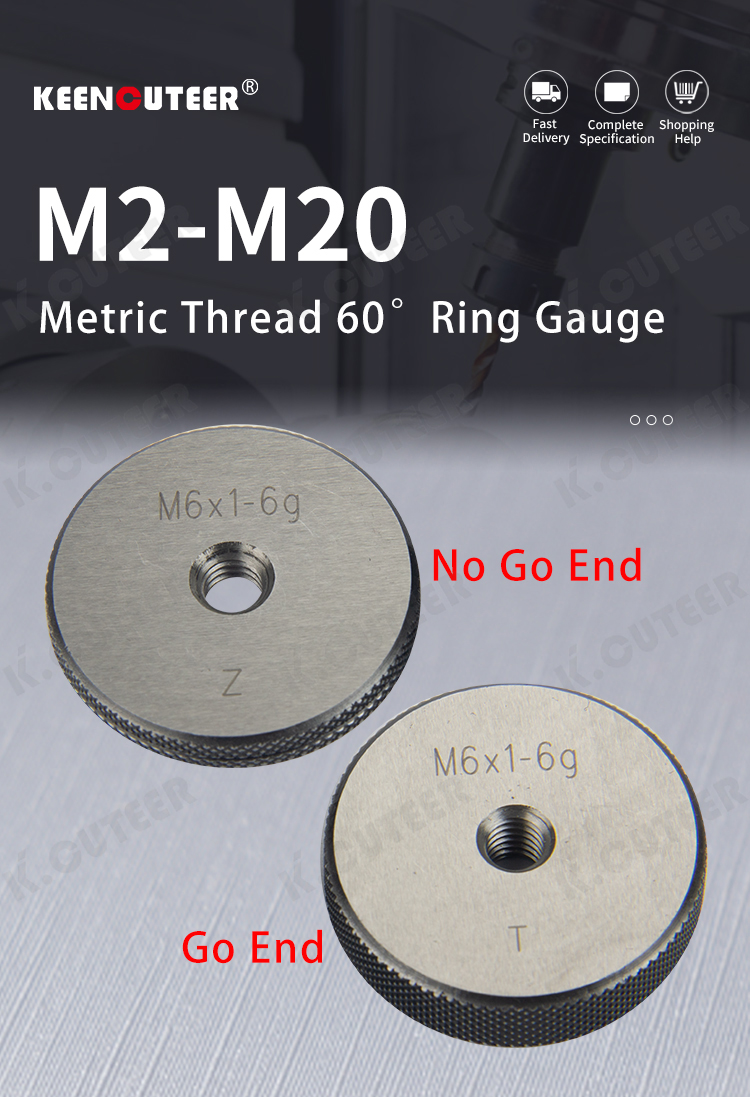

A thread ring gauge is a precision measuring instrument used for the comprehensive inspection of external threaded workpieces to verify if their dimensions and accuracy meet specified standards. It is a ring-shaped tool with a standard internal thread, essentially acting as a "master nut." It utilizes a matched pair of "GO" and "NO GO" gauges to quickly determine the quality of a manufactured thread.

Availability:

Quantity:



Inquire Add to Basket

Gauge Set Thread Plug Gauge Thread Ring Gauge Gauge Thread thread cutting threading Thread Turning CNC threading tool Thread Turning Tool

Product Description

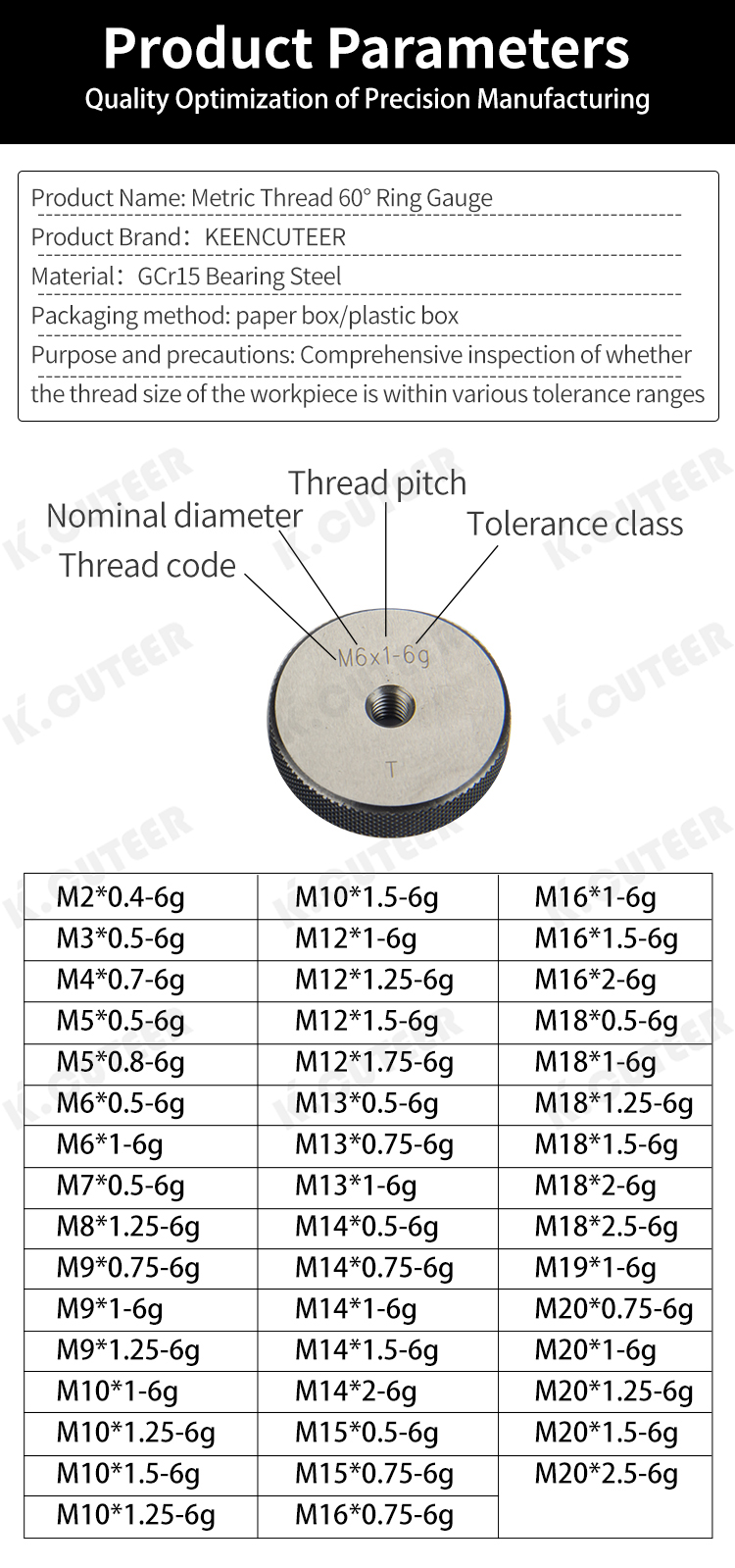

Specification :

Material: GCr15 bearing steel

Type: Measuring tool

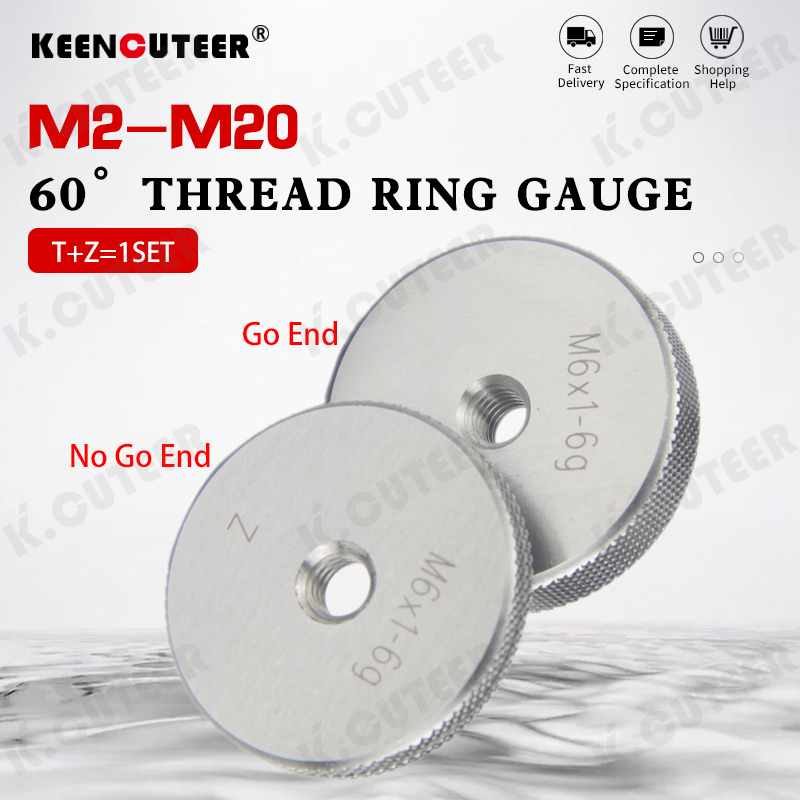

Model： M2-M20

Angle: 60 degrees

Feature :

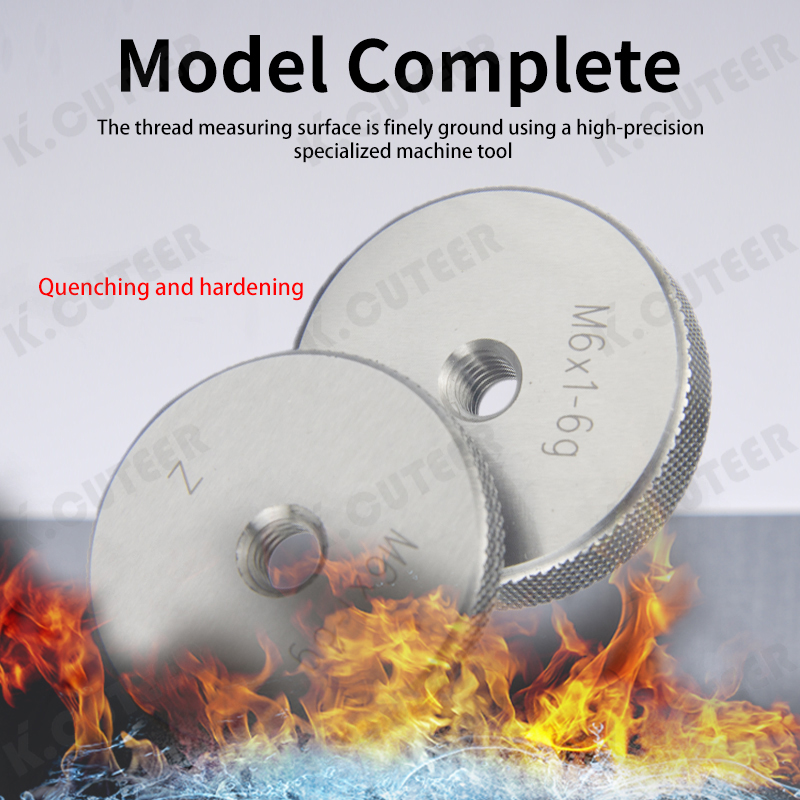

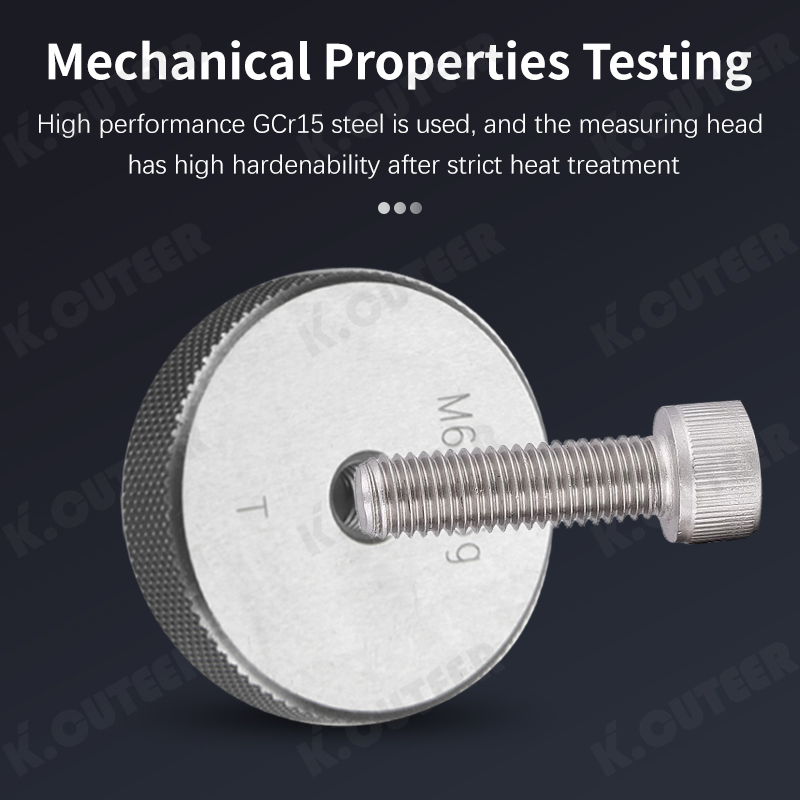

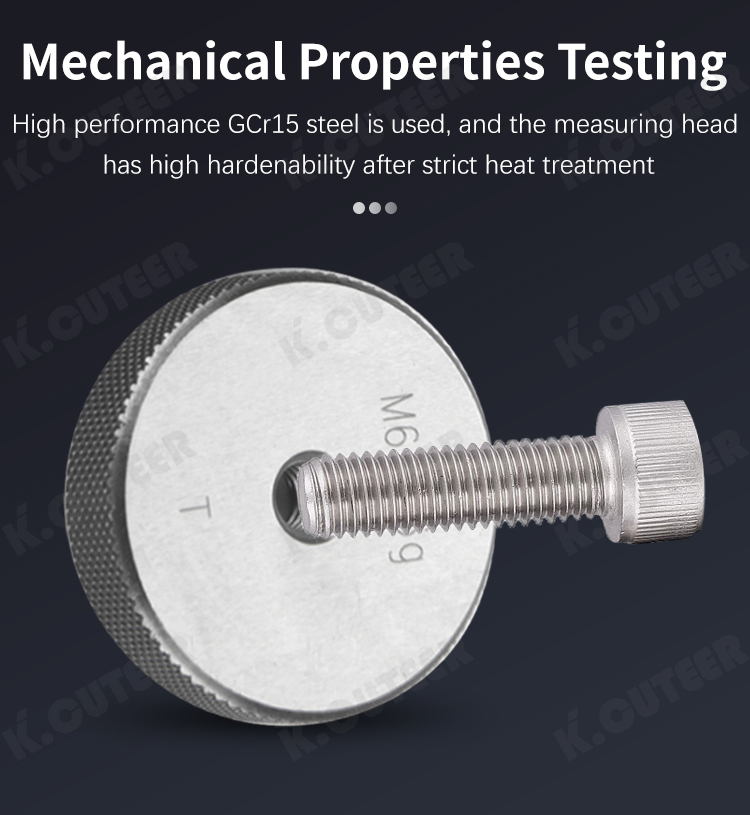

1. Using high-performance Gcr15 steel, which has undergone strict heat treatment, it has higher hardness and fatigue strength

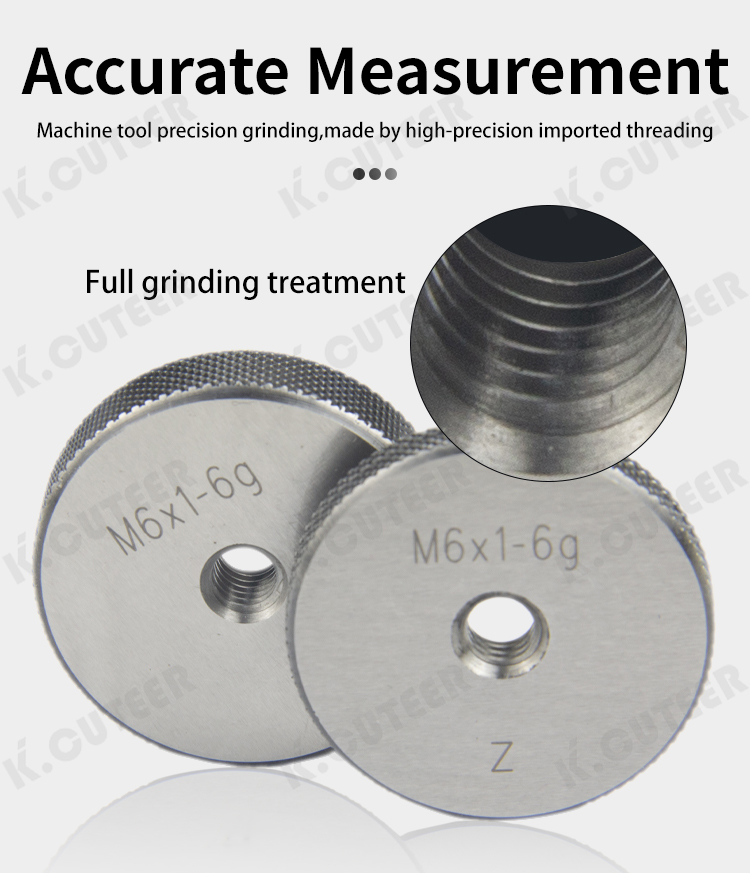

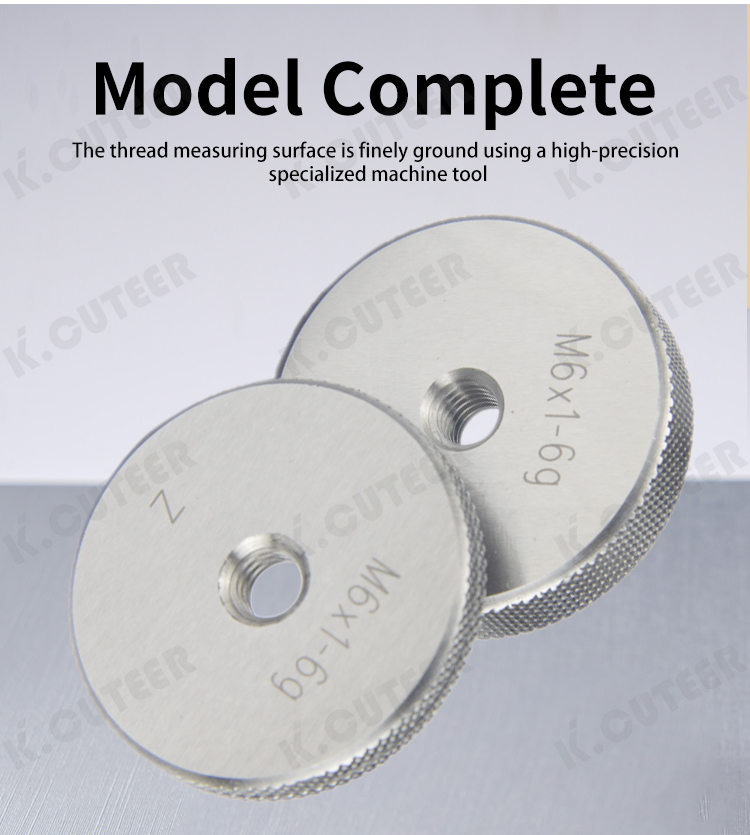

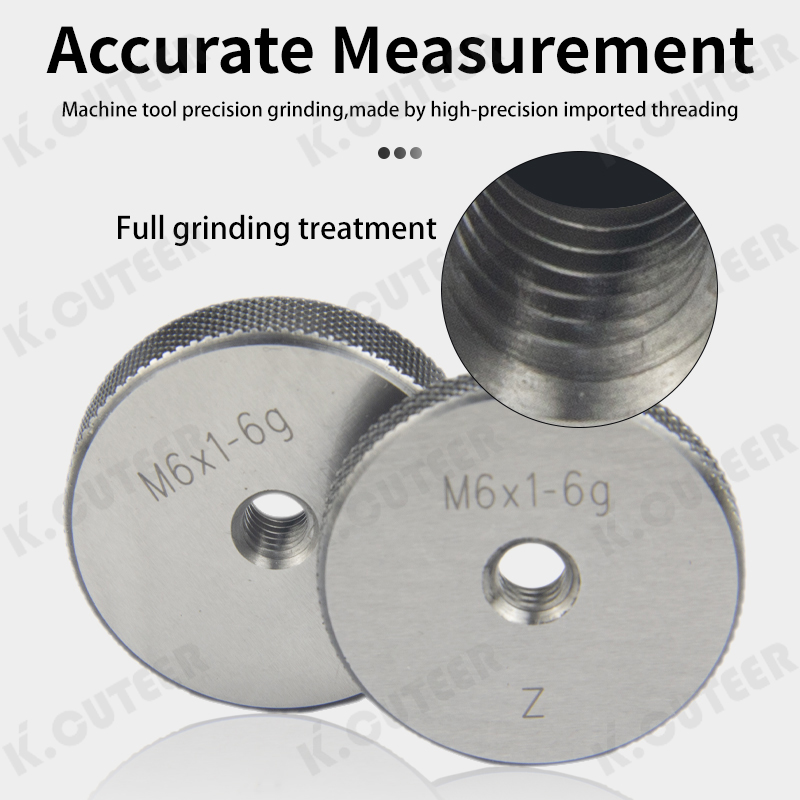

2. It is finely ground using high-precision specialized machine tools and undergoes full inspection by high-precision equipment to ensure accurate measurement

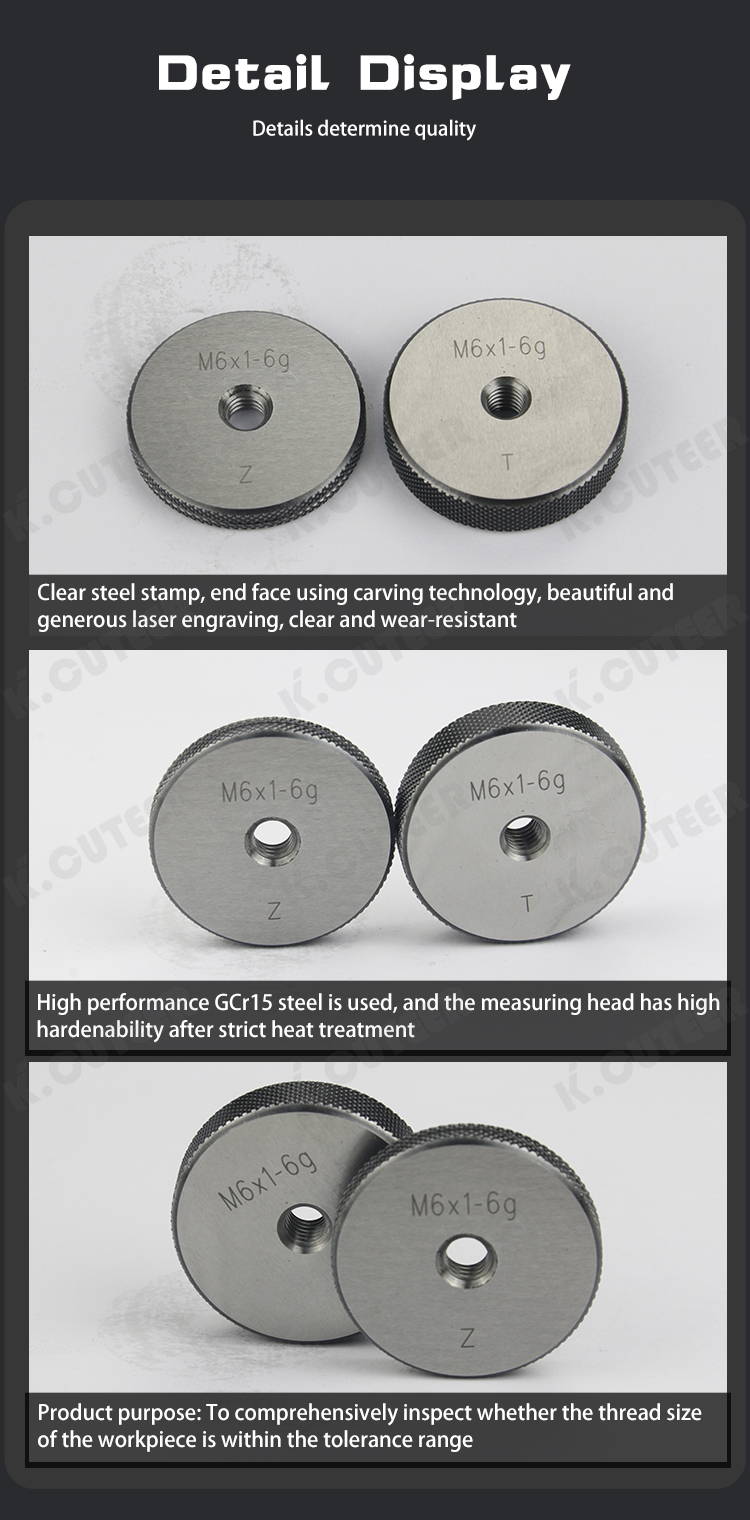

3. The end face adopts carving technology, which is clear, wear-resistant, and more beautiful

4. Conduct a comprehensive inspection to ensure that the thread size of the workpiece is within the tolerance range

详情_01 详情_02 详情_03 详情_04 详情_05 详情_06 详情_07 详情_08
