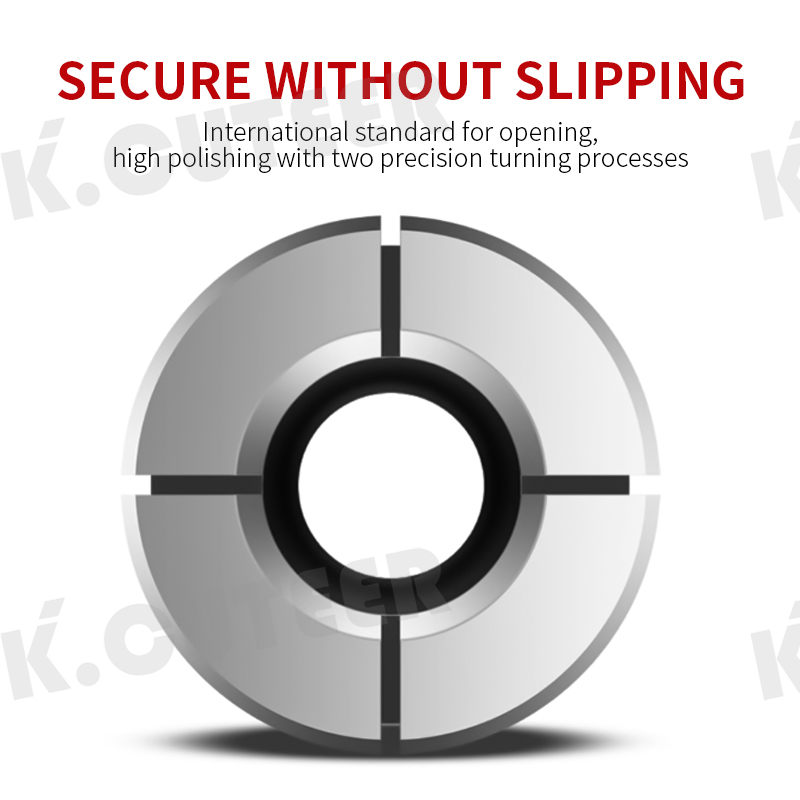

DC Collet Chuck
A DC collet chuck, often referred to as a pull-back collet chuck, is a type of high-precision tool or workpiece holding system used in computer numerical control (CNC) machine tools.

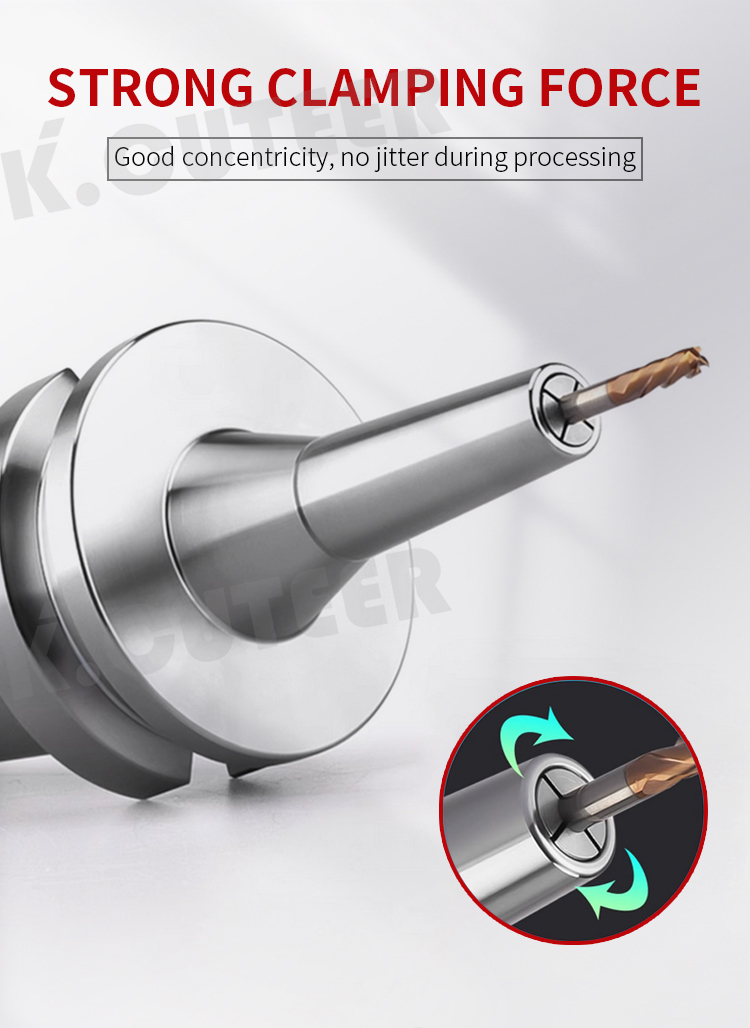

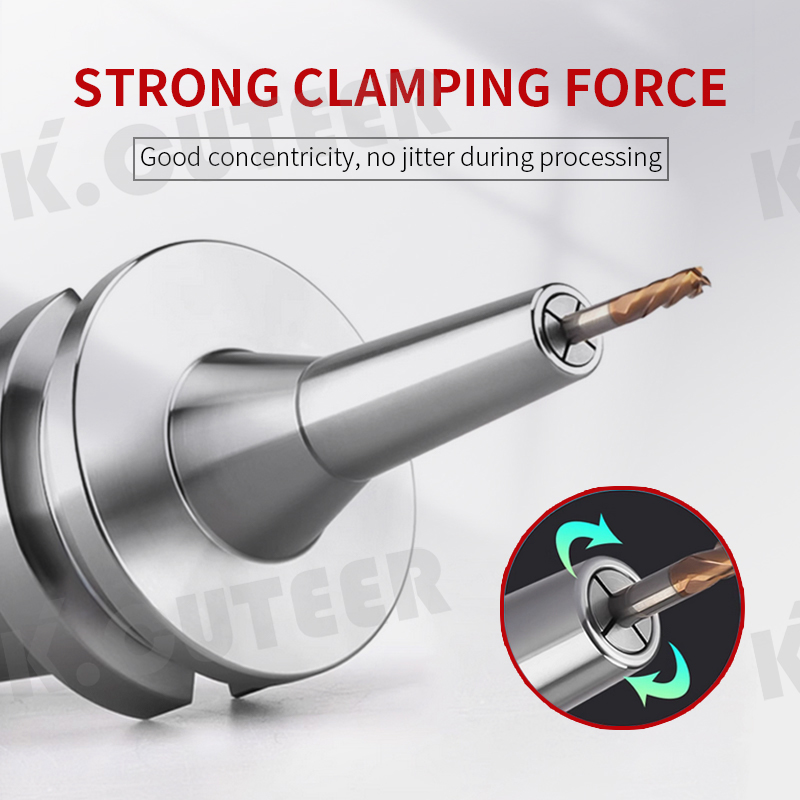

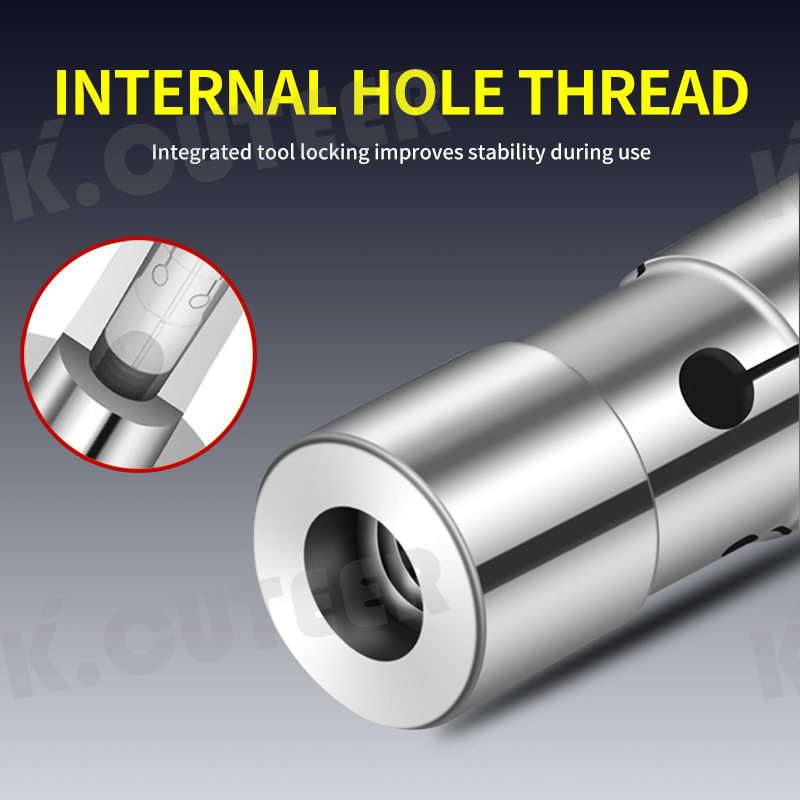

1.Principle & Design: It operates on a pull-back mechanism, where a drawbar or similar component retracts the collet into the tapered housing of the chuck. This action generates a strong and even clamping force, ensuring excellent concentricity and grip.

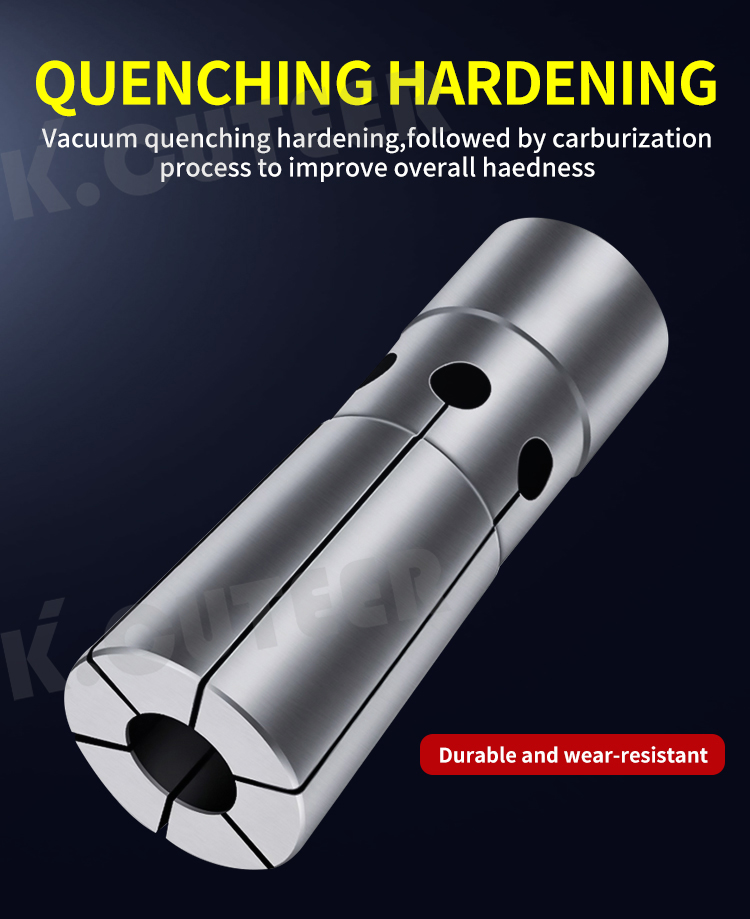

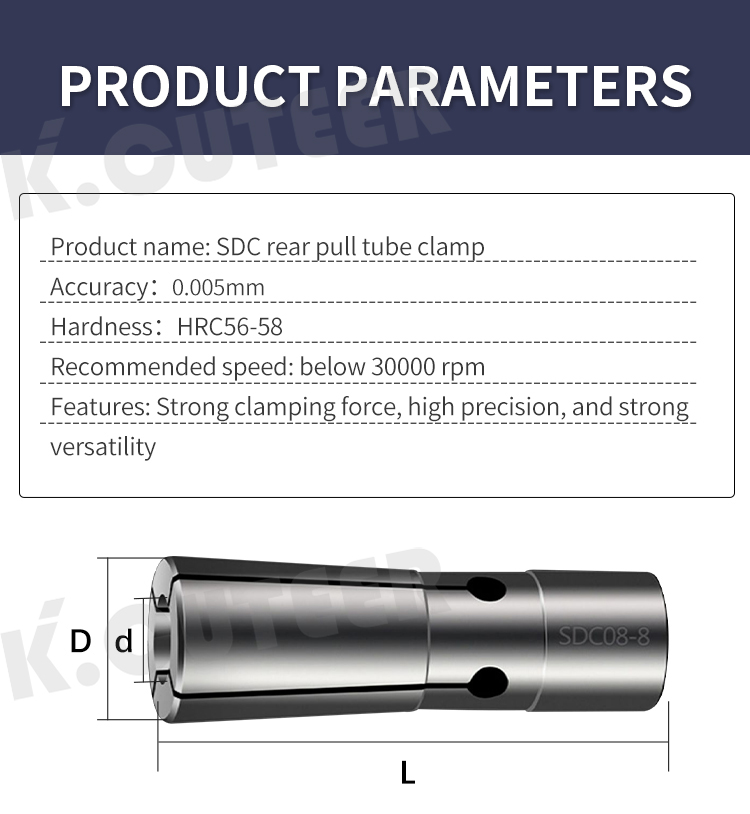

2.Key Feature - UP-Grade Precision: High-precision versions are often designated as UP-Grade series. These models are engineered with superior materials and manufacturing processes to achieve extremely high repeatability, minimal runout, and resistance to deformation, making them suitable for ultra-precise machining tasks.

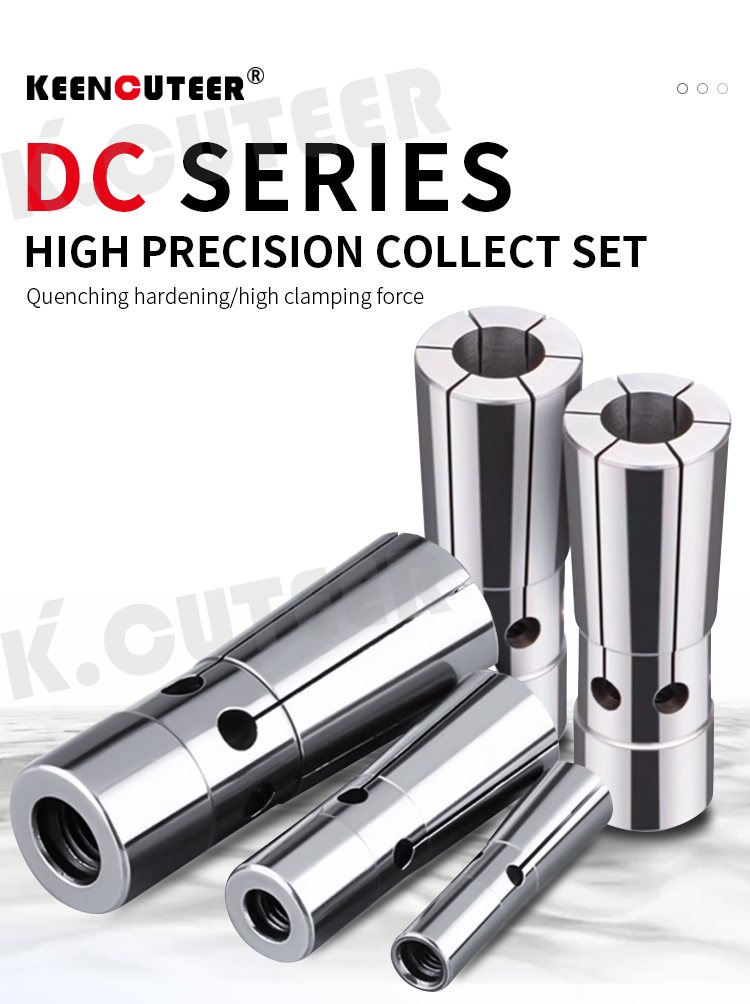

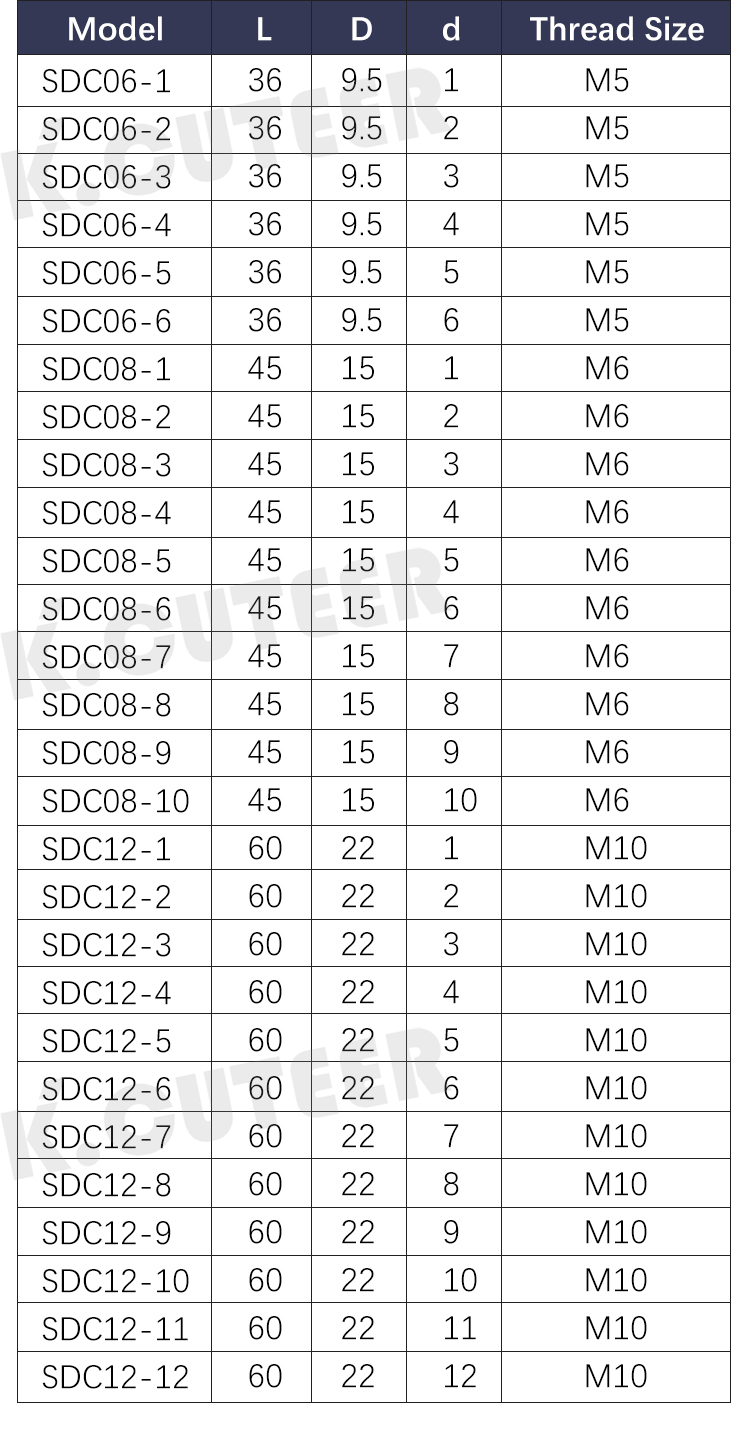

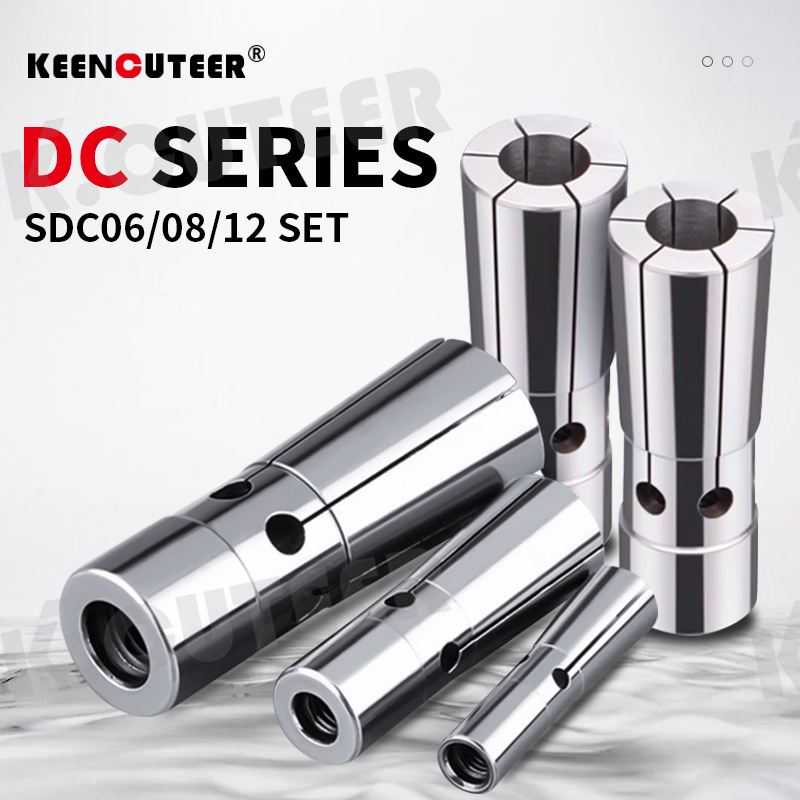

3.Common Sizes: They are typically available in standard sizes designated by their maximum clamping diameter, such as DC04, DC06, DC08, and DC12.
4.Primary Applications: This type of chuck is widely used in industries that demand the highest levels of accuracy, including:
Aerospace component manufacturing
Medical device and surgical instrument production
Precision mold and die making
