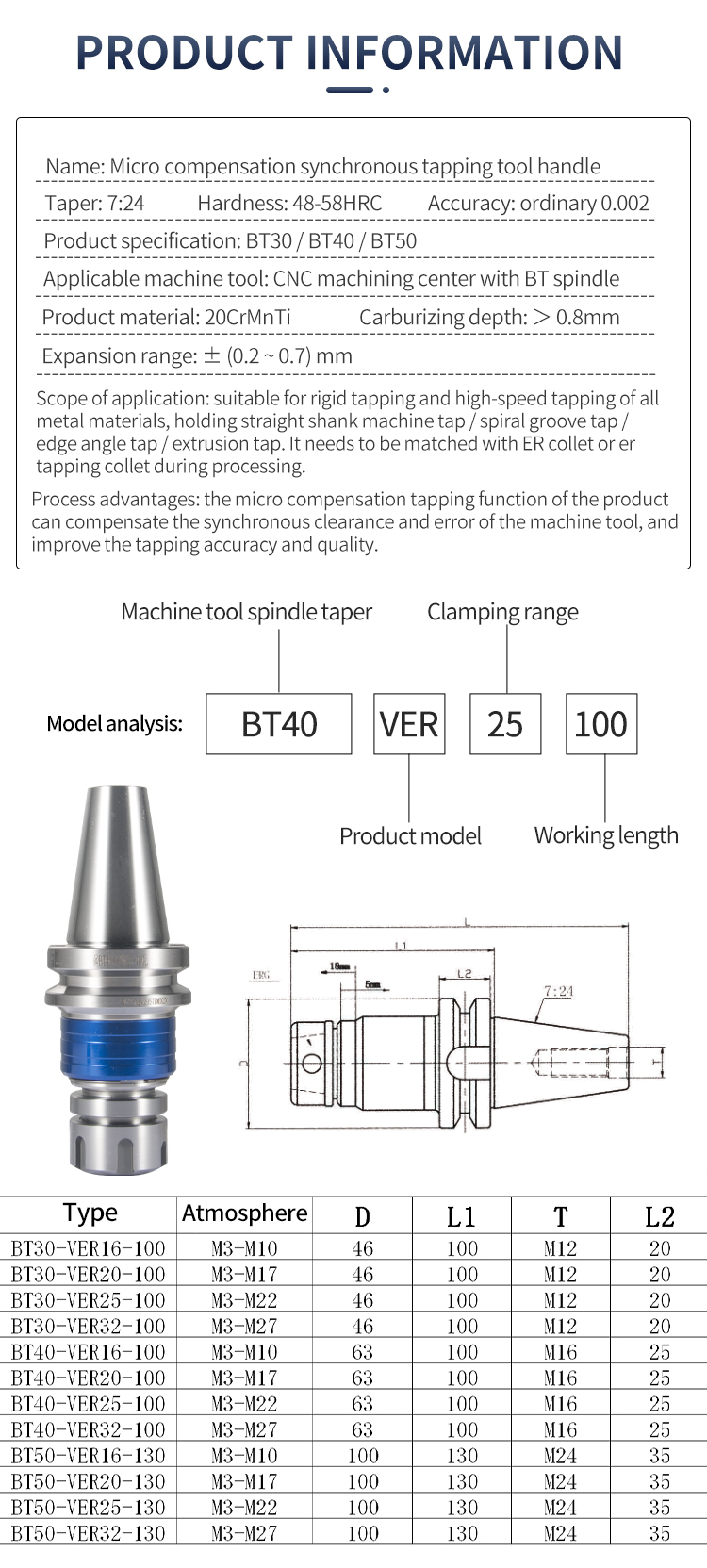

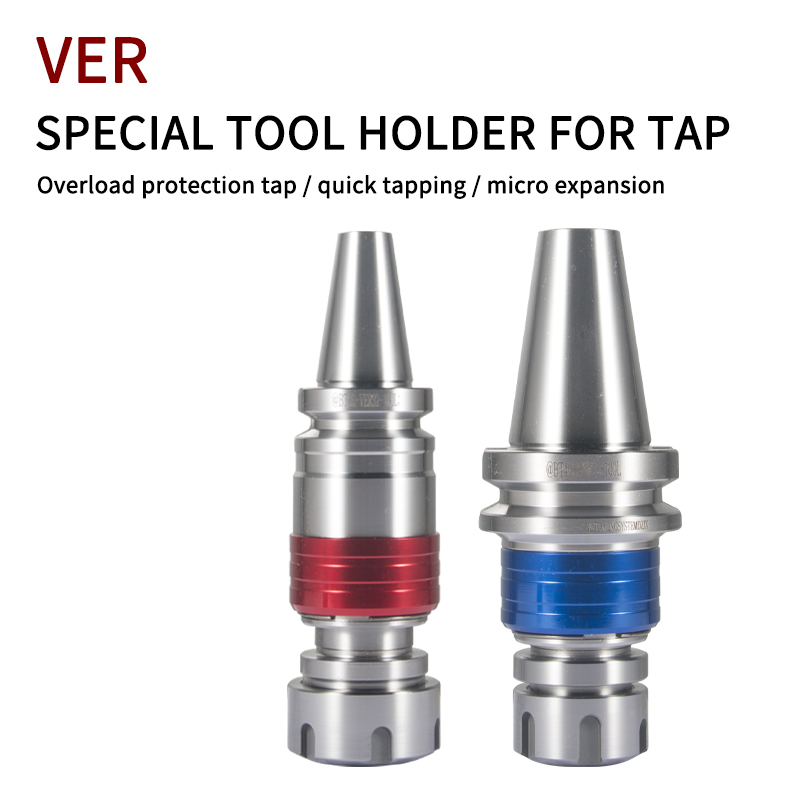

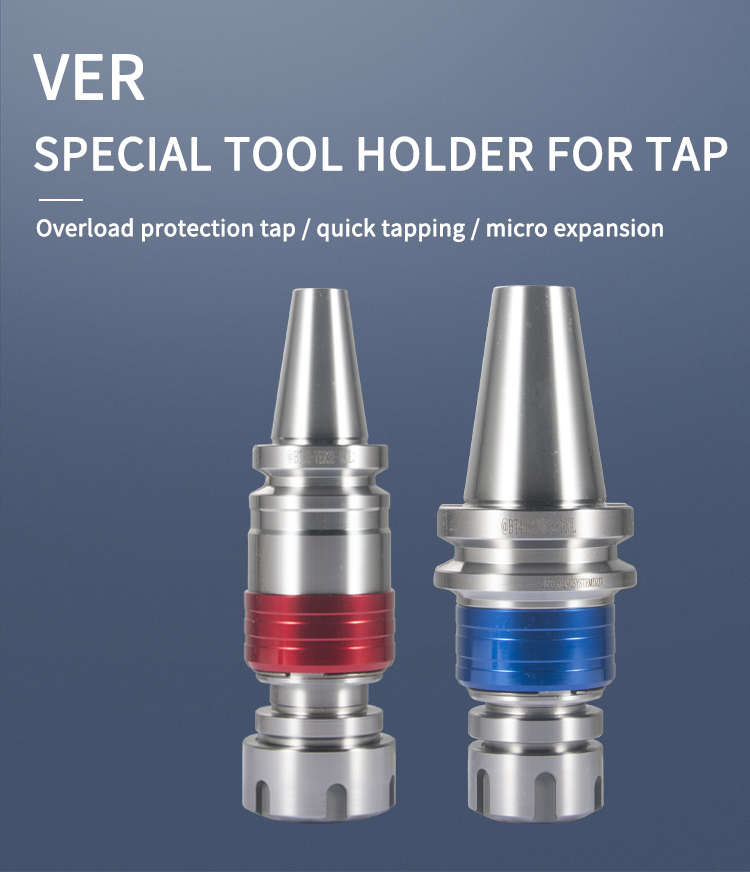

Name: Micro compensation synchronous tapping tool handle
Taper:7:24
Hardness:48-58HRC

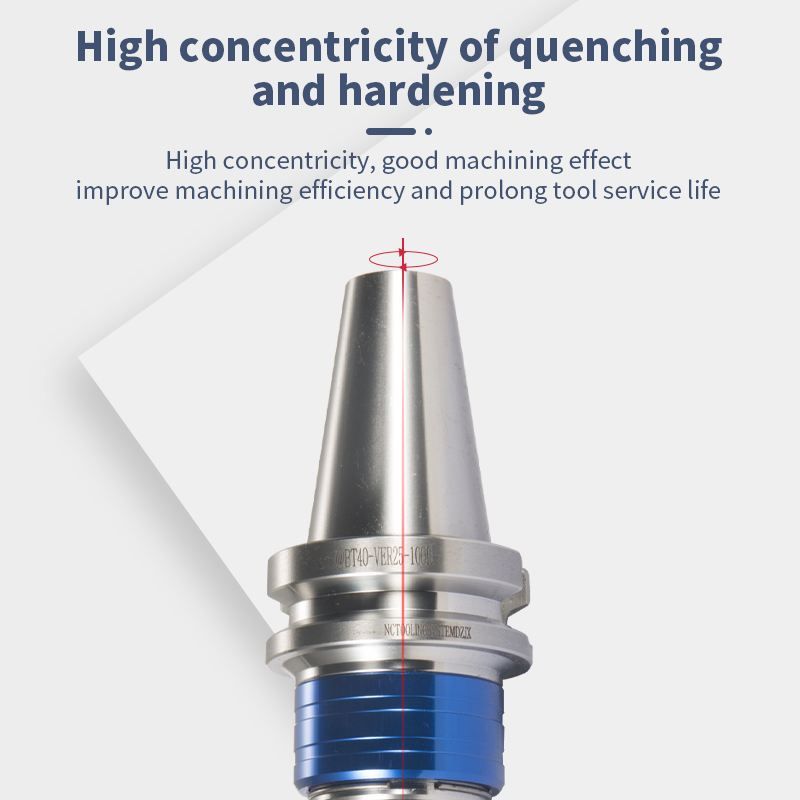

Accuracy: ordinary 0.002
Product specification: BT30/ BT40/ BT50
Applicable machine tool: CNC machining center with BT spindle
Carburizing depth:> 0.8mm
Product material: 20CrMnTi

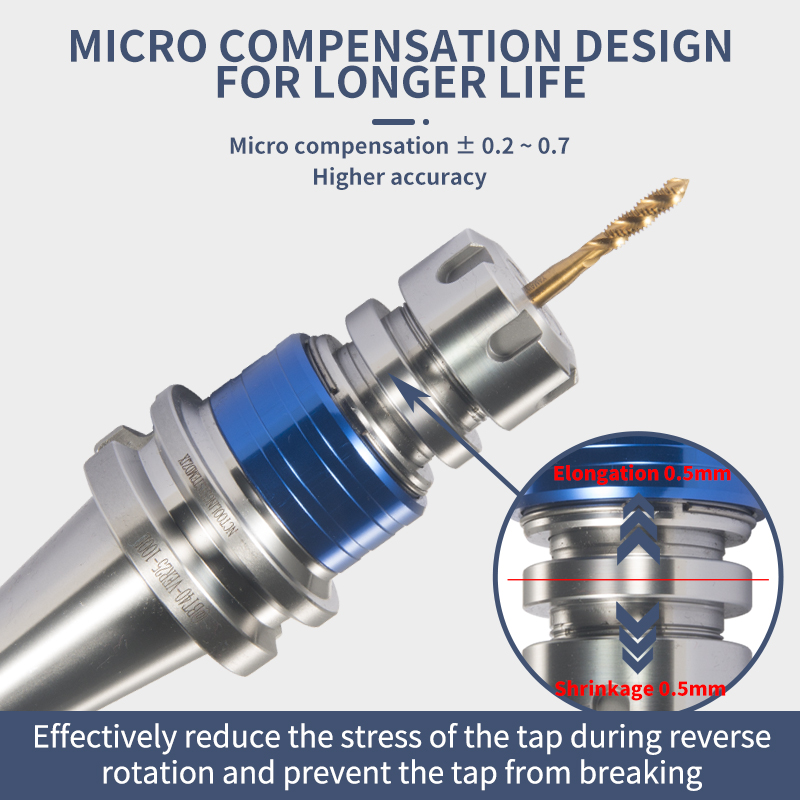

Expansion range: (0.2~0.7)mm

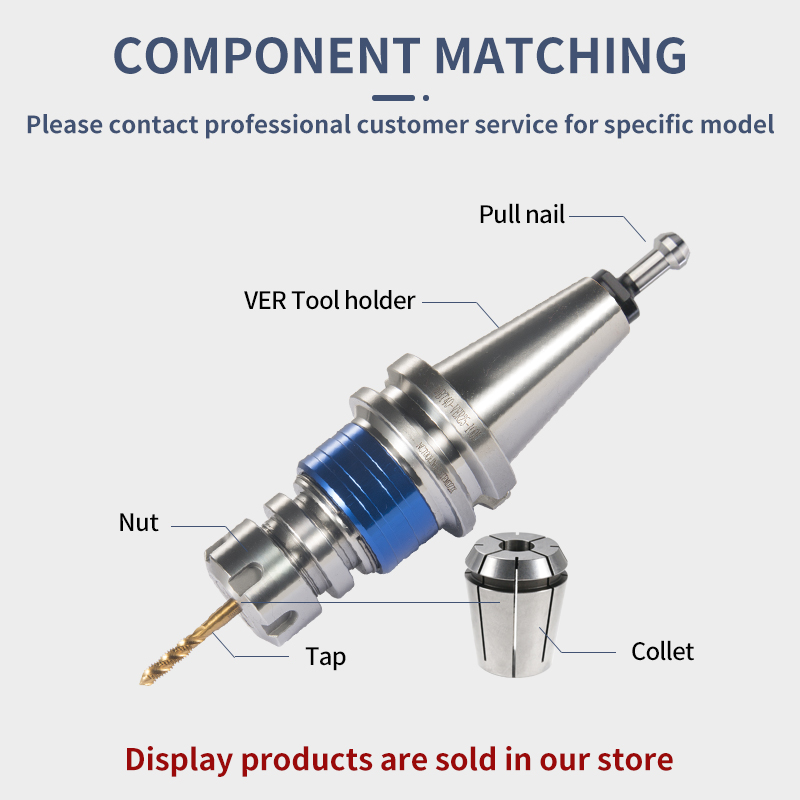

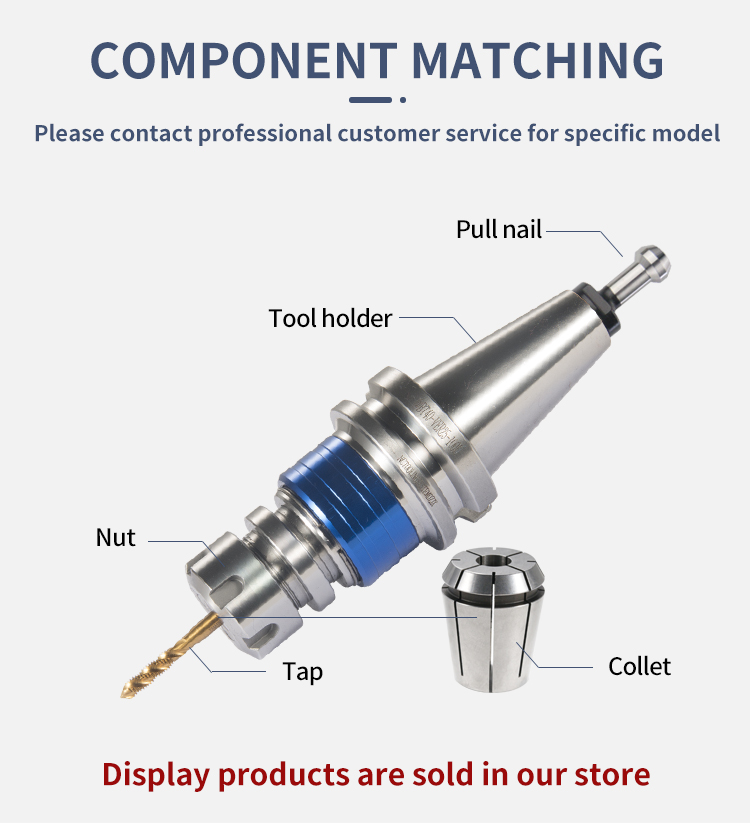

Scope of application: suitable for rigid tapping and high-speed tapping of allmetal materials,holding straight shank machine tap/ spiral groove tap/edge angle tap/extrusion tap. It needs to be matched with ER collet or ertapping collet during processing.

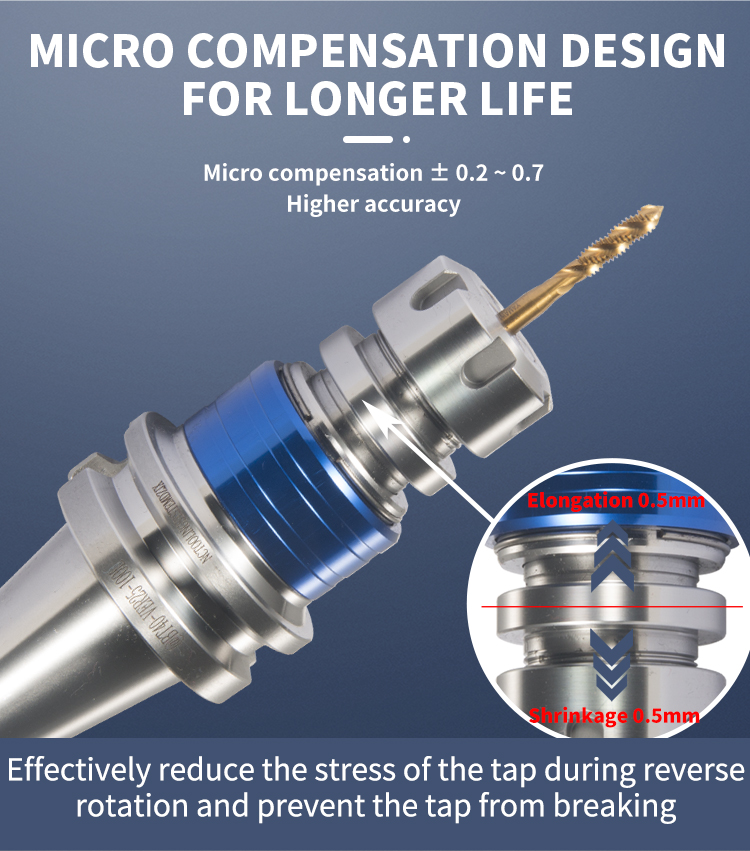

Process advantages: the micro compensation tapping function of the productcan compensate the synchronous clearance and error of the machine tool, andimprove the tapping accuracy and quality.
